Quality Inspection Report of 2DXHC13-10 Two Dimensional Helmholtz Coil

Home  ꄲ  Dexinmag News  ꄲ  Helmholtz Coil  ꄲ  Quality Inspection Report of 2DXHC13-10 Two Dimensional Helmholtz Coil

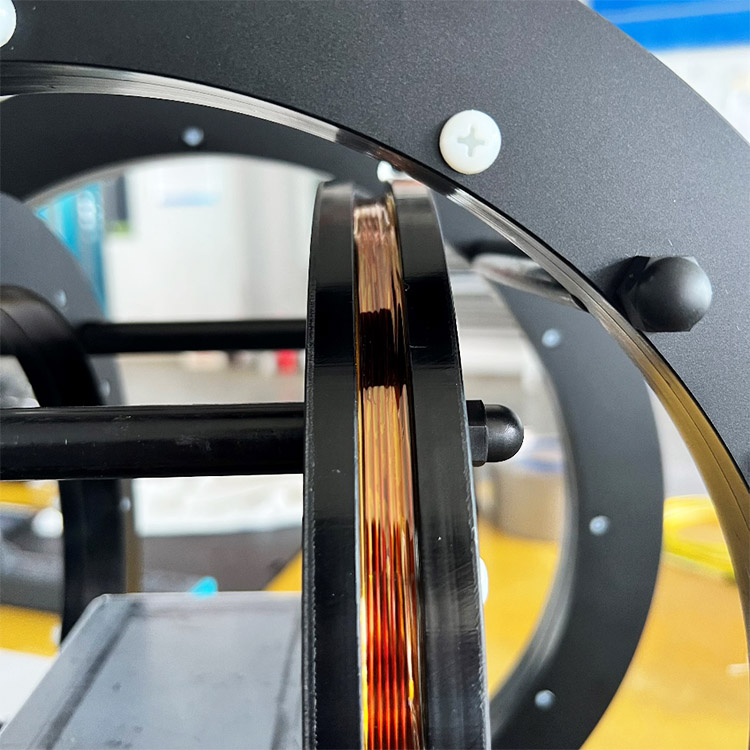

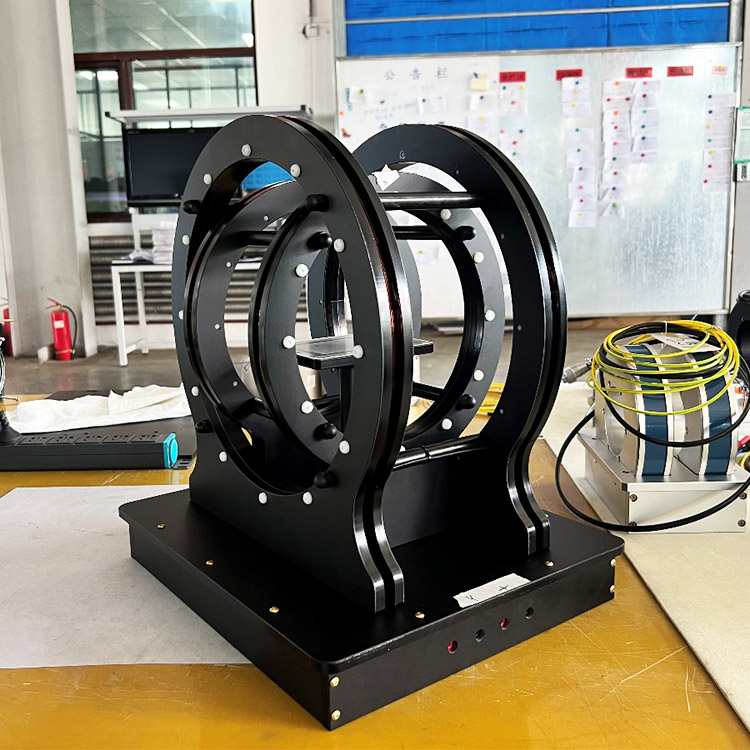

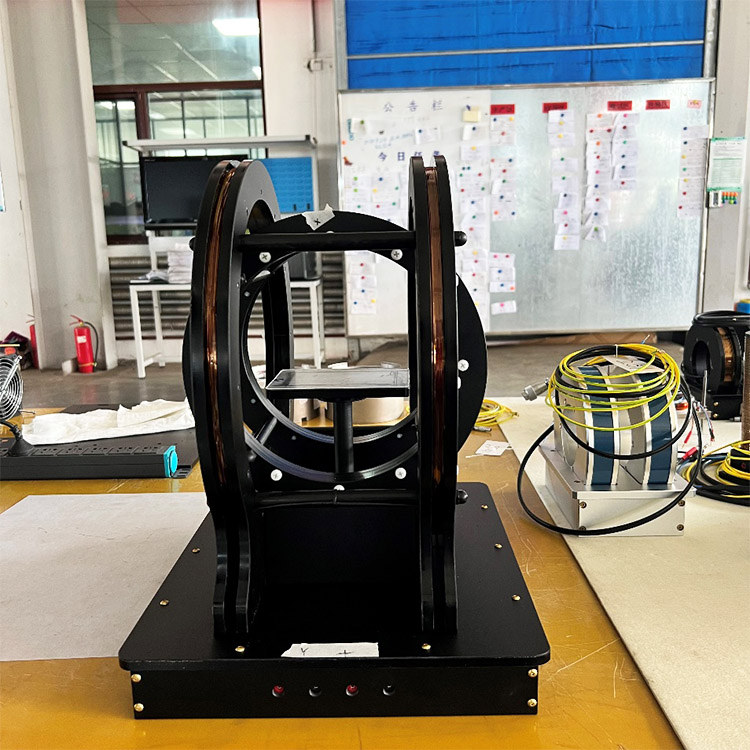

2DXHC13-10 Two Dimensional Helmholtz Coil 2DXHC13-10 Two Dimensional Helmholtz Coil 2DXHC13-10 Two Dimensional Helmholtz Coil

Overall Dimensions: 420mm(L) x 350mm(W) x 460mm(H)
Coil spacing
X Axial: 100mm
Y Axial: 145mm
Weight: 10.79kg



Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
Two-dimensional Helmholtz coil		 Product model: 2DXHC13-10
Test time: July 21, 2023
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
30.0℃ 30.0℃ 3m 0~30000nT
Table 1 Measurement environment data

Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
No. Display current (A) Display voltage Voltage (V) Magnetic field
strength（Gs）
X axial(AC) 3(5Hz) 6 11.8
X axial(AC) 3(40Hz) 7 11.7
X axial(AC) 3(50Hz) 7 11.7
Y axial(AC) 3(5Hz) 10 11.8
Y axial(AC) 3(40Hz) 12 11.7
Y axial(AC) 3(50Hz) 14 11.7
Table 2 Magnetic field strength data
　
Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
No. Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
X axial 30.0℃ 1.600Ω 1.530Ω 1.987Ω
Y axial 30.0℃ 2.760Ω 2.639Ω 3.428Ω
Table 3 Resistance R data

X-axis inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 4.09104m 88.6  4.10908m 29.8
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
1.68823 20 25.7877  1.00000k
Table 4 X-axis inductance Ls, reactance Z data

X-axis inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  4.10309m 1.68823 102 514.9  4.09617m 13.3508
2 24.9  4.09699m 1.73025 103 519.8  4.09621m 13.4761
3 29.8  4.10908m 1.78164 104 524.7  4.09621m 13.6013
4 34.7  4.10779m 1.8392 105 529.6  4.09625m 13.7267
5 39.6  4.10637m 1.90354 106 534.5  4.09627m 13.852
6 44.5  4.10412m 1.97383 107 539.4  4.09628m 13.9773
7 49.4  4.09248m 2.04704 108 544.3  4.09615m 14.102
8 54.3  4.10242m 2.13056 109 549.2  4.09614m 14.2273
9 59.2  4.10237m 2.21528 110 554.1  4.09609m 14.3525
10 64.1  4.10260m 2.30409 111 559  4.09608m 14.4778
11 69  4.10155m 2.39592 112 563.9  4.09603m 14.6029
12 73.9  4.10075m 2.49077 113 568.8  4.09607m 14.7284
13 78.8  4.09892m 2.58803 114 573.7  4.09604m 14.8537
14 83.7  4.09372m 2.68591 115 578.6  4.09599m 14.9789
15 88.6  4.09104m 2.78689 116 583.5  4.09599m 15.1043
16 93.5  4.09245m 2.89164 117 588.4  4.09595m 15.2296
17 98.4  4.09960m 3.00058 118 593.3  4.09594m 15.355
18 103.3  4.09940m 3.1078 119 598.2  4.09594m 15.4804
19 108.2  4.09917m 3.21644 120 603.1  4.09593m 15.6058
20 113.1  4.09904m 3.32641 121 608  4.09590m 15.7312
21 118  4.09890m 3.43742 122 612.9  4.09590m 15.8567
22 122.9  4.09842m 3.54915 123 617.8  4.09589m 15.9821
23 127.8  4.09735m 3.66119 124 622.7  4.09589m 16.1076
24 132.7  4.09544m 3.77347 125 627.6  4.09588m 16.2331
25 137.6  4.09316m 3.88616 126 632.5  4.09584m 16.3584
26 142.5  4.09172m 4.00013 127 637.4  4.09584m 16.484
27 147.4  4.09145m 4.11562 128 642.3  4.09582m 16.6094
28 152.3  4.09212m 4.2328 129 647.2  4.09581m 16.7349
29 157.2  4.09398m 4.35142 130 652.1  4.09581m 16.8604
30 162.1  4.09561m 4.47037 131 657  4.09581m 16.986
31 167  4.09633m 4.589 132 661.9  4.09580m 17.1115
32 171.9  4.09735m 4.70808 133 666.8  4.09578m 17.237
33 176.8  4.09727m 4.82685 134 671.7  4.09577m 17.3625
34 181.7  4.09728m 4.94604 135 676.6  4.09577m 17.4881
35 186.6  4.09727m 5.06557 136 681.5  4.09578m 17.6137
36 191.5  4.09721m 5.18535 137 686.4  4.09579m 17.7394
37 196.4  4.09710m 5.30537 138 691.3  4.09579m 17.865
38 201.3  4.09709m 5.42576 139 696.2  4.09578m 17.9906
39 206.2  4.09684m 5.54604 140 701.1  4.09575m 18.1161
40 211.1  4.09657m 5.66653 141 706  4.09578m 18.2418
41 216  4.09610m 5.78701 142 710.9  4.09576m 18.3674
42 220.9  4.09553m 5.90752 143 715.8  4.09578m 18.4931
43 225.8  4.09482m 6.02801 144 720.7  4.09577m 18.6187
44 230.7  4.09399m 6.14849 145 725.6  4.09577m 18.7443
45 235.6  4.09341m 6.26942 146 730.5  4.09578m 18.87
46 240.5  4.09291m 6.3907 147 735.4  4.09579m 18.9958
47 245.4  4.09281m 6.51265 148 740.3  4.09580m 19.1215
48 250.3  4.09321m 6.63557 149 745.2  4.09578m 19.247
49 255.2  4.09352m 6.7585 150 750.1  4.09580m 19.3728
50 260.1  4.09422m 6.88221 151 755  4.09579m 19.4984
51 265  4.09491m 7.00602 152 759.9  4.09582m 19.6243
52 269.9  4.09572m 7.13016 153 764.8  4.09578m 19.7498
53 274.8  4.09648m 7.25436 154 769.7  4.09579m 19.8755
54 279.7  4.09706m 7.37841 155 774.6  4.09581m 20.0013
55 284.6  4.09744m 7.50224 156 779.5  4.09582m 20.1271
56 289.5  4.09757m 7.62575 157 784.4  4.09582m 20.2528
57 294.4  4.09753m 7.74906 158 789.3  4.09583m 20.3786
58 299.3  4.09738m 7.87227 159 794.2  4.09586m 20.5044
59 304.2  4.09711m 7.99502 160 799.1  4.09585m 20.6301
60 309.1  4.09700m 8.11844 161 804  4.09585m 20.7558
61 314  4.09694m 8.242 162 808.9  4.09587m 20.8816
62 318.9  4.09683m 8.36554 163 813.8  4.09587m 21.0074
63 323.8  4.09677m 8.48926 164 818.7  4.09586m 21.1331
64 328.7  4.09666m 8.61293 165 823.6  4.09590m 21.259
65 333.6  4.09658m 8.73673 166 828.5  4.09587m 21.3847
66 338.5  4.09649m 8.86056 167 833.4  4.09590m 21.5105
67 343.4  4.09645m 8.98455 168 838.3  4.09591m 21.6364
68 348.3  4.09638m 9.10852 169 843.2  4.09590m 21.7621
69 353.2  4.09630m 9.23254 170 848.1  4.09591m 21.8879
70 358.1  4.09625m 9.35668 171 853  4.09592m 22.0138
71 363  4.09619m 9.48082 172 857.9  4.09595m 22.1397
72 367.9  4.09612m 9.60501 173 862.8  4.09596m 22.2655
73 372.8  4.09606m 9.72925 174 867.7  4.09594m 22.3912
74 377.7  4.09599m 9.8535 175 872.6  4.09594m 22.517
75 382.6  4.09629m 9.97853 176 877.5  4.09597m 22.643
76 387.5  4.09623m 10.1029 177 882.4  4.09597m 22.7688
77 392.4  4.09617m 10.2274 178 887.3  4.09599m 22.8947
78 397.3  4.09614m 10.3519 179 892.2  4.09599m 23.0205
79 402.2  4.09609m 10.4764 180 897.1  4.09600m 23.1463
80 407.1  4.09607m 10.601 181 902  4.09600m 23.2722
81 412  4.09600m 10.7255 182 906.9  4.09600m 23.398
82 416.9  4.09596m 10.8502 183 911.8  4.09598m 23.5237
83 421.8  4.09591m 10.9748 184 916.7  4.09598m 23.6495
84 426.7  4.09591m 11.0996 185 921.6  4.09600m 23.7755
85 431.6  4.09584m 11.2242 186 926.5  4.09598m 23.9012
86 436.5  4.09584m 11.3491 187 931.4  4.09600m 24.0271
87 441.4  4.09580m 11.4738 188 936.3  4.09597m 24.1528
88 446.3  4.09583m 11.5988 189 941.2  4.09598m 24.2787
89 451.2  4.09576m 11.7236 190 946.1  4.09600m 24.4046
90 456.1  4.09573m 11.8484 191 951  4.09601m 24.5305
91 461  4.09571m 11.9733 192 955.9  4.09599m 24.6563
92 465.9  4.09573m 12.0984 193 960.8  4.09581m 24.7812
93 470.8  4.09574m 12.2234 194 965.7  4.09581m 24.907
94 475.7  4.09578m 12.3486 195 970.6  4.09580m 25.0328
95 480.6  4.09584m 12.4738 196 975.5  4.09580m 25.1587
96 485.5  4.09587m 12.599 197 980.4  4.09582m 25.2846
97 490.4  4.09589m 12.7241 198 985.3  4.09578m 25.4102
98 495.3  4.09596m 12.8495 199 990.2  4.09578m 25.5361
99 500.2  4.09606m 12.9749 200 995.1  4.09579m 25.662
100 505.1  4.09610m 13.1002 201  1.00000k  4.09575m 25.7877
101 510  4.09614m 13.2255 　 　 　 　
Table 5 X-axis Detailed frequency data of inductance Ls and reactance Z
　
Y-axis inductance Ls, reactance Z measurement
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 10.1460m  1.00000k  10.2003m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
3.05122 20 63.8159  1.00000k
Table 6 Y-axis inductance Ls, reactance Z data

Y-axis inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  10.2003m 3.05122 102 514.9  10.1481m 32.9525
2 24.9  10.1827m 3.1952 103 519.8  10.1481m 33.2639
3 29.8  10.1960m 3.36433 104 524.7  10.1480m 33.575
4 34.7  10.1906m 3.55187 105 529.6  10.1480m 33.8863
5 39.6  10.1885m 3.75601 106 534.5  10.1480m 34.1977
6 44.5  10.1845m 3.9731 107 539.4  10.1479m 34.5089
7 49.4  10.1667m 4.19995 108 544.3  10.1476m 34.8195
8 54.3  10.1800m 4.44395 109 549.2  10.1477m 35.1312
9 59.2  10.1801m 4.69193 110 554.1  10.1476m 35.4425
10 64.1  10.1776m 4.94852 111 559  10.1475m 35.7536
11 69  10.1756m 5.21088 112 563.9  10.1475m 36.0651
12 73.9  10.1714m 5.47743 113 568.8  10.1475m 36.3766
13 78.8  10.1676m 5.74852 114 573.7  10.1475m 36.6882
14 83.7  10.1607m 6.02166 115 578.6  10.1475m 36.9996
15 88.6  10.1588m 6.30048 116 583.5  10.1475m 37.3111
16 93.5  10.1625m 6.58492 117 588.4  10.1474m 37.6224
17 98.4  10.1669m 6.87168 118 593.3  10.1474m 37.934
18 103.3  10.1652m 7.15836 119 598.2  10.1474m 38.2454
19 108.2  10.1644m 7.44768 120 603.1  10.1473m 38.5569
20 113.1  10.1635m 7.7386 121 608  10.1473m 38.8685
21 118  10.1625m 8.03114 122 612.9  10.1473m 39.18
22 122.9  10.1606m 8.32409 123 617.8  10.1473m 39.4916
23 127.8  10.1587m 8.61832 124 622.7  10.1472m 39.8032
24 132.7  10.1565m 8.91338 125 627.6  10.1472m 40.1147
25 137.6  10.1544m 9.20932 126 632.5  10.1472m 40.4262
26 142.5  10.1528m 9.50665 127 637.4  10.1472m 40.7378
27 147.4  10.1516m 9.805 128 642.3  10.1471m 41.0493
28 152.3  10.1570m 10.1108 129 647.2  10.1472m 41.3613
29 157.2  10.1570m 10.4118 130 652.1  10.1471m 41.6727
30 162.1  10.1573m 10.7138 131 657  10.1471m 41.9843
31 167  10.1567m 11.0154 132 661.9  10.1471m 42.2962
32 171.9  10.1563m 11.3176 133 666.8  10.1470m 42.6075
33 176.8  10.1558m 11.6206 134 671.7  10.1470m 42.9194
34 181.7  10.1554m 11.924 135 676.6  10.1469m 43.2308
35 186.6  10.1548m 12.2278 136 681.5  10.1469m 43.5426
36 191.5  10.1544m 12.532 137 686.4  10.1469m 43.8543
37 196.4  10.1539m 12.8367 138 691.3  10.1469m 44.1661
38 201.3  10.1534m 13.1415 139 696.2  10.1468m 44.4775
39 206.2  10.1530m 13.4467 140 701.1  10.1468m 44.7893
40 211.1  10.1526m 13.7523 141 706  10.1468m 45.1011
41 216  10.1524m 14.0584 142 710.9  10.1468m 45.4129
42 220.9  10.1520m 14.3645 143 715.8  10.1467m 45.7245
43 225.8  10.1517m 14.6709 144 720.7  10.1467m 46.0362
44 230.7  10.1515m 14.9777 145 725.6  10.1467m 46.3479
45 235.6  10.1514m 15.2849 146 730.5  10.1467m 46.6599
46 240.5  10.1511m 15.592 147 735.4  10.1467m 46.9715
47 245.4  10.1512m 15.8997 148 740.3  10.1467m 47.2834
48 250.3  10.1516m 16.2083 149 745.2  10.1466m 47.5951
49 255.2  10.1512m 16.5155 150 750.1  10.1467m 47.9071
50 260.1  10.1514m 16.824 151 755  10.1466m 48.2187
51 265  10.1514m 17.1324 152 759.9  10.1465m 48.5304
52 269.9  10.1515m 17.441 153 764.8  10.1466m 48.8423
53 274.8  10.1515m 17.7496 154 769.7  10.1465m 49.1541
54 279.7  10.1513m 18.0579 155 774.6  10.1465m 49.466
55 284.6  10.1511m 18.3665 156 779.5  10.1465m 49.7776
56 289.5  10.1512m 18.6757 157 784.4  10.1464m 50.0894
57 294.4  10.1509m 18.9843 158 789.3  10.1464m 50.4013
58 299.3  10.1507m 19.2931 159 794.2  10.1464m 50.7132
59 304.2  10.1501m 19.6013 160 799.1  10.1464m 51.025
60 309.1  10.1500m 19.9105 161 804  10.1464m 51.3369
61 314  10.1498m 20.2197 162 808.9  10.1464m 51.6488
62 318.9  10.1496m 20.5289 163 813.8  10.1463m 51.9606
63 323.8  10.1495m 20.8384 164 818.7  10.1464m 52.2726
64 328.7  10.1494m 21.1478 165 823.6  10.1464m 52.5846
65 333.6  10.1493m 21.4575 166 828.5  10.1463m 52.8965
66 338.5  10.1493m 21.7674 167 833.4  10.1463m 53.2082
67 343.4  10.1491m 22.077 168 838.3  10.1463m 53.5201
68 348.3  10.1489m 22.3867 169 843.2  10.1462m 53.8319
69 353.2  10.1488m 22.6966 170 848.1  10.1462m 54.1439
70 358.1  10.1487m 23.0066 171 853  10.1462m 54.4557
71 363  10.1487m 23.3167 172 857.9  10.1462m 54.7677
72 367.9  10.1486m 23.6268 173 862.8  10.1462m 55.0797
73 372.8  10.1485m 23.937 174 867.7  10.1462m 55.3917
74 377.7  10.1485m 24.2473 175 872.6  10.1462m 55.7038
75 382.6  10.1485m 24.5576 176 877.5  10.1462m 56.0157
76 387.5  10.1484m 24.868 177 882.4  10.1462m 56.3276
77 392.4  10.1483m 25.1783 178 887.3  10.1462m 56.6397
78 397.3  10.1483m 25.4888 179 892.2  10.1462m 56.9517
79 402.2  10.1482m 25.7992 180 897.1  10.1462m 57.2635
80 407.1  10.1481m 26.1097 181 902  10.1462m 57.5756
81 412  10.1480m 26.4202 182 906.9  10.1461m 57.8875
82 416.9  10.1481m 26.731 183 911.8  10.1462m 58.1996
83 421.8  10.1479m 27.0414 184 916.7  10.1461m 58.5116
84 426.7  10.1479m 27.3523 185 921.6  10.1461m 58.8236
85 431.6  10.1479m 27.6629 186 926.5  10.1461m 59.1356
86 436.5  10.1478m 27.9734 187 931.4  10.1461m 59.4476
87 441.4  10.1476m 28.2839 188 936.3  10.1461m 59.7597
88 446.3  10.1476m 28.5949 189 941.2  10.1461m 60.0714
89 451.2  10.1477m 28.9061 190 946.1  10.1461m 60.3835
90 456.1  10.1476m 29.2169 191 951  10.1461m 60.6958
91 461  10.1475m 29.5274 192 955.9  10.1461m 61.0076
92 465.9  10.1476m 29.8389 193 960.8  10.1462m 61.3203
93 470.8  10.1475m 30.1497 194 965.7  10.1462m 61.6325
94 475.7  10.1474m 30.4607 195 970.6  10.1462m 61.9446
95 480.6  10.1474m 30.7716 196 975.5  10.1462m 62.2567
96 485.5  10.1473m 31.0827 197 980.4  10.1462m 62.5684
97 490.4  10.1483m 31.3968 198 985.3  10.1462m 62.8806
98 495.3  10.1482m 31.7079 199 990.2  10.1462m 63.1928
99 500.2  10.1482m 32.0192 200 995.1  10.1461m 63.5045
100 505.1  10.1482m 32.3303 201  1.00000k  10.1460m 63.8159
101 510  10.1481m 32.6414 　 　 　 　
Table 7 Y-axis Detailed frequency data of inductance Ls and reactance Z

Conclusion
The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.





Related Products



Electromagnet      Helmholtz Coil      Solenoid

Control Magnetic Field Generation System



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2026

Get A Quote!
녕
