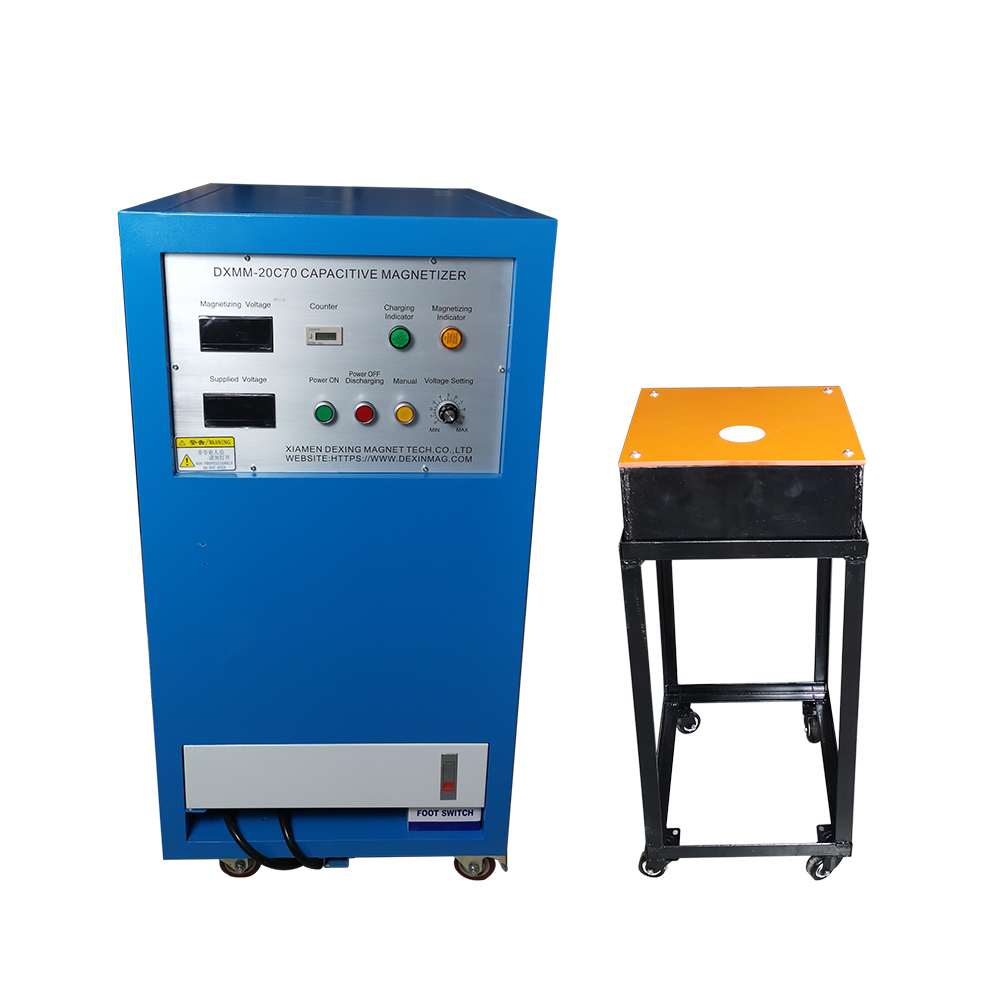

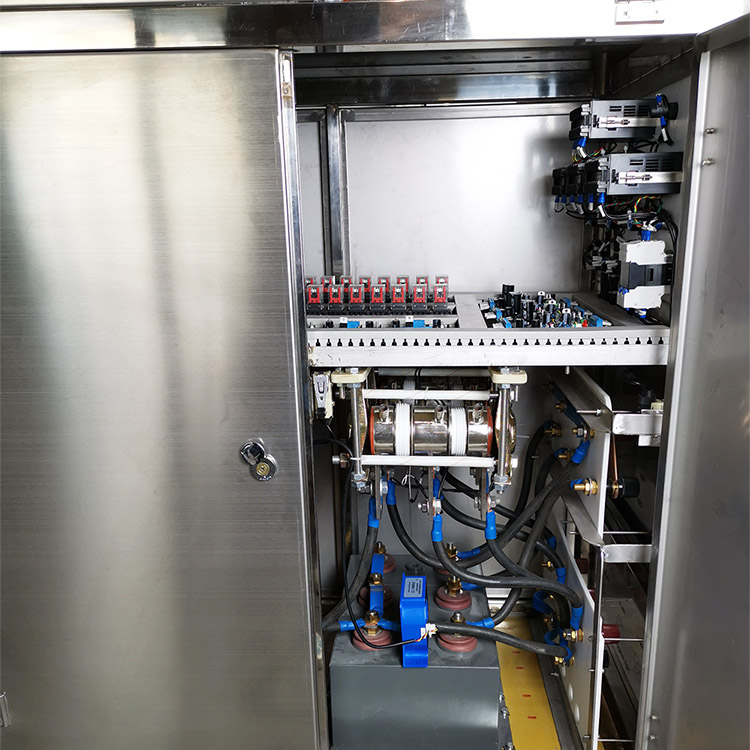

Pulse Magnetizer Machine and Demagnetizer

Dexinmag company is a professional manufacturer of remagnetizing machines and demagnetizer machines.

Dexinmag series Pulse Magnetizer Machine can meet the magnetizing requirements of all permanent magnet materials so far and is widely used in motor, rotor, speaker magnetizer, household appliances, electrical instruments, automobiles, railways, electric power, steel, radar aircraft and other fields.

Application of Dexinmag Magnetizer Machine

Magnetic Materials: ferrite, NdFeB, AlNiCo, SmCo, rubber magnet ....
Motor: variety of small motors, DC motors, stepper motor, synchronous motor, servo motor ...
Electro-acoustic industry: a variety of speakers, microphones, telephones, buzzer.
Generator: cars, motorcycles and other magnetic motor, digital generator, wind turbine...
Meters: meter, ammeter, flow meter, tachometer, odometer...
Fan categories: axial fan, automotive radiator fan, computer CPU fan...
Metals: machinery manufacturing, hardware tools, mold...
Other: magnetic components, compass, refrigerator door seal, stationery, toys, health products...

Magnetization Direction

Radial magnetization: inside magnetizing; outside magnetizing; radial internal and external magnetizing.
Axial magnetizing: axial single magnetizing; axial sided magnetizing.
Radiation magnetizing.

Advantage of Dexinmag series Magnetizers

1. Uses high-voltage pulse capacitors
2. Constant current charging
3. Sine or index pulse output
4. The repeat precision of the charge voltage is ±1V
5. High efficient output current, very low internal impedance
6. High energy up to 350KJ
7. Short pulse up to 100 uS
8. Modular architecture
9. Industry standard connections for easy integration in the production line
10. According to the needs of customers, the interactive interface can be applied

Parameters of DXMG series Magnetizers for reference



Model
DXMG 10100
DXMG 10200
DXMG 2510
DXMG 2520
DXMG 2530
DXMG 2540
DXMG 2560
Input power
220V50 ~ 60Hz30A
220V50 - 60Hz40A
Charge voltage
50 ~ 1000V
50 ~ 2500V
Max output current
15.000A
30.000A
Repeat precision of charge voltage
±1V
The Cap
10000 uF
20000 uF
1000 uF
2000 uF
3000 uF
4000 uF
6000 uF
The Cap switch
5000/ 10000
10000/ 20000
1000
1000/ 2000
1000/ 2000/ 3000
1000/ 2000/ 3000/ 4000
2000/ 4000/ 16000
Charge time
5S
9S
4S
5S
8S
12S
16S
Max energy
5000 J
10000 J
3125 J
6250 J
9375 J
12500 J
18750 J




500W x 1000D x 1400H
2000W x 1000D x 1400H
Size (mm)
Weight
300 Kg
400 Kg
250 Kg
350 Kg
450 Kg
500 Kg
800 Kg




Chinese or English
Manual

Magnetizing Coil and Magnetizing Fixture

Every magnetizing application requires a tailored magnetizing coil or fixture to transform the magnetizer energy into the required magnetic profile of the magnet.



Key features and benefits:
CAD supported mechanical design
Higher Magnetic fields with less energy
Higher productivity through higher repetition rates
Application specific cooling
Ergonomic design and handling

DXME-25C20 Pulse Magnetizer Machine

In order to meet the requirements of customers for the magnetization of the overall rotor of the product and the management of the product quality, our company specially introduces the following scheme.

The equipment in this scheme is composed of three parts: magnetizing power supply, aluminum alloy magnetizing and magnetic measuring workbench (built-in magnetizing fixture, magnetic flux meter) and water chiller. It is a complete set of online full inspection magnetizing equipment. It only needs to manually take and place parts. The equipment automatically completes the functions of magnetizing, magnetic flux measurement, judging whether the product is qualified or not, and can transmit the data to the production line MES through the Ethernet.

System Composition

Magnetizing Coil and Magnetizing Fixture

Model:

 DXME-25C20

Input power :

AC220 ± 20V 50-60Hz 30A

Max. output current:

30,000 A

Charge voltage:

DC50～2500V

Repeat precision of charge voltage:

±1V

Charge time:

5 sec

The capacity of condenser:

2000μF

Main switch:

SCR

Max. Energy:

6250 J

Enclosure dimension:

500W × 1000D × 1400H

Weight:

300kg

Color:

Gray

Magnetizing Coil and Magnetizing Fixture

Input power:

AC220 ± 20V 50-60Hz 10A

Control mode:

HMI、PLC

Work rhythm:

10S

Safety protection:

 Safety grating

Equipment structure:

Aluminum alloy profile structure

Operating height:

900mm above the ground, 1950mm in total height

Operation mode:

 Cylinder operation

Feeding type:

Worker loading and unloading

Detection method:

Magnetic flux measurement (saturation detection)

Cooling method:

Water cooling

Fluxmeter

Model:

DX-820

Input:

 AC220 ± 20V 50Hz 50VA

Display mode:

 4 digital LCD display

Range:

 0-400mWb

Resolution:

 0.1uWb

Drift stability:

 ±1 µWb/60s

Accuracy:

±0.5% of reading

Communication mode:

 RS232 & I/O signal

Usage surrounding:

 -15-55℃

Dimension:

 345 W * 240 D * 106 H

Industrial water chiller

Model:

 DX-1W

Input:

AC220 ± 20V 50Hz

Input power:

 1.41KW

Refrigeration capacity:

 2941.2 Kcal/h 3.42 KW

Cryogen:

R22

Compressor:

 Totally enclosed rotary 0.95 KW

Condenser:

High-efficiency copper sleeve aluminum fin type
+low-noise external rotor fan

Cooling air volume:

 1,000 m3/h 0.09KW

Evaporator:

 Water tank coil

Chilled water volume:

 0.59 m3/h

Water tank capacity:

 16L

Water pump:

 0.37W, lift: 20 meters

Dimension:

460 W × 580 D × 870 H

Weight:

73KW
넳 넲

You may also like

User Manual of DXMM-20C80 Magnetizer(.pdf 1.08M)

Home > System Accessories > Magnetizer/Demagnetizer > Product Introduction

Impulse Magnetizer ROHS-cs(.pdf 464KB)

Illustraton

Product certification

EU Council Directive 2014/30/EU

Electromagnetic Compatibility

With EU MD 2006/42/EC

LVD 2014/35/EU

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment

User Manual of DXMM-20C20 Magnetizer(.pdf 1.08M)
User Manual of DXMM-20C40 Magnetizer(.pdf 1.08M)
DXMM-20C80S Capacitive Magnetizer Machine
DXMM-20C80S Capacitive magnetizer machine can magnetize permanent magnets, speakers, DC motors, DC fans, stepper motors, rubber magnets and magnetic toys.
With cabinet chassis structure, used to optimize circuit design, energy storage capacitors for high voltage oil-immersed power long life capacitor. Rigorous testing means power, Long working life, strict material selection and excellent cost performance.
¥ 0.00
DX-MAG Capacitive Pulse Magnetizer
DX-MAG series capacitive pulse magnetizing/demagnetizing machines are composed of high-voltage oil-immersed pulse capacitors, silicon controlled rectifiers and control circuits. The AC power increases the power supply voltage through the isolation transformer, and then is converted into DC by the rectifier to charge the capacitor. The high-voltage direct current energy is stored in the capacitor.
¥ 0.00
Magnetizing Coils and Magnetizing Fixtures
Every magnetizing application requires a tailored magnetizing coil or fixture to transform the magnetizer energy into the required magnetic profile of the magnet.
¥ 0.00
DXME Series Magnetizing Source
In order to meet different customer needs, the downwardly expanding strategy we used in the product line, we have developed the DXME series magnetizer. These series magnetizers are more cost-effective, more convenient operation, and easy to use.
¥ 0.00
Bonded Ferrite Magnetizer Machine
DXMM30C10 magnetizer machine is used to magnetize bonded ferrite according to the customer's custom design.
¥ 0.00
DXMM-20C20 Pulse Magnetizer
DXMM-20C20 Pulse Magnetizer could magnetize the permanent magnetic materials and components, such as Sm-Co, Nd-Fe-B, Sr-Ba constant magnet, plastic magnet, magnetic tape & Al-Ni-Co, etc. This machine has high production efficiency and could be widely used for production lines.
¥ 0.00
DXMM-20C40 Impulse Magnetizer Machine
The Impulse Magnetizer Machine is used for ferrite, aluminum nickel and cobalt, magnetic rubber, NdFeB, rare-earth permanent magnet, such as a variety of sizes and shapes of magnets, and medium, small motor internal and external magnetizing and a lot of specifications speaker magnetizing.
¥ 0.00
DXMI Series Fixed Value Magnetization System
DXMI Series Fixed Value Magnetization System:
1. The main structure is made of aluminum alloy profiles.
2. PLC programmable control mode.
3. With a touchscreen interface operating system.
4. Can enter the upper and lower production control parameters, and the measurement results were compared to determine whether or not qualified, and display sound and light alarm.
¥ 0.00
DXMG Series Magnetizing Power Supply
1. Built-in famous brand PLC.
2. Digital display of preset voltage and output current.
3. Charge time is adjustable.
4. The capacity of the condenser can be switched and the capacity indication.
5. Various operating modes.
6. The counting function.
¥ 0.00
