DXEG Clamp Laboratory Electromagnet

Typical Cases

DXEG Clamp Laboratory Electromagnet

DXEG-1

Center magnetic field strength: 2800Gs;
Polar face size: 6*12mm;
Magnetic field air gap: 10mm;
Coil diameter: 70mm;
Power Supply: 60W

DXEG Clamp Laboratory Electromagnet

DXEG-2

Center magnetic field intensity: 3500Gs;
Polar face size: 12*12mm;
Magnetic field air gap: 15mm;
Coil diameter: 100mm;
One-side pole punch through hole;
Power Supply: 270W

DXEG Clamp Laboratory Electromagnet

DXEG-3

Center magnetic field strength: 7000Gs;
Polar face size: 20*20mm;
Magnetic field air gap: 10mm;
Coil diameter: 120mm;
Power Supply: 720W

DXEG Clamp Laboratory Electromagnet

DXEG-4

Center magnetic field strength: 2200Gs;
Polar face size: 5*20mm;
Magnetic field air gap: 15mm;
Coil diameter: 80mm;
Power Supply: 220W

DXEG Clamp Laboratory Electromagnet

DXEG-5

Center magnetic field strength: 6500Gs;
Polar face size: 2*50mm;
Magnetic field air gap: 2mm;
Power Supply: 400W

DXEG Clamp Laboratory Electromagnet

DXEG-6

Center magnetic field intensity: 16000Gs;
Polar face size: 2*60mm;
Magnetic field air gap: 2mm;
Power Supply: 600W

DXEG Clamp Laboratory Electromagnet

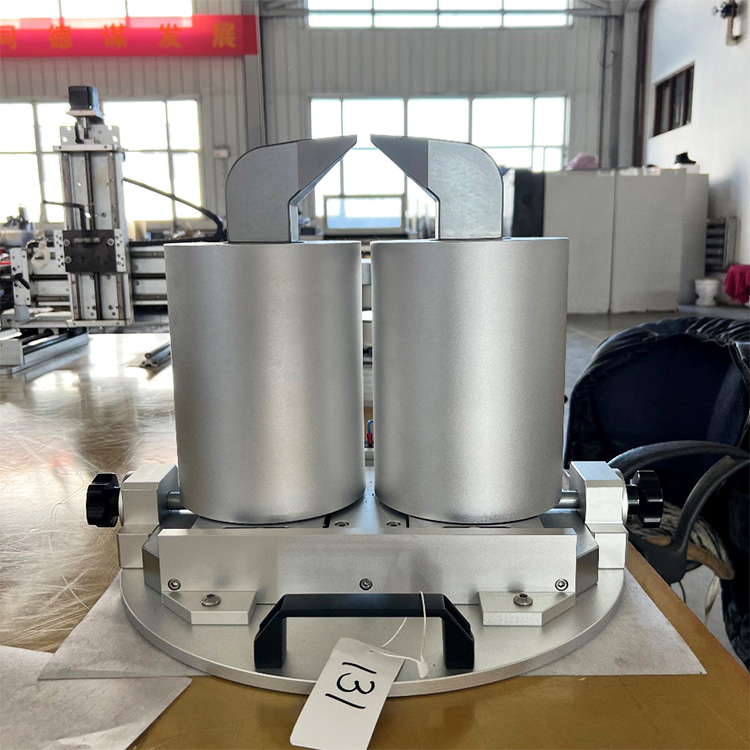

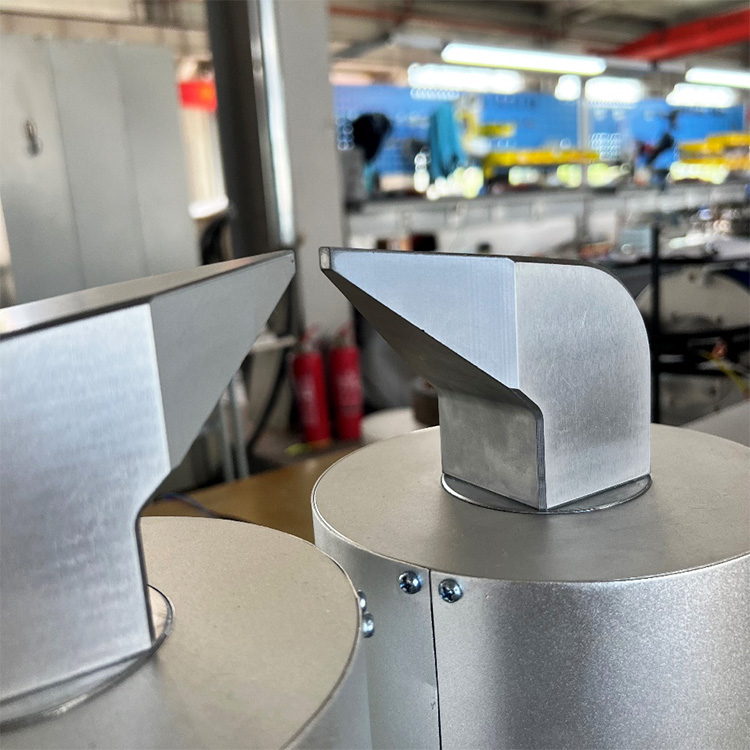

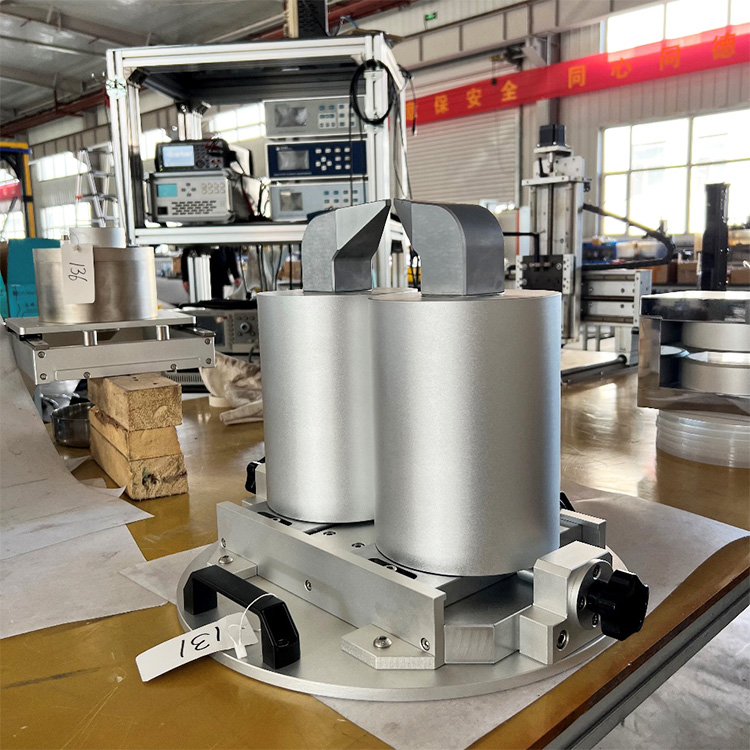

DXEG-7

The highest center magnetic field intensity: 12000Gs;
Polar face size: 6*6mm;
Magnetic air gap: 5mm~20mm adjustable;
Power Supply: 600W



View other Electromagnets

Clamp-type electromagnet bipolar protruding wire package outside, shape such as a clamp, usually used to produce an in-plane magnetic field, suitable for microscope, probe station, space limited, magneto-optical experiments, magnetic mineral powder screening and other special use environments. Clamp-type electromagnets are mostly customized, and they can be designed according to the user's requirements.
