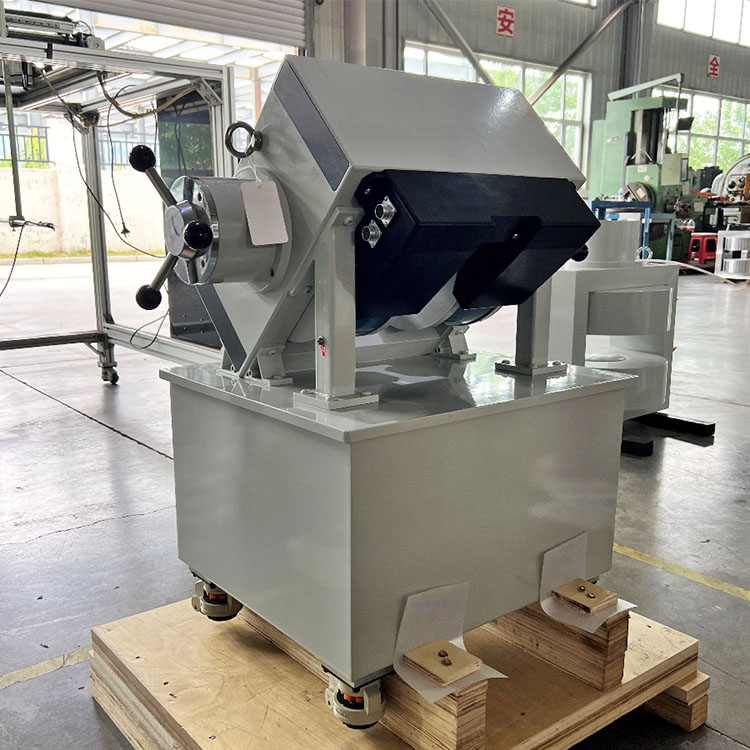

Quality Inspection Report of DXSB-100 Electromagnet with Pulley Base

Home  ꄲ  Dexinmag News  ꄲ  Electromagnet  ꄲ  Quality Inspection Report of DXSB-100 Electromagnet with Pulley Base





Overall Dimensions: 550mm(L) x 500mm(W) x 845mm(H)
Coil spacing: 100mm

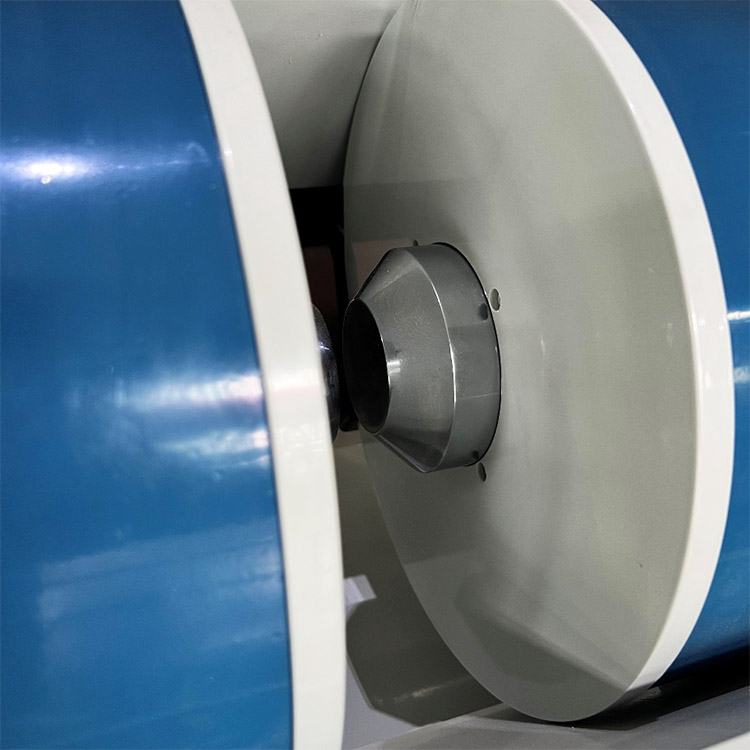

Pole diameter: 100mm
Pole surface diameter: 60mm
Air gap range: 0-100mm



Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
Electromagnet(with pulley base)		 Product model: DXSB-100
Test time: June 13, 2023
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment temperature Product initial temperature Lead length Environmental magnetic field
22.0℃ 22.0℃ 3M 0~30000nT
Table 1 Measurement environment data
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
Air Gap Display current (A) Display voltage Voltage (V) Magnetic field
strength（Gs）
40mmGap 1 - 908.5
40mmGap 2 - 1797.7
40mmGap 3 - 2682.4
40mmGap 4 - 3560.4
40mmGap 5 - 4421.3
40mmGap 6 - 5307.7
20mmGap 1 - 1770.2
20mmGap 2 - 3518.5
20mmGap 3 - 5260.9
20mmGap 4 - 6995.3
20mmGap 5 - 8734.3
20mmGap 6 - 10465.3
Table 2 Magnetic field strength data
Magnetic field uniformity
Measuring air gap
Measuring area		 measuring current Extreme value Max Extreme value Min Uniformity Note
40mmGap Sφ10*10mm 6A 5326.0Gs 5288.5Gs -0.36% 　
40mmGap Sφ5*5mm 6A 5312.4Gs 5300.9Gs -0.13% 　
20mmGap Sφ30*15mm 6A 10471.3Gs 10407.9Gs -0.55% 　
20mmGap Sφ5*5mm 6A 10467.5Gs 10463.0Gs -0.02% 　
Table 3 Uniformity data
Electrical parameter test
    1. Using equipment
Digital Multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
Environment
temperature		 Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
22.0℃ 22.0℃ 9.570Ω 9.483Ω 12.318Ω
Table 4 Resistance R data

Conclusion
The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
