DXHC10-100WX 1D Water-cooled Helmholtz Coil: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Helmholtz Coil  ꄲ  DXHC10-100WX 1D Water-cooled Helmholtz Coil: Quality Inspection Report

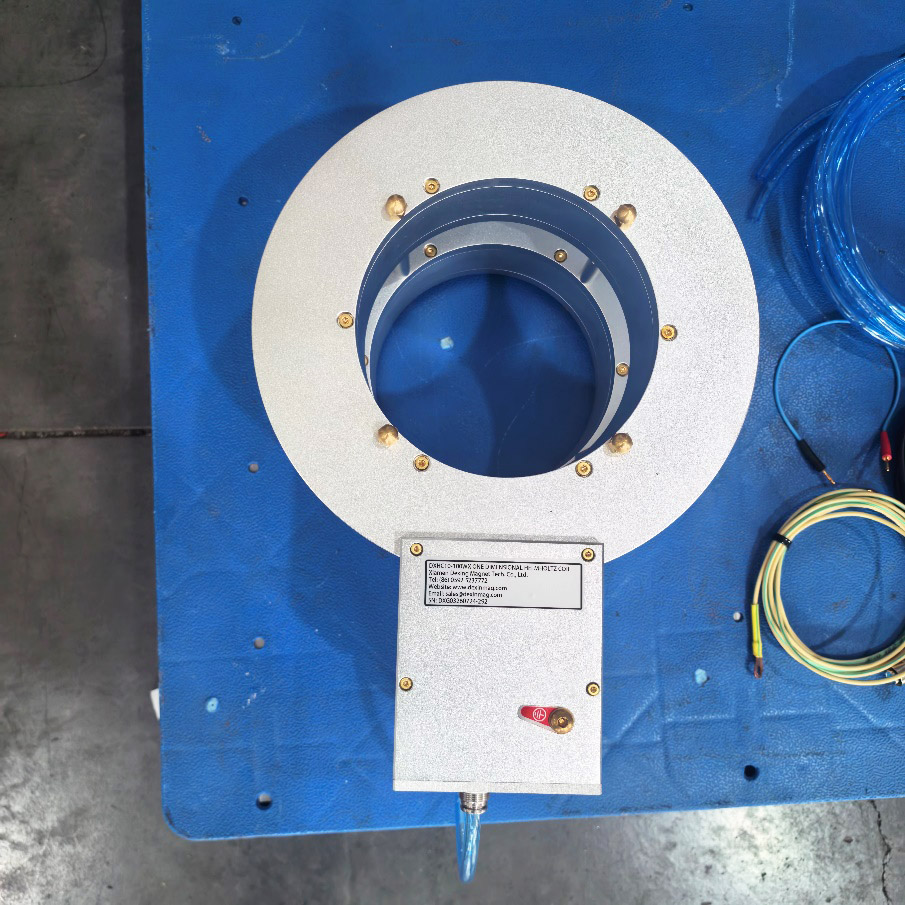

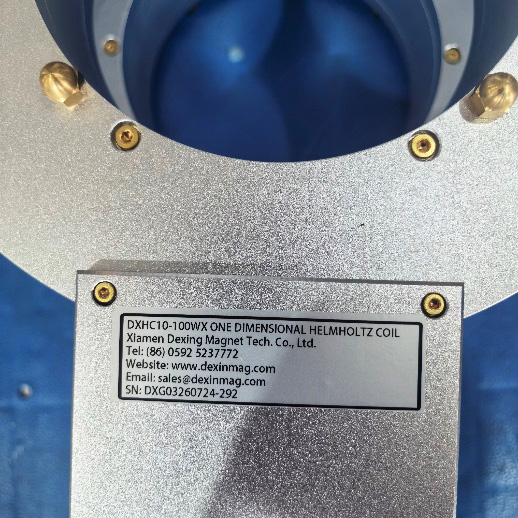

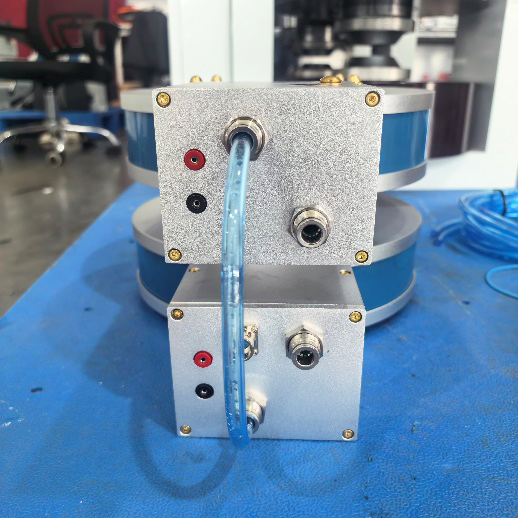

DXHC10-100WX 1D Water-cooled Helmholtz Coil P1 DXHC10-100WX 1D Water-cooled Helmholtz Coil P2 DXHC10-100WX 1D Water-cooled Helmholtz Coil P3 DXHC10-100WX 1D Water-cooled Helmholtz Coil P4



Overall Dimensions: 260mm(L) x370mm(W) x 185mm(H)

Weight: 19.5kg







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
1D coil (water-cooled)		 Product model: DXHC10-100WX
Test time: 20260828-347
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
25.0℃ 25.0℃ - 0~30000nT
Table 1 Measurement environment data
　
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
DXACP Power Amplifier
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
No. Display current (A) Display voltage (V) Magnetic field
strength（Gs）
1 0.5 3.47 21.559
2 1 6.88 43.158
3 1.5 10.23 64.753
4 2 13.6 86.419
5 2.4 16.29 103.696
Table 2 Magnetic field strength data

Magnetic field uniformity
No. Measurement area Current Central(Gs)
magnetic field		 Maximum(Gs)
magnetic field		 Minimum(Gs)
magnetic field		 Uniformity
1 SΦ50mm 2.4A 103.696 103.696 103.063 -0.61%
Coordinates Magnetic Field Strength (Gs)
(0,0,0) 103.696
(25,0,0) 103.658
(-25,0,0) 103.583
(0,25,0) 103.572
(0,-25,0) 103.616
(0,0,25) 103.063
(0,0,-25) 103.081
Table 3 Uniformity data
　
Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
Environment temp Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
25.0℃ 25.0℃ 7.427Ω 7.260Ω 9.431Ω
Table 4 Resistance R data
　
Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 29.5510m  1.00000k  70.6799m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
16.5973 20 193.503  1.00000k
Table 5 inductance Ls and reactance Z data
　
Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  70.6799m 16.5973 102 514.9  32.4304m 110.695
2 24.9  61.6281m 17.6129 103 519.8  32.3878m 111.574
3 29.8  55.7629m 18.4793 104 524.7  32.3455m 112.453
4 34.7  51.7996m 19.2758 105 529.6  32.3037m 113.33
5 39.6  49.0129m 20.0504 106 534.5  32.2624m 114.206
6 44.5  46.9749m 20.8259 107 539.4  32.2213m 115.08
7 49.4  45.4411m 21.6139 108 544.3  32.1818m 115.957
8 54.3  44.2603m 22.4203 109 549.2  32.1415m 116.829
9 59.2  43.3108m 23.2438 110 554.1  32.1016m 117.7
10 64.1  42.5455m 24.0883 111 559  32.0622m 118.57
11 69  41.9075m 24.9514 112 563.9  32.0229m 119.439
12 73.9  41.3700m 25.832 113 568.8  31.9842m 120.307
13 78.8  40.9105m 26.7287 114 573.7  31.9457m 121.173
14 83.7  40.5100m 27.6384 115 578.6  31.9077m 122.039
15 88.6  40.1571m 28.5599 116 583.5  31.8697m 122.903
16 93.5  39.8425m 29.4915 117 588.4  31.8324m 123.766
17 98.4  39.5559m 30.4314 118 593.3  31.7953m 124.629
18 103.3  39.3041m 31.3866 119 598.2  31.7585m 125.49
19 108.2  39.0688m 32.3444 120 603.1  31.7223m 126.351
20 113.1  38.8523m 33.3086 121 608  31.6861m 127.21
21 118  38.6514m 34.2784 122 612.9  31.6503m 128.068
22 122.9  38.4638m 35.2522 123 617.8  31.6151m 128.927
23 127.8  38.2882m 36.2304 124 622.7  31.5798m 129.783
24 132.7  38.1228m 37.2113 125 627.6  31.5451m 130.638
25 137.6  37.9660m 38.1942 126 632.5  31.5106m 131.493
26 142.5  37.8172m 39.1796 127 637.4  31.4765m 132.347
27 147.4  37.6753m 40.1666 128 642.3  31.4424m 133.199
28 152.3  37.5390m 41.1545 129 647.2  31.4087m 134.051
29 157.2  37.4089m 42.1436 130 652.1  31.3755m 134.902
30 162.1  37.2834m 43.1334 131 657  31.3423m 135.752
31 167  37.1626m 44.1236 132 661.9  31.3097m 136.602
32 171.9  37.0444m 45.1141 133 666.8  31.2771m 137.45
33 176.8  36.9320m 46.1044 134 671.7  31.2448m 138.297
34 181.7  36.8228m 47.0943 135 676.6  31.2127m 139.144
35 186.6  36.7170m 48.0839 136 681.5  31.1811m 139.99
36 191.5  36.6142m 49.0734 137 686.4  31.1497m 140.836
37 196.4  36.5140m 50.0618 138 691.3  31.1184m 141.679
38 201.3  36.4162m 51.0492 139 696.2  31.0875m 142.523
39 206.2  36.3202m 52.0351 140 701.1  31.0568m 143.366
40 211.1  36.2267m 53.0202 141 706  31.0261m 144.207
41 216  36.1351m 54.0038 142 710.9  30.9960m 145.048
42 220.9  36.0452m 54.9855 143 715.8  30.9660m 145.889
43 225.8  35.9574m 55.9661 144 720.7  30.9362m 146.728
44 230.7  35.8712m 56.9446 145 725.6  30.9067m 147.566
45 235.6  35.7865m 57.9213 146 730.5  30.8775m 148.405
46 240.5  35.7033m 58.8964 147 735.4  30.8483m 149.241
47 245.4  35.6216m 59.8699 148 740.3  30.8196m 150.078
48 250.3  35.5414m 60.8423 149 745.2  30.7909m 150.914
49 255.2  35.4624m 61.8122 150 750.1  30.7625m 151.748
50 260.1  35.3848m 62.7807 151 755  30.7344m 152.583
51 265  35.3084m 63.7474 152 759.9  30.7063m 153.416
52 269.9  35.2332m 64.7126 153 764.8  30.6787m 154.25
53 274.8  35.1589m 65.6754 154 769.7  30.6512m 155.082
54 279.7  35.0857m 66.6364 155 774.6  30.6237m 155.913
55 284.6  35.0137m 67.5956 156 779.5  30.5966m 156.744
56 289.5  34.9426m 68.5528 157 784.4  30.5697m 157.574
57 294.4  34.8727m 69.5088 158 789.3  30.5430m 158.403
58 299.3  34.8037m 70.4628 159 794.2  30.5164m 159.232
59 304.2  34.7365m 71.4172 160 799.1  30.4901m 160.06
60 309.1  34.6694m 72.3679 161 804  30.4640m 160.888
61 314  34.6030m 73.3158 162 808.9  30.4379m 161.714
62 318.9  34.5375m 74.262 163 813.8  30.4121m 162.54
63 323.8  34.4727m 75.2062 164 818.7  30.3865m 163.366
64 328.7  34.4089m 76.1492 165 823.6  30.3611m 164.191
65 333.6  34.3455m 77.0892 166 828.5  30.3359m 165.015
66 338.5  34.2832m 78.0283 167 833.4  30.3107m 165.838
67 343.4  34.2215m 78.9653 168 838.3  30.2858m 166.661
68 348.3  34.1605m 79.9003 169 843.2  30.2612m 167.484
69 353.2  34.1001m 80.8333 170 848.1  30.2366m 168.306
70 358.1  34.0407m 81.7652 171 853  30.2122m 169.127
71 363  33.9816m 82.6945 172 857.9  30.1879m 169.947
72 367.9  33.9232m 83.6218 173 862.8  30.1639m 170.767
73 372.8  33.8656m 84.5478 174 867.7  30.1400m 171.587
74 377.7  33.8086m 85.4719 175 872.6  30.1164m 172.406
75 382.6  33.7519m 86.3937 176 877.5  30.0929m 173.225
76 387.5  33.6961m 87.3142 177 882.4  30.0694m 174.042
77 392.4  33.6409m 88.2333 178 887.3  30.0462m 174.859
78 397.3  33.5862m 89.1505 179 892.2  30.0232m 175.676
79 402.2  33.5322m 90.0661 180 897.1  30.0002m 176.492
80 407.1  33.4788m 90.9801 181 902  29.9775m 177.307
81 412  33.4258m 91.8922 182 906.9  29.9548m 178.122
82 416.9  33.3734m 92.8028 183 911.8  29.9323m 178.936
83 421.8  33.3216m 93.7116 184 916.7  29.9100m 179.75
84 426.7  33.2704m 94.6193 185 921.6  29.8879m 180.564
85 431.6  33.2197m 95.525 186 926.5  29.8660m 181.377
86 436.5  33.1692m 96.4286 187 931.4  29.8441m 182.189
87 441.4  33.1194m 97.3307 188 936.3  29.8223m 183.001
88 446.3  33.0701m 98.2319 189 941.2  29.8007m 183.812
89 451.2  33.0217m 99.1323 190 946.1  29.7793m 184.623
90 456.1  32.9734m 100.03 191 951  29.7579m 185.433
91 461  32.9255m 100.926 192 955.9  29.7366m 186.242
92 465.9  32.8784m 101.822 193 960.8  29.7153m 187.049
93 470.8  32.8315m 102.715 194 965.7  29.6944m 187.858
94 475.7  32.7852m 103.607 195 970.6  29.6734m 188.665
95 480.6  32.7393m 104.498 196 975.5  29.6526m 189.472
96 485.5  32.6939m 105.387 197 980.4  29.6320m 190.279
97 490.4  32.6489m 106.275 198 985.3  29.6116m 191.086
98 495.3  32.6044m 107.162 199 990.2  29.5912m 191.891
99 500.2  32.5604m 108.048 200 995.1  29.5711m 192.698
100 505.1  32.5165m 108.931 201  1.00000k  29.5510m 193.503
101 510  32.4733m 109.814 　 　 　 　
Table 6 Detailed frequency data of inductance Ls and reactance Z

Temperature Rise Test
 Test Methods
The following measurement methods are employed for this product:
Magnetic field temperature rise measurement: Determines the maximum operating time and peak temperature at the target magnetic field current required for user operation.
Maximum current temperature rise measurement: Determines the maximum operating time and peak temperature at the maximum safe current the product can withstand.
Data regarding temperature, time, and current for the coil assembly is measured. The results are presented in the table below.
Temperature Rise Test
Test Current [A] Duration [min] Product temperature [°C]
2.4 0 23.3
10 25.2
20 25.7
30 25.6
40 25.8
50 25.7
60 25.6
Note 　
Table 7: Data on the relationship between temperature, operating time, and current

Conclusion
The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
