3DXF50-4.4 3D Square Helmholtz Coil: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Helmholtz Coil  ꄲ  3DXF50-4.4 3D Square Helmholtz Coil: Quality Inspection Report

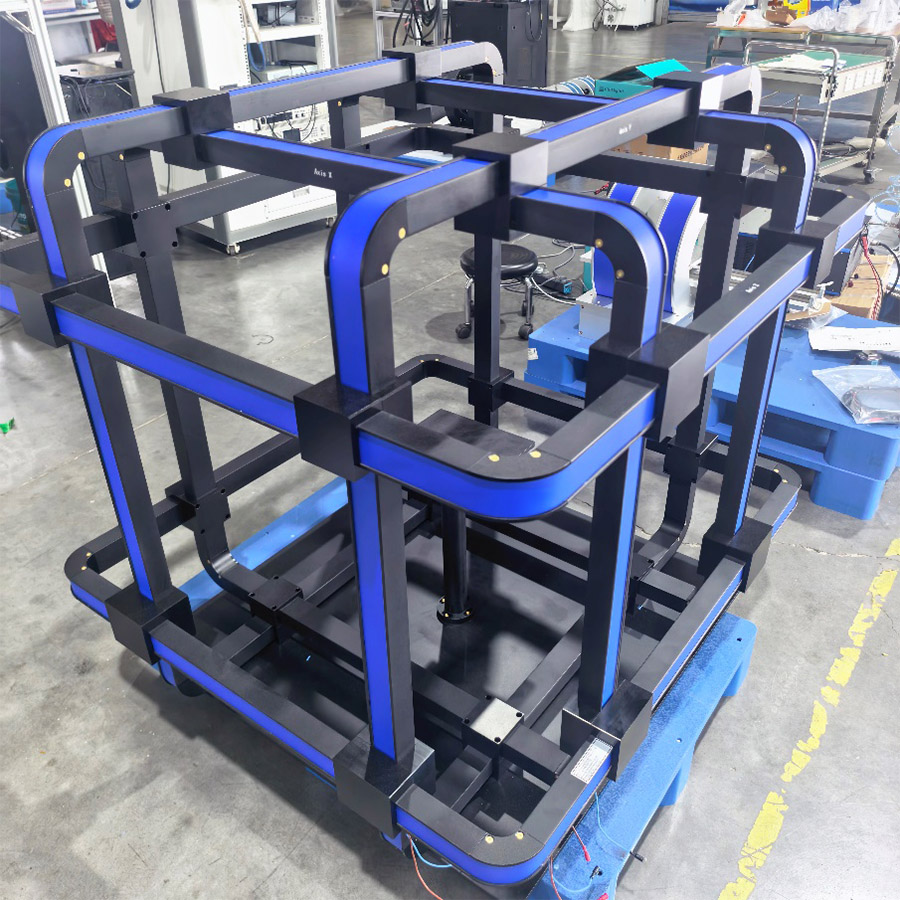

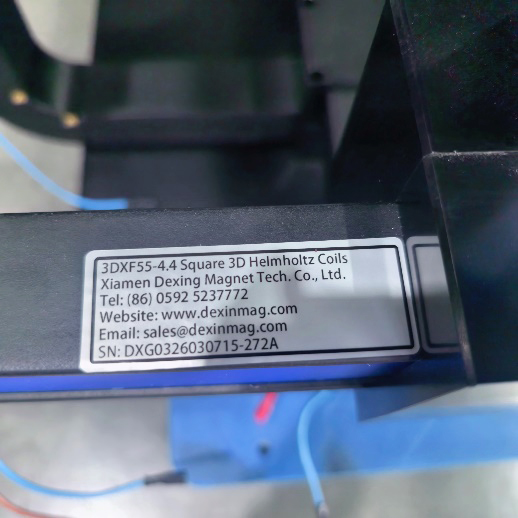

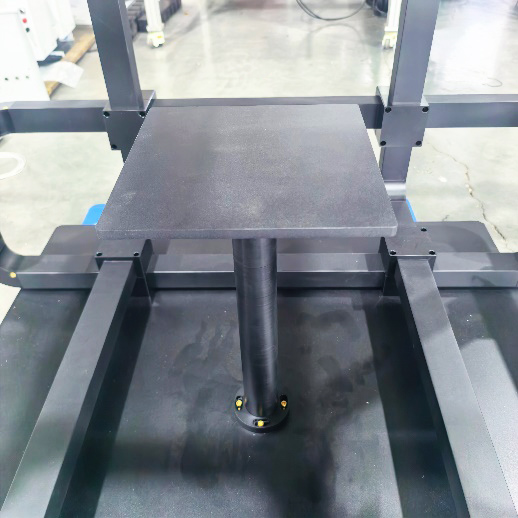

3DXF50-4.4 3D Square Helmholtz Coil P1 3DXF50-4.4 3D Square Helmholtz Coil P2 3DXF50-4.4 3D Square Helmholtz Coil P3 3DXF50-4.4 3D Square Helmholtz Coil P4



Overall Dimensions: 1230mm(L) x 1140mm(W) x 1150mm(H)

Weight: 158kg







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
3D square Helmholtz coil		 Product model: 3DXF50-4.4
Test time: August 13th, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
25.0℃ 25.0℃ - 0~30000nT
Table 1 Measurement environment data
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss meter
DX-33OF Fluxgate Magnetometer
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point



Magnetic field strength
No. Display current (A) Display voltage (V) Magnetic field
strength（Gs）
X Axis 3 - 4.81
Y Axis 3 - 4.81
Z Axis 3 - 4.85
Magnetic field orthogonality angle
　 3D fluxgate reading (geomagnetic field subtracted) 　 　 Angle (°)） Offset (°)
No. x y z 　 　 　 　
Y axis 48072 -1098 -987.1 Y-Z angle 89.9941676 0.00583239
Z axis -954 494.9 -48113.2 Y-X angle 90.005769 -0.005769
X axis -1572.7 -48530.4 -444.9 Z-X angle 90.1079399 -0.1079399
Table 2 Magnetic field strength data
　
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
X Axis SΦ250mm 0.3A 48101.9 48101.9 47926.6 -0.36%
Coordinates Magnetic Field Strength (nT)
(0,0,0) 48101.9
(125,0,0) 48026
(-125,0,0) 48017
(0,125,0) 47957.1
(0,-125,0) 47926.6
(0,0,125) 47991
(0,0,-125) 48079.1
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
Y Axis SΦ250mm 0.3A 48017.5 48017.5 47908.9 -0.23%
Coordinates Magnetic Field Strength (nT)
(0,0,0) 48017.5
(125,0,0) 47908.9
(-125,0,0) 47911.3
(0,125,0) 47982.9
(0,-125,0) 48013.3
(0,0,125) 47995.7
(0,0,-125) 48008.5
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
Z Axis SΦ250mm 0.3A 48548.2 48548.2 48359.4 -0.39%
Coordinates Magnetic Field Strength (nT)
(0,0,0) 48548.2
(125,0,0) 48363.5
(-125,0,0) 48359.4
(0,125,0) 48479.9
(0,-125,0) 48530.8
(0,0,125) 48547.7
(0,0,-125) 48686.3
Table 3 Uniformity data



Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
No. Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
X axis 25.0℃ 4.727Ω 4.621Ω 6.002Ω
Y axis 25.0℃ 5.480Ω 5.357Ω 6.958Ω
Z axis 25.0℃ 6.081Ω 5.944Ω 7.722Ω
Table 4 Resistance R data



X Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 63.3368m 946.1  63.8448m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
9.33115 20 398.042  1.00000k
Table 5 X axis inductance Ls and reactance Z data
　
X Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  63.8448m 9.33115 102 514.9  63.4416m 205.342
2 24.9  63.8397m 11.0689 103 519.8  63.4380m 207.283
3 29.8  63.8359m 12.8718 104 524.7  63.4359m 209.229
4 34.7  63.8230m 14.7136 105 529.6  63.4339m 211.175
5 39.6  63.8119m 16.5834 106 534.5  63.4314m 213.119
6 44.5  63.8100m 18.474 107 539.4  63.4277m 215.059
7 49.4  63.8150m 20.3805 108 544.3  63.4247m 217.001
8 54.3  63.8069m 22.293 109 549.2  63.4216m 218.943
9 59.2  63.8077m 24.2174 110 554.1  63.4203m 220.891
10 64.1  63.7974m 26.143 111 559  63.4183m 222.836
11 69  63.7952m 28.0763 112 563.9  63.4169m 224.783
12 73.9  63.7918m 30.0129 113 568.8  63.4144m 226.726
13 78.8  63.7944m 31.9557 114 573.7  63.4120m 228.67
14 83.7  63.7911m 33.8979 115 578.6  63.4096m 230.613
15 88.6  63.7860m 35.841 116 583.5  63.4076m 232.558
16 93.5  63.7809m 37.7857 117 588.4  63.4057m 234.503
17 98.4  63.7694m 39.7285 118 593.3  63.4037m 236.447
18 103.3  63.7668m 41.6773 119 598.2  63.4020m 238.392
19 108.2  63.7619m 43.6256 120 603.1  63.4004m 240.338
20 113.1  63.7585m 45.5755 121 608  63.3989m 242.284
21 118  63.7537m 47.5251 122 612.9  63.3975m 244.231
22 122.9  63.7501m 49.476 123 617.8  63.3961m 246.177
23 127.8  63.7446m 51.4261 124 622.7  63.3944m 248.122
24 132.7  63.7389m 53.3762 125 627.6  63.3931m 250.068
25 137.6  63.7339m 55.3272 126 632.5  63.3915m 252.013
26 142.5  63.7288m 57.2785 127 637.4  63.3900m 253.959
27 147.4  63.7188m 59.2251 128 642.3  63.3878m 255.901
28 152.3  63.7190m 61.1811 129 647.2  63.3872m 257.85
29 157.2  63.7114m 63.1303 130 652.1  63.3864m 259.798
30 162.1  63.7064m 65.082 131 657  63.3841m 261.74
31 167  63.7010m 67.0329 132 661.9  63.3815m 263.681
32 171.9  63.6995m 68.9881 133 666.8  63.3809m 265.629
33 176.8  63.6945m 70.9395 134 671.7  63.3811m 267.582
34 181.7  63.6897m 72.8911 135 676.6  63.3792m 269.525
35 186.6  63.6841m 74.8416 136 681.5  63.3782m 271.471
36 191.5  63.6797m 76.7935 137 686.4  63.3769m 273.417
37 196.4  63.6751m 78.745 138 691.3  63.3766m 275.367
38 201.3  63.6697m 80.6955 139 696.2  63.3752m 277.312
39 206.2  63.6643m 82.6456 140 701.1  63.3735m 279.255
40 211.1  63.6586m 84.5955 141 706  63.3728m 281.203
41 216  63.6538m 86.5463 142 710.9  63.3711m 283.147
42 220.9  63.6495m 88.4976 143 715.8  63.3710m 285.097
43 225.8  63.6447m 90.448 144 720.7  63.3700m 287.043
44 230.7  63.6398m 92.398 145 725.6  63.3686m 288.988
45 235.6  63.6333m 94.3457 146 730.5  63.3675m 290.934
46 240.5  63.6291m 96.2961 147 735.4  63.3671m 292.883
47 245.4  63.6239m 98.2452 148 740.3  63.3673m 294.835
48 250.3  63.6117m 100.183 149 745.2  63.3644m 296.772
49 255.2  63.6143m 102.143 150 750.1  63.3632m 298.716
50 260.1  63.6080m 104.09 151 755  63.3629m 300.666
51 265  63.6041m 106.04 152 759.9  63.3607m 302.606
52 269.9  63.6024m 107.994 153 764.8  63.3627m 304.567
53 274.8  63.5977m 109.942 154 769.7  63.3611m 306.51
54 279.7  63.5938m 111.892 155 774.6  63.3602m 308.456
55 284.6  63.5907m 113.843 156 779.5  63.3592m 310.402
56 289.5  63.5859m 115.791 157 784.4  63.3588m 312.35
57 294.4  63.5825m 117.741 158 789.3  63.3539m 314.277
58 299.3  63.5778m 119.688 159 794.2  63.3542m 316.229
59 304.2  63.5736m 121.636 160 799.1  63.3530m 318.173
60 309.1  63.5691m 123.583 161 804  63.3524m 320.121
61 314  63.5654m 125.532 162 808.9  63.3518m 322.068
62 318.9  63.5616m 127.48 163 813.8  63.3502m 324.01
63 323.8  63.5572m 129.427 164 818.7  63.3504m 325.962
64 328.7  63.5537m 131.375 165 823.6  63.3495m 327.907
65 333.6  63.5494m 133.322 166 828.5  63.3487m 329.854
66 338.5  63.5451m 135.268 167 833.4  63.3481m 331.8
67 343.4  63.5427m 137.219 168 838.3  63.3467m 333.743
68 348.3  63.5387m 139.165 169 843.2  63.3467m 335.693
69 353.2  63.5337m 141.11 170 848.1  63.3467m 337.644
70 358.1  63.5307m 143.058 171 853  63.3457m 339.589
71 363  63.5279m 145.007 172 857.9  63.3459m 341.54
72 367.9  63.5248m 146.955 173 862.8  63.3443m 343.482
73 372.8  63.5211m 148.901 174 867.7  63.3448m 345.434
74 377.7  63.5179m 150.848 175 872.6  63.3438m 347.379
75 382.6  63.5146m 152.795 176 877.5  63.3433m 349.326
76 387.5  63.5109m 154.741 177 882.4  63.3428m 351.274
77 392.4  63.5081m 156.688 178 887.3  63.3433m 353.227
78 397.3  63.5049m 158.635 179 892.2  63.3420m 355.17
79 402.2  63.5030m 160.585 180 897.1  63.3419m 357.12
80 407.1  63.4998m 162.531 181 902  63.3415m 359.067
81 412  63.4954m 164.474 182 906.9  63.3412m 361.015
82 416.9  63.4929m 166.421 183 911.8  63.3402m 362.96
83 421.8  63.4910m 168.371 184 916.7  63.3402m 364.91
84 426.7  63.4886m 170.318 185 921.6  63.3405m 366.862
85 431.6  63.4838m 172.26 186 926.5  63.3399m 368.808
86 436.5  63.4812m 174.206 187 931.4  63.3400m 370.759
87 441.4  63.4778m 176.151 188 936.3  63.3380m 372.698
88 446.3  63.4794m 178.109 189 941.2  63.3385m 374.65
89 451.2  63.4732m 180.045 190 946.1  63.3368m 376.59
90 456.1  63.4707m 181.992 191 951  63.3393m 378.555
91 461  63.4685m 183.939 192 955.9  63.3383m 380.5
92 465.9  63.4652m 185.883 193 960.8  63.3386m 382.451
93 470.8  63.4634m 187.831 194 965.7  63.3375m 384.395
94 475.7  63.4609m 189.777 195 970.6  63.3378m 386.347
95 480.6  63.4585m 191.723 196 975.5  63.3376m 388.295
96 485.5  63.4560m 193.669 197 980.4  63.3372m 390.243
97 490.4  63.4524m 195.611 198 985.3  63.3378m 392.197
98 495.3  63.4507m 197.559 199 990.2  63.3373m 394.144
99 500.2  63.4483m 199.505 200 995.1  63.3370m 396.092
100 505.1  63.4459m 201.45 201  1.00000k  63.3371m 398.042
101 510  63.4431m 203.394 　 　 　 　
Table 6 X axis Detailed frequency data of inductance Ls and reactance Z



Y Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 81.3259m  1.00000k  82.2141m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
11.7369 20 511.103  1.00000k
Table 7 Y axis inductance Ls and reactance Z data
Y Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  82.2141m 11.7369 102 514.9  81.5043m 263.804
2 24.9  82.2133m 14.0202 103 519.8  81.5017m 266.305
3 29.8  82.2069m 16.3748 104 524.7  81.4968m 268.798
4 34.7  82.1892m 18.7722 105 529.6  81.4925m 271.292
5 39.6  82.1656m 21.1983 106 534.5  81.4886m 273.788
6 44.5  82.1613m 23.6491 107 539.4  81.4852m 276.285
7 49.4  82.1582m 26.1143 108 544.3  81.4786m 278.771
8 54.3  82.1503m 28.589 109 549.2  81.4731m 281.26
9 59.2  82.1435m 31.0732 110 554.1  81.4704m 283.759
10 64.1  82.1438m 33.565 111 559  81.4694m 286.263
11 69  82.1354m 36.0591 112 563.9  81.4636m 288.75
12 73.9  82.1306m 38.5585 113 568.8  81.4601m 291.246
13 78.8  82.1262m 41.061 114 573.7  81.4568m 293.742
14 83.7  82.1174m 43.5636 115 578.6  81.4534m 296.237
15 88.6  82.1079m 46.0677 116 583.5  81.4503m 298.734
16 93.5  82.0976m 48.5729 117 588.4  81.4471m 301.229
17 98.4  82.0863m 51.0791 118 593.3  81.4439m 303.724
18 103.3  82.0781m 53.5876 119 598.2  81.4400m 306.217
19 108.2  82.0700m 56.0969 120 603.1  81.4377m 308.716
20 113.1  82.0627m 58.6071 121 608  81.4343m 311.21
21 118  82.0536m 61.1166 122 612.9  81.4312m 313.705
22 122.9  82.0453m 63.6272 123 617.8  81.4285m 316.202
23 127.8  82.0357m 66.137 124 622.7  81.4257m 318.698
24 132.7  82.0262m 68.6469 125 627.6  81.4227m 321.192
25 137.6  82.0173m 71.1574 126 632.5  81.4202m 323.689
26 142.5  82.0087m 73.6683 127 637.4  81.4170m 326.183
27 147.4  81.9922m 76.1716 128 642.3  81.4151m 328.682
28 152.3  81.9949m 78.6926 129 647.2  81.4120m 331.176
29 157.2  81.9816m 81.1986 130 652.1  81.4094m 333.671
30 162.1  81.9735m 83.7094 131 657  81.4078m 336.171
31 167  81.9635m 86.2179 132 661.9  81.4075m 338.676
32 171.9  81.9580m 88.7308 133 666.8  81.4047m 341.171
33 176.8  81.9500m 91.2409 134 671.7  81.4008m 343.661
34 181.7  81.9413m 93.7501 135 676.6  81.3987m 346.157
35 186.6  81.9322m 96.2585 136 681.5  81.3966m 348.655
36 191.5  81.9241m 98.7677 137 686.4  81.3947m 351.152
37 196.4  81.9128m 101.273 138 691.3  81.3919m 353.646
38 201.3  81.9051m 103.782 139 696.2  81.3893m 356.14
39 206.2  81.8955m 106.288 140 701.1  81.3876m 358.639
40 211.1  81.8872m 108.796 141 706  81.3861m 361.138
41 216  81.8782m 111.302 142 710.9  81.3843m 363.636
42 220.9  81.8707m 113.81 143 715.8  81.3818m 366.13
43 225.8  81.8623m 116.316 144 720.7  81.3807m 368.63
44 230.7  81.8542m 118.822 145 725.6  81.3788m 371.127
45 235.6  81.8442m 121.326 146 730.5  81.3771m 373.625
46 240.5  81.8367m 123.832 147 735.4  81.3743m 376.117
47 245.4  81.8300m 126.339 148 740.3  81.3747m 378.625
48 250.3  81.8271m 128.852 149 745.2  81.3715m 381.114
49 255.2  81.8148m 131.35 150 750.1  81.3738m 383.631
50 260.1  81.8079m 133.856 151 755  81.3687m 386.112
51 265  81.8020m 136.363 152 759.9  81.3657m 388.603
52 269.9  81.7924m 138.863 153 764.8  81.3664m 391.111
53 274.8  81.7849m 141.367 154 769.7  81.3634m 393.601
54 279.7  81.7778m 143.871 155 774.6  81.3621m 396.1
55 284.6  81.7717m 146.377 156 779.5  81.3610m 398.6
56 289.5  81.7638m 148.878 157 784.4  81.3596m 401.098
57 294.4  81.7559m 151.38 158 789.3  81.3577m 403.593
58 299.3  81.7497m 153.884 159 794.2  81.3564m 406.092
59 304.2  81.7402m 156.382 160 799.1  81.3554m 408.591
60 309.1  81.7333m 158.883 161 804  81.3545m 411.092
61 314  81.7255m 161.383 162 808.9  81.3532m 413.59
62 318.9  81.7186m 163.884 163 813.8  81.3510m 416.083
63 323.8  81.7124m 166.387 164 818.7  81.3511m 418.588
64 328.7  81.7046m 168.885 165 823.6  81.3494m 421.084
65 333.6  81.6993m 171.389 166 828.5  81.3485m 423.584
66 338.5  81.6956m 173.895 167 833.4  81.3476m 426.083
67 343.4  81.6852m 176.387 168 838.3  81.3451m 428.575
68 348.3  81.6786m 178.887 169 843.2  81.3458m 431.084
69 353.2  81.6697m 181.381 170 848.1  81.3435m 433.575
70 358.1  81.6675m 183.889 171 853  81.3426m 436.075
71 363  81.6602m 186.386 172 857.9  81.3423m 438.578
72 367.9  81.6551m 188.888 173 862.8  81.3403m 441.071
73 372.8  81.6475m 191.383 174 867.7  81.3397m 443.573
74 377.7  81.6425m 193.884 175 872.6  81.3398m 446.077
75 382.6  81.6369m 196.384 176 877.5  81.3383m 448.573
76 387.5  81.6304m 198.881 177 882.4  81.3377m 451.074
77 392.4  81.6241m 201.378 178 887.3  81.3373m 453.576
78 397.3  81.6186m 203.876 179 892.2  81.3360m 456.073
79 402.2  81.6140m 206.377 180 897.1  81.3358m 458.576
80 407.1  81.6087m 208.876 181 902  81.3345m 461.073
81 412  81.6029m 211.373 182 906.9  81.3342m 463.576
82 416.9  81.5977m 213.871 183 911.8  81.3334m 466.075
83 421.8  81.5925m 216.369 184 916.7  81.3327m 468.576
84 426.7  81.5874m 218.866 185 921.6  81.3330m 471.081
85 431.6  81.5827m 221.365 186 926.5  81.3324m 473.582
86 436.5  81.5739m 223.853 187 931.4  81.3318m 476.082
87 441.4  81.5750m 226.366 188 936.3  81.3307m 478.58
88 446.3  81.5695m 228.862 189 941.2  81.3297m 481.078
89 451.2  81.5589m 231.343 190 946.1  81.3332m 483.603
90 456.1  81.5584m 233.852 191 951  81.3314m 486.096
91 461  81.5579m 236.361 192 955.9  81.3302m 488.593
92 465.9  81.5479m 238.842 193 960.8  81.3303m 491.097
93 470.8  81.5435m 241.34 194 965.7  81.3284m 493.59
94 475.7  81.5394m 243.837 195 970.6  81.3285m 496.095
95 480.6  81.5355m 246.336 196 975.5  81.3278m 498.595
96 485.5  81.5304m 248.83 197 980.4  81.3274m 501.096
97 490.4  81.5277m 251.332 198 985.3  81.3264m 503.594
98 495.3  81.5221m 253.824 199 990.2  81.3268m 506.101
99 500.2  81.5182m 256.321 200 995.1  81.3274m 508.608
100 505.1  81.5136m 258.816 201  1.00000k  81.3259m 511.103
101 510  81.5107m 261.316 　 　 　 　
Table 8 Y axis Detailed frequency data of inductance Ls and reactance Z



Z Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 95.6818m  1.00000k  96.7488m 20
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
13.6313 20 601.33  1.00000k
Table 9 Z axis inductance Ls and reactance Z data
Z Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1 20  96.7450m 13.6313 102 514.9  95.9057m 310.409
2 24.9  96.7488m 16.3475 103 519.8  95.8964m 313.332
3 29.8  96.7419m 19.1405 104 524.7  95.8914m 316.267
4 34.7  96.7171m 21.9771 105 529.6  95.8870m 319.205
5 39.6  96.7021m 24.8481 106 534.5  95.8837m 322.146
6 44.5  96.6815m 27.7389 107 539.4  95.8797m 325.084
7 49.4  96.6715m 30.6473 108 544.3  95.8721m 328.01
8 54.3  96.6749m 33.5697 109 549.2  95.8676m 330.945
9 59.2  96.6640m 36.4979 110 554.1  95.8642m 333.885
10 64.1  96.6536m 39.4307 111 559  95.8612m 336.826
11 69  96.6431m 42.3692 112 563.9  95.8565m 339.761
12 73.9  96.6327m 45.3115 113 568.8  95.8524m 342.697
13 78.8  96.6297m 48.2603 114 573.7  95.8486m 345.634
14 83.7  96.6162m 51.2063 115 578.6  95.8451m 348.573
15 88.6  96.6048m 54.155 116 583.5  95.8418m 351.511
16 93.5  96.5905m 57.1037 117 588.4  95.8387m 354.45
17 98.4  96.5822m 60.0571 118 593.3  95.8354m 357.389
18 103.3  96.5704m 63.009 119 598.2  95.8313m 360.324
19 108.2  96.5601m 65.9625 120 603.1  95.8267m 363.257
20 113.1  96.5489m 68.9157 121 608  95.8236m 366.195
21 118  96.5378m 71.8695 122 612.9  95.8206m 369.134
22 122.9  96.5257m 74.8227 123 617.8  95.8168m 372.069
23 127.8  96.5160m 77.7779 124 622.7  95.8133m 375.005
24 132.7  96.5057m 80.7327 125 627.6  95.8110m 377.946
25 137.6  96.4932m 83.6858 126 632.5  95.8074m 380.882
26 142.5  96.4822m 86.6398 127 637.4  95.8029m 383.813
27 147.4  96.4774m 89.5995 128 642.3  95.8011m 386.756
28 152.3  96.4614m 92.5488 129 647.2  95.8000m 389.701
29 157.2  96.4537m 95.505 130 652.1  95.7937m 392.624
30 162.1  96.4443m 98.4596 131 657  95.7920m 395.567
31 167  96.4333m 101.413 132 661.9  95.7909m 398.511
32 171.9  96.4253m 104.368 133 666.8  95.7864m 401.441
33 176.8  96.4156m 107.322 134 671.7  95.7841m 404.381
34 181.7  96.4052m 110.274 135 676.6  95.7809m 407.316
35 186.6  96.3943m 113.226 136 681.5  95.7786m 410.255
36 191.5  96.3843m 116.178 137 686.4  95.7761m 413.193
37 196.4  96.3754m 119.131 138 691.3  95.7732m 416.13
38 201.3  96.3645m 122.081 139 696.2  95.7705m 419.066
39 206.2  96.3538m 125.031 140 701.1  95.7677m 422.003
40 211.1  96.3448m 127.983 141 706  95.7653m 424.94
41 216  96.3344m 130.932 142 710.9  95.7629m 427.878
42 220.9  96.3252m 133.883 143 715.8  95.7604m 430.815
43 225.8  96.3159m 136.833 144 720.7  95.7583m 433.754
44 230.7  96.3068m 139.782 145 725.6  95.7557m 436.69
45 235.6  96.2960m 142.729 146 730.5  95.7530m 439.627
46 240.5  96.2872m 145.678 147 735.4  95.7512m 442.566
47 245.4  96.2781m 148.627 148 740.3  95.7495m 445.507
48 250.3  96.2749m 151.585 149 745.2  95.7465m 448.44
49 255.2  96.2607m 154.524 150 750.1  95.7446m 451.379
50 260.1  96.2539m 157.475 151 755  95.7419m 454.315
51 265  96.2427m 160.418 152 759.9  95.7398m 457.252
52 269.9  96.2369m 163.369 153 764.8  95.7384m 460.193
53 274.8  96.2282m 166.316 154 769.7  95.7360m 463.129
54 279.7  96.2194m 169.261 155 774.6  95.7347m 466.071
55 284.6  96.2100m 172.206 156 779.5  95.7329m 469.009
56 289.5  96.2031m 175.154 157 784.4  95.7308m 471.947
57 294.4  96.1948m 178.099 158 789.3  95.7300m 474.89
58 299.3  96.1857m 181.042 159 794.2  95.7271m 477.823
59 304.2  96.1746m 183.981 160 799.1  95.7251m 480.76
60 309.1  96.1679m 186.928 161 804  95.7234m 483.699
61 314  96.1590m 189.87 162 808.9  95.7222m 486.64
62 318.9  96.1508m 192.813 163 813.8  95.7206m 489.579
63 323.8  96.1428m 195.756 164 818.7  95.7192m 492.519
64 328.7  96.1348m 198.698 165 823.6  95.7178m 495.459
65 333.6  96.1278m 201.642 166 828.5  95.7166m 498.4
66 338.5  96.1202m 204.585 167 833.4  95.7148m 501.337
67 343.4  96.1128m 207.527 168 838.3  95.7147m 504.284
68 348.3  96.1051m 210.469 169 843.2  95.7118m 507.216
69 353.2  96.0969m 213.409 170 848.1  95.7103m 510.155
70 358.1  96.0921m 216.355 171 853  95.7088m 513.093
71 363  96.0841m 219.295 172 857.9  95.7077m 516.035
72 367.9  96.0765m 222.235 173 862.8  95.7073m 518.979
73 372.8  96.0696m 225.176 174 867.7  95.7055m 521.916
74 377.7  96.0623m 228.116 175 872.6  95.7044m 524.857
75 382.6  96.0556m 231.057 176 877.5  95.7033m 527.798
76 387.5  96.0496m 233.999 177 882.4  95.7023m 530.739
77 392.4  96.0436m 236.941 178 887.3  95.7000m 533.672
78 397.3  96.0373m 239.881 179 892.2  95.6998m 536.618
79 402.2  96.0311m 242.822 180 897.1  95.6997m 539.564
80 407.1  96.0242m 245.76 181 902  95.6984m 542.503
81 412  96.0174m 248.699 182 906.9  95.6969m 545.441
82 416.9  96.0130m 251.643 183 911.8  95.6958m 548.381
83 421.8  96.0061m 254.58 184 916.7  95.6949m 551.322
84 426.7  96.0000m 257.519 185 921.6  95.6941m 554.264
85 431.6  95.9951m 260.461 186 926.5  95.6933m 557.206
86 436.5  95.9880m 263.397 187 931.4  95.6932m 560.152
87 441.4  95.9817m 266.334 188 936.3  95.6917m 563.089
88 446.3  95.9808m 269.286 189 941.2  95.6908m 566.03
89 451.2  95.9725m 272.217 190 946.1  95.6908m 568.977
90 456.1  95.9667m 275.155 191 951  95.6897m 571.916
91 461  95.9581m 278.084 192 955.9  95.6891m 574.859
92 465.9  95.9570m 281.035 193 960.8  95.6881m 577.799
93 470.8  95.9509m 283.971 194 965.7  95.6854m 580.729
94 475.7  95.9466m 286.912 195 970.6  95.6853m 583.674
95 480.6  95.9410m 289.849 196 975.5  95.6857m 586.623
96 485.5  95.9362m 292.788 197 980.4  95.6846m 589.563
97 490.4  95.9318m 295.727 198 985.3  95.6850m 592.511
98 495.3  95.9276m 298.668 199 990.2  95.6837m 595.449
99 500.2  95.9209m 301.6 200 995.1  95.6831m 598.392
100 505.1  95.9160m 304.537 201  1.00000k  95.6818m 601.33
101 510  95.9108m 307.473 　 　 　 　
Table 10 Z axis Detailed frequency data of inductance Ls and reactance Z



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2026

Get A Quote!
녕
