AC Helmholtz Coil System: 3DXHDC25-1 3D Helmholtz Coils + Power Amplifier + Signal Generator + Control Software

Home  ꄲ  Dexinmag News  ꄲ  Measurement System  ꄲ  AC Helmholtz Coil System: 3DXHDC25-1 3D Helmholtz Coils + Power Amplifier + Signal Generator + Control Software

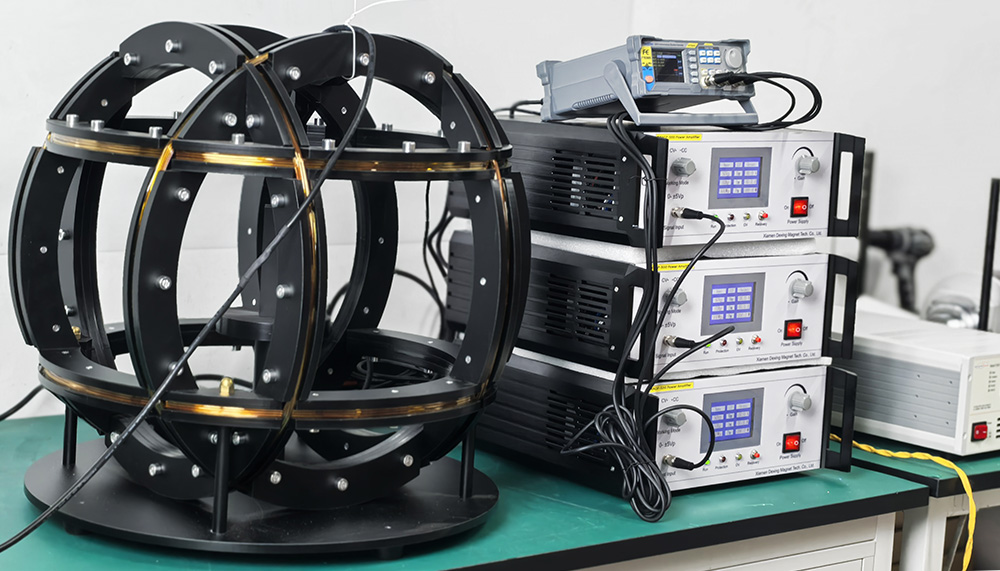

AC Helmholtz coils system P1 AC Helmholtz coils system P2 AC Helmholtz coils system P3

AC Helmholtz coils system, which consists of a 3DXHDC25-1 Helmholtz coil, 3 sets of power amplifiers, a signal generator and the software.





Parameters



3DXHDC25-1 3D Helmholtz coils

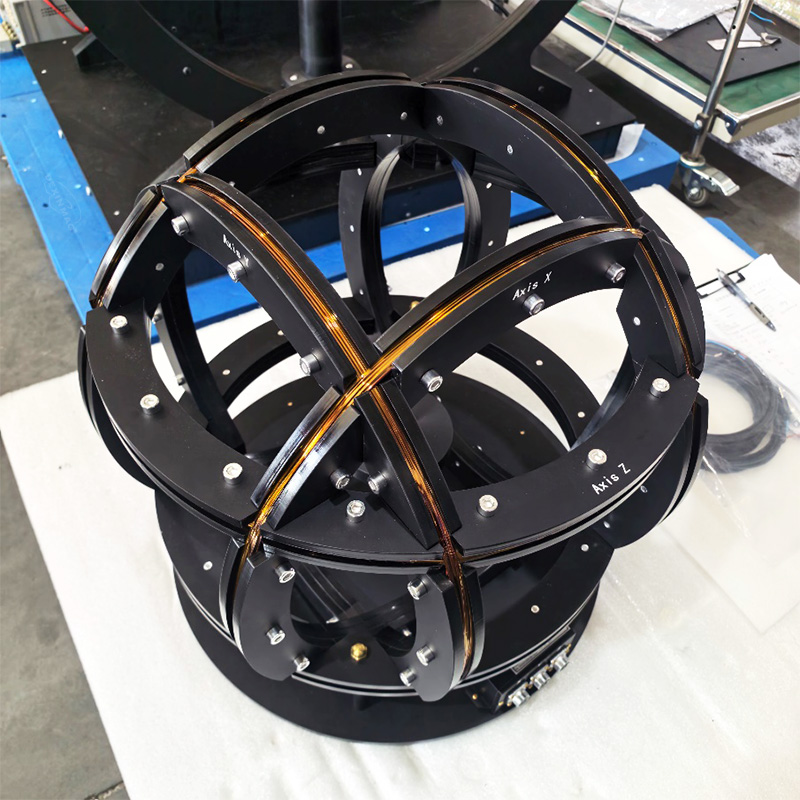

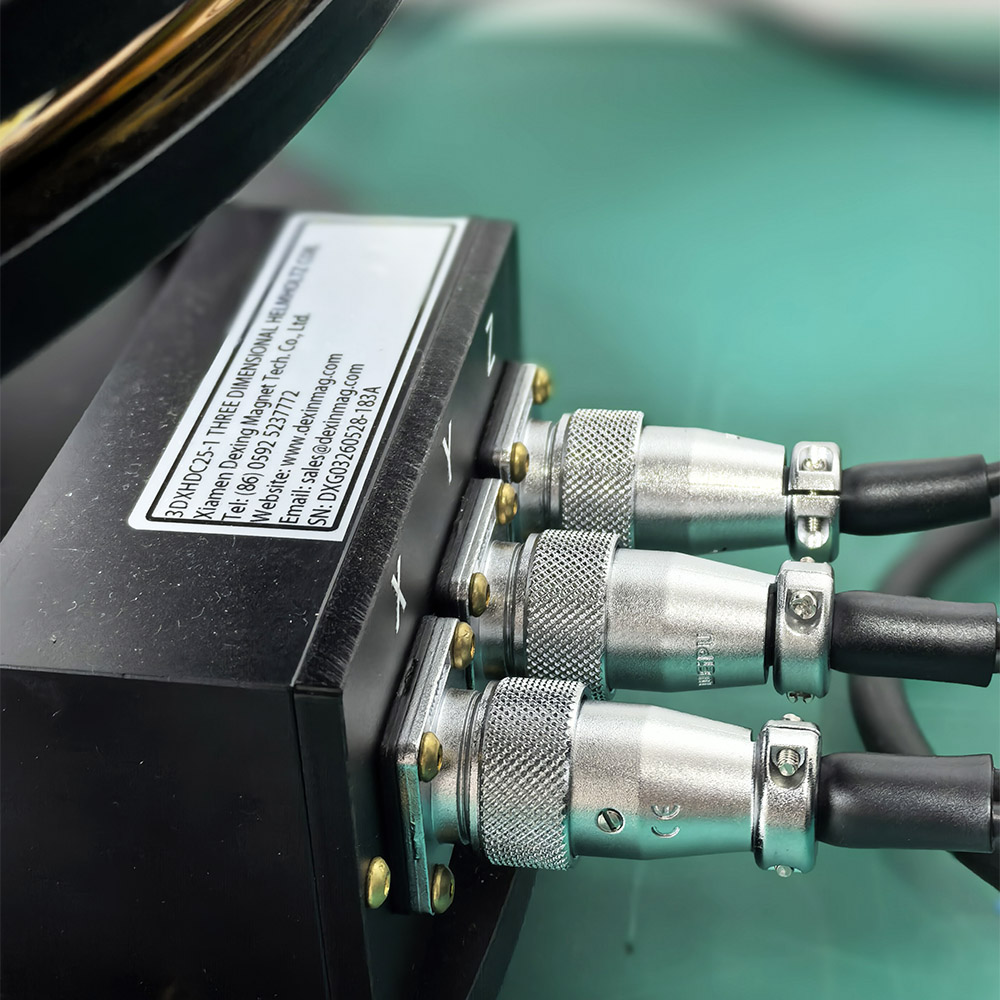

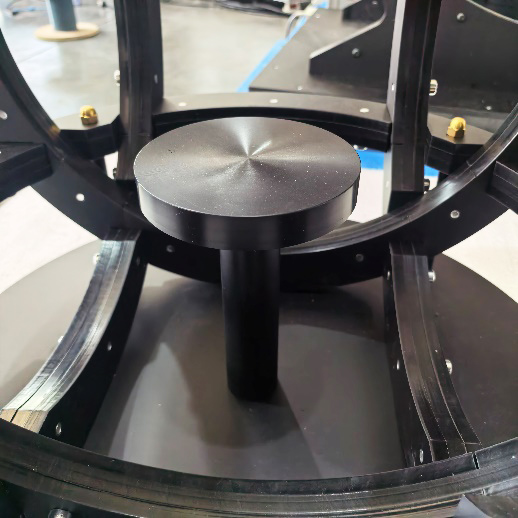

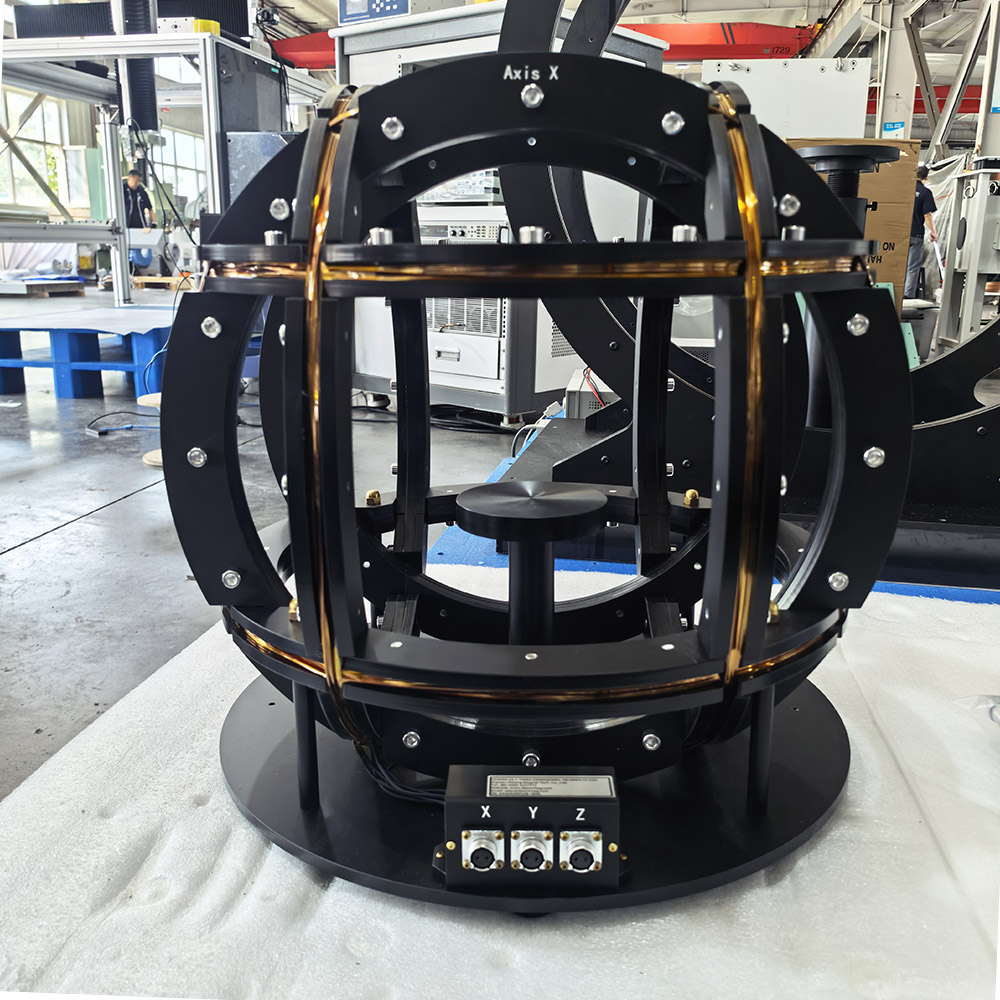

3DXHDC25-1 3D Equal-Diameter Helmholtz Coils P1 3DXHDC25-1 3D Equal-Diameter Helmholtz Coils P2 3DXHDC25-1 3D Equal-Diameter Helmholtz Coils P3 3DXHDC25-1 3D Equal-Diameter Helmholtz Coils P4



3D Helmholtz Coil

Model

3DXHDC25-1



Z

Y

X

Equivalent diameter (mm)

500

500

500

Usage space (mm)

220

220

220

Center magnetic field (Gs)

1

1

1

Uniformity area ball (mm)

125

125

125

Uniformity degree

1.00%

1.00%

1.00%

Current (A)

7

7

7

Cold state resistance (Ω)

0.55

0.55

0.55

Estimated inductance (mH)

0.12

0.12

0.12

Frequency (Hz)

7kHz

7kHz

7kHz

Hot state voltage (V) 80℃

50

50

50

Working time (min)

30

30

30

Cooling method

Natural

Material

PMMA

Color

Black

Weight (kg)

18

Size

510*510*520

Power (W)

10A50V

10A50V

10A50V

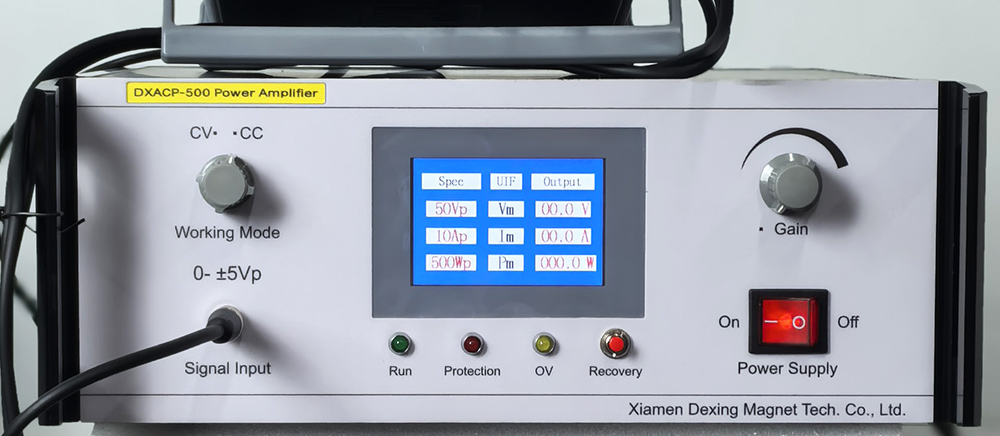

AC excitation power supply



AC excitation power supply



Model

DXACP-500

Max.output current

10A (single peak value)

Max.output voltage

50V (single peak value)

Working frequency range

0-10kHz

Nonlinear distortion

＜0.5%

Output signal-to-noise ratio

＞76dB

Working temperature

0-40℃

Working humidity

＜80%R.H

Input power

220V AC±10% 50Hz

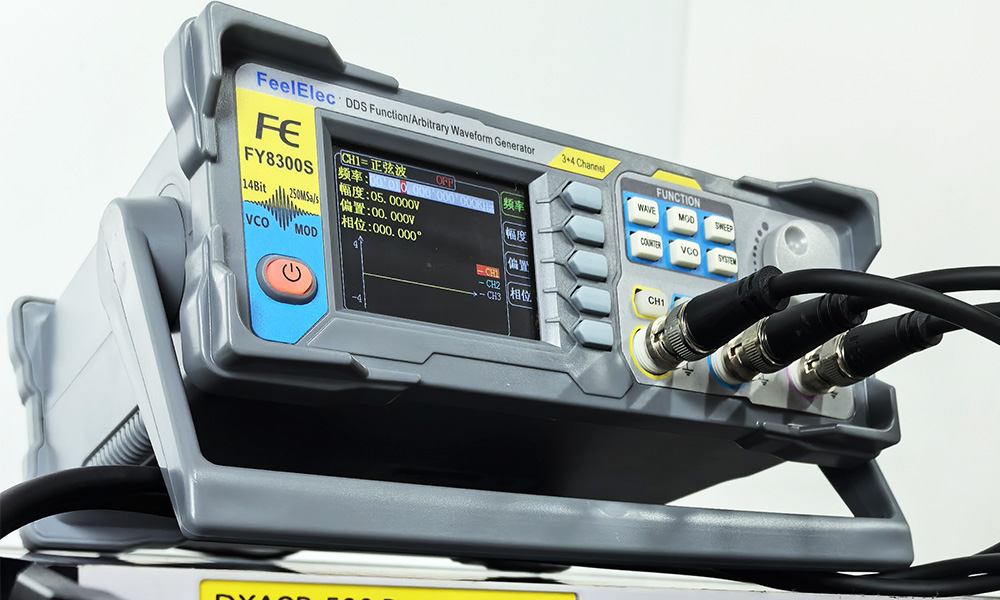

Signal generator



 Signal generator



· Arbitrary Waveform Function Signal Generator

· Model: FY8300S

· Three-channel output, can work synchronously, and the phase difference is precisely adjustable

· Can output 98 groups of function/arbitrary waveforms, including 34 groups of preset waveforms and 64 groups of user-defined waveforms

· Output amplitude 24Vpp, amplitude resolution 1mV

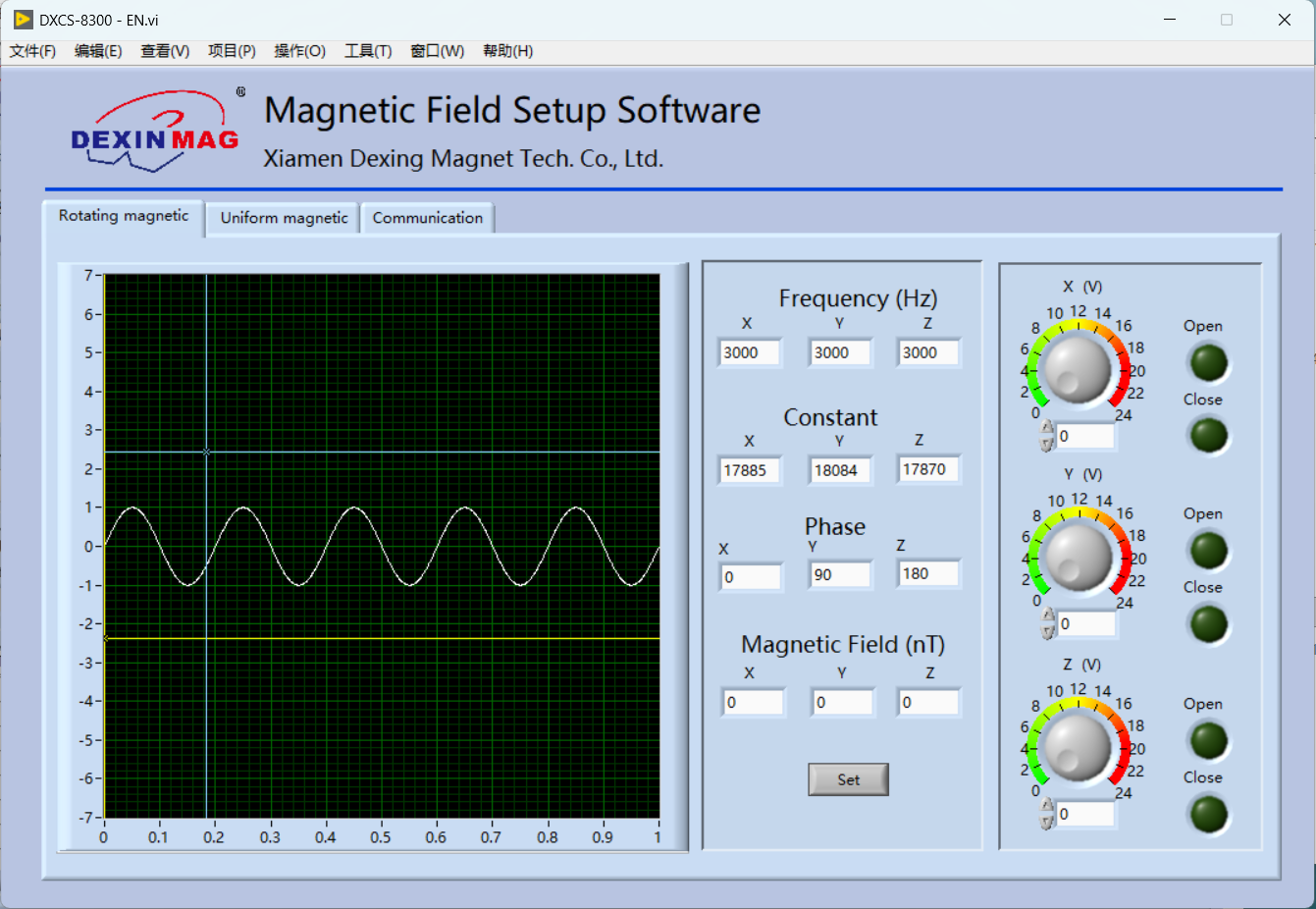

Control software



magnetic field control software







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
3D Equal-Diameter Helmholtz Coils		 Product model: 3DXHDC25-1
Test time: July 1, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment
temperature		 Product initial
temperature		 Lead length Environmental
magnetic field
20.0℃ 20.0℃ - 0~30000nT
Table 1: Measurement environment data
Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 gaussmeter
DX-33OF Fluxgate Magnetometer
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
No. Display current (A) Display voltage (V) Magnetic field
strength（nT）
X Axis 7 - 100153.2
Y Axis 7 - 100184.7
Z Axis 7 - 100606.5
No. Display current (Ap) Display voltage (Vp) Magnetic field
strength（nT）
X-axis / Y-axis / Z-axis 7（3KHz） 7.4 -
7（7KHz） 17.1 -
Table 2: Magnetic field strength data



Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
X Axis 20*20*20mm 7A 100153.2nT 100164.4nT 100138.8nT -0.014%
Coordinates Magnetic Field Strength (nT)
(0,0,0) 100153.2
(-10,0,0) 100156.9
(-10,-10,0) 100155.5
(0,-10,0) 100150.2
(10,-10,0) 100149.9
(10,0,0) 100161.8
(10,10,0) 100143.8
(0,10,0) 100150.3
(-10,10,0) 100157.7
(0,0,10) 100156.6
(-10,0,10) 100153.3
(-10,-10,10) 100157.4
(0,-10,10) 100161.4
(10,-10,10) 100159.9
(10,0,10) 100157.4
(10,10,10) 100154
(0,10,10) 100145.4
(-10,10,10) 100163.2
(0,0,-10) 100158.4
(-10,0,-10) 100144.5
(-10,-10,-10) 100156.2
(0,-10,-10) 100151.2
(10,-10,-10) 100155
(10,0,-10) 100164.4
(10,10,-10) 100150
(0,10,-10) 100152.6
(-10,10,-10) 100138.8
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
Y Axis 20*20*20mm 7A 100184.7nT 100194.3nT 100172.5nT -0.012%
Coordinates Magnetic Field Strength (nT)
(0,0,0) 100184.7
(-10,0,0) 100179.8
(-10,-10,0) 100188
(0,-10,0) 100184.1
(10,-10,0) 100185.8
(10,0,0) 100194.3
(10,10,0) 100190.5
(0,10,0) 100183.2
(-10,10,0) 100194.1
(0,0,10) 100182.4
(-10,0,10) 100186.4
(-10,-10,10) 100193.7
(0,-10,10) 100183.6
(10,-10,10) 100172.5
(10,0,10) 100187.6
(10,10,10) 100184.8
(0,10,10) 100194.3
(-10,10,10) 100185.6
(0,0,-10) 100191.2
(-10,0,-10) 100193.7
(-10,-10,-10) 100185.2
(0,-10,-10) 100193.1
(10,-10,-10) 100181.9
(10,0,-10) 100180.5
(10,10,-10) 100194.2
(0,10,-10) 100184.3
(-10,10,-10) 100191.5
Magnetic field uniformity
No. Area Current Central Maximum Minimum Uniformity
Z Axis 20*20*20mm 7A 100606.5nT 100617.9nT 100593.9nT -0.012%
Coordinates Magnetic Field Strength nT)
(0,0,0) 100606.5
(-10,0,0) 100604.4
(-10,-10,0) 100608.4
(0,-10,0) 100598.8
(10,-10,0) 100593.9
(10,0,0) 100601.7
(10,10,0) 100603.4
(0,10,0) 100599.6
(-10,10,0) 100607.3
(0,0,10) 100599.3
(-10,0,10) 100602.3
(-10,-10,10) 100606.8
(0,-10,10) 100617.9
(10,-10,10) 100602.1
(10,0,10) 100601.5
(10,10,10) 100614.4
(0,10,10) 100605
(-10,10,10) 100607.4
(0,0,-10) 100599.4
(-10,0,-10) 100613.6
(-10,-10,-10) 100616
(0,-10,-10) 100608.2
(10,-10,-10) 100608.5
(10,0,-10) 100606.5
(10,10,-10) 100602.3
(0,10,-10) 100608.1
(-10,10,-10) 100607.6
Table 3: Uniformity data
　
Magnetic Field Orthogonality Angle
　 3D Fluxgate Reading 　 Angle (°) Offset (°) Remarks
X axis -28839.6 -710.6 603 X-Y angle 90.0554006 -0.0554006 　
Y axis -331 28895.6 1075.2 X-Z angle 89.9880889 0.01191112 　
Z Axis -614 1132 -28476.2 Y-Z angle 90.0013224 -0.0013224 　
Table 4: Magnetic Field Orthogonality Angle Data



Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
No. Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
X axis 20.0℃ 0.156Ω 0.156Ω 0.203Ω
Y axis 20.0℃ 0.156Ω 0.156Ω 0.203Ω
Z axis 20.0℃ 0.155Ω 0.155Ω 0.201Ω
Table 5 Resistance R data



X Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 52.2161u  6.98000k  52.6144u  3.00000k
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
1.00637  3.00000k 2.30425  7.00000k
Table 6: X-axis inductance Ls and reactance Z data
　
X Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1  3.00000k  52.6144u 1.00637 102  5.02000k  52.3823u 1.66159
2  3.02000k  52.6089u 1.01272 103  5.04000k  52.3808u 1.66809
3  3.04000k  52.6140u 1.01933 104  5.06000k  52.3790u 1.6746
4  3.06000k  52.6130u 1.02589 105  5.08000k  52.3812u 1.68127
5  3.08000k  52.5947u 1.03188 106  5.10000k  52.3732u 1.68756
6  3.10000k  52.5687u 1.03751 107  5.12000k  52.3765u 1.69421
7  3.12000k  52.5438u 1.04352 108  5.14000k  52.3707u 1.70059
8  3.14000k  52.5536u 1.05025 109  5.16000k  52.3653u 1.70696
9  3.16000k  52.5559u 1.05678 110  5.18000k  52.3721u 1.71371
10  3.18000k  52.5414u 1.06306 111  5.20000k  52.3662u 1.72006
11  3.20000k  52.5427u 1.06956 112  5.22000k  52.3688u 1.72674
12  3.22000k  52.5505u 1.07627 113  5.24000k  52.3723u 1.73342
13  3.24000k  52.5237u 1.08223 114  5.26000k  52.3685u 1.73986
14  3.26000k  52.5345u 1.08902 115  5.28000k  52.3524u 1.74588
15  3.28000k  52.5186u 1.09518 116  5.30000k  52.3594u 1.75266
16  3.30000k  52.5218u 1.10186 117  5.32000k  52.3640u 1.75939
17  3.32000k  52.5297u 1.10852 118  5.34000k  52.3575u 1.76571
18  3.34000k  52.5329u 1.11513 119  5.36000k  52.3512u 1.77206
19  3.36000k  52.5219u 1.12143 120  5.38000k  52.3568u 1.77884
20  3.38000k  52.5294u 1.12816 121  5.40000k  52.3522u 1.7852
21  3.40000k  52.5176u 1.13443 122  5.42000k  52.3568u 1.79185
22  3.42000k  52.5175u 1.14094 123  5.44000k  52.3479u 1.79812
23  3.44000k  52.5127u 1.14742 124  5.46000k  52.3541u 1.80492
24  3.46000k  52.5161u 1.15403 125  5.48000k  52.3506u 1.81135
25  3.48000k  52.5230u 1.16074 126  5.50000k  52.3369u 1.81743
26  3.50000k  52.5086u 1.16698 127  5.52000k  52.3440u 1.82422
27  3.52000k  52.5118u 1.17354 128  5.54000k  52.3391u 1.8306
28  3.54000k  52.5091u 1.18004 129  5.56000k  52.3458u 1.83741
29  3.56000k  52.5112u 1.18663 130  5.58000k  52.3389u 1.84372
30  3.58000k  52.5040u 1.19303 131  5.60000k  52.3313u 1.85002
31  3.60000k  52.5056u 1.19961 132  5.62000k  52.3279u 1.85645
32  3.62000k  52.5090u 1.20624 133  5.64000k  52.3344u 1.86325
33  3.64000k  52.5081u 1.21277 134  5.66000k  52.3353u 1.86983
34  3.66000k  52.4987u 1.21904 135  5.68000k  52.3317u 1.87625
35  3.68000k  52.4931u 1.22546 136  5.70000k  52.3273u 1.88268
36  3.70000k  52.4975u 1.2321 137  5.72000k  52.3297u 1.88929
37  3.72000k  52.4854u 1.23835 138  5.74000k  52.3220u 1.89558
38  3.74000k  52.4860u 1.24492 139  5.76000k  52.3242u 1.90222
39  3.76000k  52.4864u 1.25149 140  5.78000k  52.3172u 1.90852
40  3.78000k  52.4905u 1.25812 141  5.80000k  52.3173u 1.91507
41  3.80000k  52.4785u 1.26439 142  5.82000k  52.3196u 1.9217
42  3.82000k  52.4786u 1.27095 143  5.84000k  52.3128u 1.928
43  3.84000k  52.4853u 1.27765 144  5.86000k  52.3168u 1.93473
44  3.86000k  52.4870u 1.28425 145  5.88000k  52.3092u 1.94101
45  3.88000k  52.4802u 1.29061 146  5.90000k  52.3088u 1.94754
46  3.90000k  52.4859u 1.29733 147  5.92000k  52.3102u 1.95416
47  3.92000k  52.4768u 1.30365 148  5.94000k  52.3061u 1.96055
48  3.94000k  52.4765u 1.31019 149  5.96000k  52.3083u 1.96718
49  3.96000k  52.4799u 1.31682 150  5.98000k  52.3023u 1.97351
50  3.98000k  52.4712u 1.32315 151  6.00000k  52.3055u 1.98019
51  4.00000k  52.4661u 1.32956 152  6.02000k  52.2975u 1.98647
52  4.02000k  52.4684u 1.33619 153  6.04000k  52.3019u 1.99319
53  4.04000k  52.4593u 1.34251 154  6.06000k  52.3023u 1.99976
54  4.06000k  52.4684u 1.3493 155  6.08000k  52.2938u 2.006
55  4.08000k  52.4548u 1.35549 156  6.10000k  52.2922u 2.01248
56  4.10000k  52.4601u 1.36224 157  6.12000k  52.2909u 2.01899
57  4.12000k  52.4619u 1.3688 158  6.14000k  52.2929u 2.02561
58  4.14000k  52.4602u 1.37532 159  6.16000k  52.2869u 2.03192
59  4.16000k  52.4595u 1.38184 160  6.18000k  52.2865u 2.03847
60  4.18000k  52.4503u 1.38815 161  6.20000k  52.2856u 2.04501
61  4.20000k  52.4515u 1.39477 162  6.22000k  52.2847u 2.05152
62  4.22000k  52.4453u 1.40114 163  6.24000k  52.2732u 2.05763
63  4.24000k  52.4450u 1.40769 164  6.26000k  52.2754u 2.06425
64  4.26000k  52.4462u 1.4143 165  6.28000k  52.2749u 2.07079
65  4.28000k  52.4453u 1.42082 166  6.30000k  52.2780u 2.07748
66  4.30000k  52.4441u 1.42735 167  6.32000k  52.2710u 2.08375
67  4.32000k  52.4264u 1.43344 168  6.34000k  52.2645u 2.09009
68  4.34000k  52.4378u 1.44031 169  6.36000k  52.2705u 2.09684
69  4.36000k  52.4363u 1.4468 170  6.38000k  52.2673u 2.10328
70  4.38000k  52.4314u 1.45321 171  6.40000k  52.2651u 2.10976
71  4.40000k  52.4333u 1.45983 172  6.42000k  52.2622u 2.11621
72  4.42000k  52.4271u 1.46624 173  6.44000k  52.2628u 2.12276
73  4.44000k  52.4205u 1.47256 174  6.46000k  52.2605u 2.12923
74  4.46000k  52.4317u 1.47947 175  6.48000k  52.2624u 2.13588
75  4.48000k  52.4353u 1.48612 176  6.50000k  52.2605u 2.14232
76  4.50000k  52.4286u 1.49249 177  6.52000k  52.2560u 2.14873
77  4.52000k  52.4265u 1.49901 178  6.54000k  52.2591u 2.15539
78  4.54000k  52.4227u 1.50545 179  6.56000k  52.2546u 2.16176
79  4.56000k  52.4257u 1.51209 180  6.58000k  52.2544u 2.16831
80  4.58000k  52.4283u 1.51875 181  6.60000k  52.2523u 2.17479
81  4.60000k  52.4222u 1.52513 182  6.62000k  52.2491u 2.18118
82  4.62000k  52.4151u 1.53146 183  6.64000k  52.2401u 2.18738
83  4.64000k  52.4133u 1.53795 184  6.66000k  52.2389u 2.19388
84  4.66000k  52.4101u 1.54444 185  6.68000k  52.2496u 2.20087
85  4.68000k  52.4088u 1.55095 186  6.70000k  52.2412u 2.20706
86  4.70000k  52.4038u 1.55734 187  6.72000k  52.2433u 2.21369
87  4.72000k  52.4076u 1.564 188  6.74000k  52.2375u 2.22003
88  4.74000k  52.4033u 1.57048 189  6.76000k  52.2392u 2.22664
89  4.76000k  52.3952u 1.57676 190  6.78000k  52.2348u 2.23301
90  4.78000k  52.4045u 1.58363 191  6.80000k  52.2296u 2.23935
91  4.80000k  52.3981u 1.59 192  6.82000k  52.2281u 2.24582
92  4.82000k  52.3951u 1.59642 193  6.84000k  52.2282u 2.2524
93  4.84000k  52.3955u 1.60299 194  6.86000k  52.2282u 2.25891
94  4.86000k  52.4019u 1.60978 195  6.88000k  52.2285u 2.26549
95  4.88000k  52.3928u 1.61604 196  6.90000k  52.2218u 2.27177
96  4.90000k  52.3903u 1.62252 197  6.92000k  52.2167u 2.27808
97  4.92000k  52.3850u 1.6289 198  6.94000k  52.2196u 2.28478
98  4.94000k  52.3865u 1.6355 199  6.96000k  52.2186u 2.29127
99  4.96000k  52.3833u 1.64196 200  6.98000k  52.2161u 2.29774
100  4.98000k  52.3803u 1.64841 201  7.00000k  52.2162u 2.30425
101  5.00000k  52.3808u 1.65499 　 　 　 　
Table 7 X-axis Detailed frequency data of inductance Ls and reactance Z



Y Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 52.1624u  7.00000k  52.6170u  3.00000k
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
1.00754  3.00000k 2.30251  7.00000k
Table 8: Y-axis inductance Ls and reactance Z data
Y Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1  3.00000k  52.6170u 1.00754 102  5.02000k  52.3255u 1.66066
2  3.02000k  52.5123u 1.01178 103  5.04000k  52.3279u 1.66735
3  3.04000k  52.5088u 1.01818 104  5.06000k  52.3232u 1.67367
4  3.06000k  52.5158u 1.02479 105  5.08000k  52.3217u 1.68019
5  3.08000k  52.5008u 1.031 106  5.10000k  52.3308u 1.68699
6  3.10000k  52.5062u 1.03756 107  5.12000k  52.3170u 1.69312
7  3.12000k  52.5032u 1.04405 108  5.14000k  52.3198u 1.69974
8  3.14000k  52.5209u 1.05093 109  5.16000k  52.3280u 1.70656
9  3.16000k  52.4842u 1.05665 110  5.18000k  52.3139u 1.71266
10  3.18000k  52.4925u 1.06332 111  5.20000k  52.3121u 1.71917
11  3.20000k  52.4785u 1.06949 112  5.22000k  52.3103u 1.72564
12  3.22000k  52.4846u 1.07627 113  5.24000k  52.3031u 1.73191
13  3.24000k  52.4824u 1.08264 114  5.26000k  52.2942u 1.7382
14  3.26000k  52.4821u 1.08922 115  5.28000k  52.3089u 1.74517
15  3.28000k  52.4991u 1.096 116  5.30000k  52.3156u 1.75202
16  3.30000k  52.4801u 1.10211 117  5.32000k  52.2990u 1.75805
17  3.32000k  52.4813u 1.10873 118  5.34000k  52.3033u 1.76468
18  3.34000k  52.4822u 1.11524 119  5.36000k  52.3047u 1.77123
19  3.36000k  52.4818u 1.1218 120  5.38000k  52.2976u 1.77769
20  3.38000k  52.4682u 1.12801 121  5.40000k  52.3090u 1.78458
21  3.40000k  52.4809u 1.13477 122  5.42000k  52.2948u 1.79054
22  3.42000k  52.4674u 1.14101 123  5.44000k  52.3025u 1.79741
23  3.44000k  52.4674u 1.14751 124  5.46000k  52.2927u 1.80362
24  3.46000k  52.4650u 1.1541 125  5.48000k  52.2845u 1.80985
25  3.48000k  52.4730u 1.1608 126  5.50000k  52.2945u 1.81672
26  3.50000k  52.4532u 1.1669 127  5.52000k  52.2873u 1.82301
27  3.52000k  52.4641u 1.17363 128  5.54000k  52.2942u 1.82981
28  3.54000k  52.4522u 1.17992 129  5.56000k  52.2861u 1.8361
29  3.56000k  52.4542u 1.18644 130  5.58000k  52.2854u 1.8426
30  3.58000k  52.4533u 1.193 131  5.60000k  52.2773u 1.84885
31  3.60000k  52.4576u 1.19969 132  5.62000k  52.2851u 1.85569
32  3.62000k  52.4581u 1.20621 133  5.64000k  52.2720u 1.86181
33  3.64000k  52.4602u 1.21277 134  5.66000k  52.2723u 1.86832
34  3.66000k  52.4512u 1.21912 135  5.68000k  52.2615u 1.87456
35  3.68000k  52.4518u 1.22569 136  5.70000k  52.2726u 1.88146
36  3.70000k  52.4509u 1.23217 137  5.72000k  52.2704u 1.8879
37  3.72000k  52.4395u 1.23844 138  5.74000k  52.2798u 1.89482
38  3.74000k  52.4487u 1.24516 139  5.76000k  52.2734u 1.9011
39  3.76000k  52.4430u 1.25159 140  5.78000k  52.2640u 1.90732
40  3.78000k  52.4473u 1.25821 141  5.80000k  52.2730u 1.9142
41  3.80000k  52.4468u 1.26471 142  5.82000k  52.2642u 1.92046
42  3.82000k  52.4263u 1.2708 143  5.84000k  52.2593u 1.9268
43  3.84000k  52.4350u 1.27754 144  5.86000k  52.2666u 1.93358
44  3.86000k  52.4255u 1.28387 145  5.88000k  52.2556u 1.93977
45  3.88000k  52.4325u 1.29055 146  5.90000k  52.2503u 1.94611
46  3.90000k  52.4247u 1.29691 147  5.92000k  52.2518u 1.95271
47  3.92000k  52.4249u 1.30346 148  5.94000k  52.2478u 1.95911
48  3.94000k  52.4169u 1.30976 149  5.96000k  52.2509u 1.96578
49  3.96000k  52.4202u 1.31641 150  5.98000k  52.2556u 1.97247
50  3.98000k  52.4183u 1.32291 151  6.00000k  52.2551u 1.979
51  4.00000k  52.4214u 1.32964 152  6.02000k  52.2489u 1.98532
52  4.02000k  52.4173u 1.33594 153  6.04000k  52.2437u 1.99168
53  4.04000k  52.4118u 1.34233 154  6.06000k  52.2420u 1.9982
54  4.06000k  52.4191u 1.34909 155  6.08000k  52.2355u 2.00449
55  4.08000k  52.3948u 1.35501 156  6.10000k  52.2412u 2.01125
56  4.10000k  52.4046u 1.36183 157  6.12000k  52.2374u 2.01765
57  4.12000k  52.4136u 1.3686 158  6.14000k  52.2329u 2.024
58  4.14000k  52.3965u 1.37468 159  6.16000k  52.2360u 2.03069
59  4.16000k  52.4017u 1.38133 160  6.18000k  52.2345u 2.03718
60  4.18000k  52.3923u 1.38765 161  6.20000k  52.2233u 2.0433
61  4.20000k  52.4086u 1.39462 162  6.22000k  52.2260u 2.04995
62  4.22000k  52.3963u 1.40086 163  6.24000k  52.2321u 2.05669
63  4.24000k  52.3954u 1.40736 164  6.26000k  52.2317u 2.06322
64  4.26000k  52.3993u 1.414 165  6.28000k  52.2232u 2.06944
65  4.28000k  52.3824u 1.42011 166  6.30000k  52.2201u 2.07589
66  4.30000k  52.3957u 1.42707 167  6.32000k  52.2108u 2.08206
67  4.32000k  52.4045u 1.43381 168  6.34000k  52.2117u 2.08863
68  4.34000k  52.3888u 1.43992 169  6.36000k  52.2176u 2.09543
69  4.36000k  52.3819u 1.44631 170  6.38000k  52.2162u 2.10192
70  4.38000k  52.3902u 1.45308 171  6.40000k  52.2144u 2.10835
71  4.40000k  52.3735u 1.45918 172  6.42000k  52.2092u 2.11469
72  4.42000k  52.4258u 1.46721 173  6.44000k  52.2047u 2.12107
73  4.44000k  52.4164u 1.47346 174  6.46000k  52.2130u 2.12795
74  4.46000k  52.3759u 1.4788 175  6.48000k  52.2104u 2.13443
75  4.48000k  52.3724u 1.48535 176  6.50000k  52.2005u 2.14055
76  4.50000k  52.3692u 1.49176 177  6.52000k  52.1964u 2.14693
77  4.52000k  52.3746u 1.49843 178  6.54000k  52.2004u 2.15363
78  4.54000k  52.3704u 1.50493 179  6.56000k  52.1918u 2.15981
79  4.56000k  52.3665u 1.51133 180  6.58000k  52.1966u 2.16656
80  4.58000k  52.3605u 1.51769 181  6.60000k  52.2021u 2.17332
81  4.60000k  52.3650u 1.52438 182  6.62000k  52.1918u 2.17943
82  4.62000k  52.3578u 1.5307 183  6.64000k  52.1919u 2.18603
83  4.64000k  52.3679u 1.53754 184  6.66000k  52.1847u 2.19226
84  4.66000k  52.3557u 1.54373 185  6.68000k  52.1925u 2.1991
85  4.68000k  52.3661u 1.55059 186  6.70000k  52.1872u 2.20543
86  4.70000k  52.3424u 1.55642 187  6.72000k  52.1783u 2.21161
87  4.72000k  52.3480u 1.56309 188  6.74000k  52.1834u 2.21837
88  4.74000k  52.3487u 1.56974 189  6.76000k  52.1807u 2.22481
89  4.76000k  52.3494u 1.57625 190  6.78000k  52.1767u 2.23118
90  4.78000k  52.3581u 1.5831 191  6.80000k  52.1787u 2.23777
91  4.80000k  52.3374u 1.58901 192  6.82000k  52.1771u 2.24427
92  4.82000k  52.3515u 1.59598 193  6.84000k  52.1721u 2.25063
93  4.84000k  52.3463u 1.60242 194  6.86000k  52.1683u 2.25697
94  4.86000k  52.3307u 1.60844 195  6.88000k  52.1778u 2.26395
95  4.88000k  52.3350u 1.61511 196  6.90000k  52.1755u 2.27036
96  4.90000k  52.3380u 1.62172 197  6.92000k  52.1665u 2.27652
97  4.92000k  52.3446u 1.62853 198  6.94000k  52.1678u 2.28319
98  4.94000k  52.3367u 1.63484 199  6.96000k  52.1653u 2.28959
99  4.96000k  52.3354u 1.64137 200  6.98000k  52.1659u 2.29613
100  4.98000k  52.3378u 1.64799 201  7.00000k  52.1624u 2.30251
101  5.00000k  52.3314u 1.65432 　 　 　 　
Table 9: Y-axis Detailed frequency data of inductance Ls and reactance Z



Z Axis Inductance Ls, reactance Z measurement (test level 5V)
Ls MIN[H] FREQ[Hz] Ls MAX[H] FREQ[Hz]
 51.9466u  6.96000k  52.2822u  3.00000k
Z  MIN[Ω] FREQ[Hz] Z  MAX[Ω] FREQ[Hz]
0.999  3.00000k 2.29256  7.00000k
Table 10 Z-axis inductance Ls and reactance Z data
Z Axis Inductance Ls, reactance Z-scan measurement
POINTS FREQ[Hz] Ls Z  POINTS FREQ[Hz] Ls Z
1  3.00000k  52.2822u 0.999 102  5.02000k  52.1184u 1.65307
2  3.02000k  52.2691u 1.0052 103  5.04000k  52.1069u 1.6592
3  3.04000k  52.2731u 1.01172 104  5.06000k  52.0959u 1.66539
4  3.06000k  52.2732u 1.01824 105  5.08000k  52.1064u 1.67222
5  3.08000k  52.2703u 1.02472 106  5.10000k  52.0930u 1.67835
6  3.10000k  52.2654u 1.03108 107  5.12000k  52.0905u 1.68477
7  3.12000k  52.2647u 1.0376 108  5.14000k  52.1054u 1.69176
8  3.14000k  52.2472u 1.04372 109  5.16000k  52.0913u 1.69784
9  3.16000k  52.2470u 1.0503 110  5.18000k  52.1012u 1.70469
10  3.18000k  52.2714u 1.05718 111  5.20000k  52.1040u 1.71131
11  3.20000k  52.2674u 1.06368 112  5.22000k  52.0930u 1.71749
12  3.22000k  52.2645u 1.07014 113  5.24000k  52.1067u 1.72445
13  3.24000k  52.2513u 1.07631 114  5.26000k  52.0883u 1.73039
14  3.26000k  52.2577u 1.08293 115  5.28000k  52.0851u 1.7368
15  3.28000k  52.2522u 1.08934 116  5.30000k  52.0880u 1.74342
16  3.30000k  52.2587u 1.09596 117  5.32000k  52.1005u 1.75035
17  3.32000k  52.2539u 1.10237 118  5.34000k  52.0777u 1.7561
18  3.34000k  52.2484u 1.1088 119  5.36000k  52.0696u 1.76238
19  3.36000k  52.2349u 1.11501 120  5.38000k  52.0772u 1.76913
20  3.38000k  52.2375u 1.12154 121  5.40000k  52.0827u 1.77585
21  3.40000k  52.2542u 1.12848 122  5.42000k  52.0680u 1.78183
22  3.42000k  52.2290u 1.13446 123  5.44000k  52.0776u 1.78866
23  3.44000k  52.2436u 1.14121 124  5.46000k  52.0757u 1.79511
24  3.46000k  52.2335u 1.14757 125  5.48000k  52.0786u 1.80174
25  3.48000k  52.2346u 1.15402 126  5.50000k  52.0702u 1.80797
26  3.50000k  52.2254u 1.16032 127  5.52000k  52.0631u 1.81427
27  3.52000k  52.2273u 1.1669 128  5.54000k  52.0668u 1.82092
28  3.54000k  52.2259u 1.17337 129  5.56000k  52.0663u 1.82746
29  3.56000k  52.2208u 1.17979 130  5.58000k  52.0682u 1.83401
30  3.58000k  52.2192u 1.18626 131  5.60000k  52.0597u 1.84023
31  3.60000k  52.2288u 1.193 132  5.62000k  52.0568u 1.84666
32  3.62000k  52.2115u 1.1991 133  5.64000k  52.0515u 1.85301
33  3.64000k  52.2179u 1.20576 134  5.66000k  52.0617u 1.85989
34  3.66000k  52.2128u 1.21212 135  5.68000k  52.0437u 1.86579
35  3.68000k  52.2122u 1.21865 136  5.70000k  52.0541u 1.87266
36  3.70000k  52.2190u 1.22536 137  5.72000k  52.0553u 1.87921
37  3.72000k  52.2122u 1.23169 138  5.74000k  52.0621u 1.886
38  3.74000k  52.2025u 1.23802 139  5.76000k  52.0585u 1.89237
39  3.76000k  52.2082u 1.24462 140  5.78000k  52.0502u 1.8986
40  3.78000k  52.2049u 1.25109 141  5.80000k  52.0516u 1.90517
41  3.80000k  52.2001u 1.25746 142  5.82000k  52.0505u 1.91168
42  3.82000k  52.2037u 1.26406 143  5.84000k  52.0470u 1.91806
43  3.84000k  52.1975u 1.27042 144  5.86000k  52.0467u 1.92458
44  3.86000k  52.2077u 1.27716 145  5.88000k  52.0408u 1.93087
45  3.88000k  52.1942u 1.28339 146  5.90000k  52.0500u 1.93774
46  3.90000k  52.2038u 1.29015 147  5.92000k  52.0308u 1.94355
47  3.92000k  52.1944u 1.29644 148  5.94000k  52.0333u 1.95017
48  3.94000k  52.1899u 1.30282 149  5.96000k  52.0427u 1.95702
49  3.96000k  52.1956u 1.30947 150  5.98000k  52.0313u 1.96314
50  3.98000k  52.1863u 1.3158 151  6.00000k  52.0332u 1.96978
51  4.00000k  52.2109u 1.32295 152  6.02000k  52.0305u 1.97617
52  4.02000k  52.2027u 1.32922 153  6.04000k  52.0262u 1.98252
53  4.04000k  52.1790u 1.33516 154  6.06000k  52.0276u 1.9891
54  4.06000k  52.1804u 1.3417 155  6.08000k  52.0327u 1.99575
55  4.08000k  52.1756u 1.34811 156  6.10000k  52.0270u 2.0021
56  4.10000k  52.1798u 1.35469 157  6.12000k  52.0196u 2.00834
57  4.12000k  52.1735u 1.36106 158  6.14000k  52.0197u 2.01484
58  4.14000k  52.1678u 1.36743 159  6.16000k  52.0176u 2.02131
59  4.16000k  52.1798u 1.3743 160  6.18000k  52.0159u 2.02775
60  4.18000k  52.1600u 1.38029 161  6.20000k  52.0194u 2.03442
61  4.20000k  52.1570u 1.38672 162  6.22000k  52.0188u 2.04091
62  4.22000k  52.1723u 1.39366 163  6.24000k  52.0263u 2.04779
63  4.24000k  52.1612u 1.3999 164  6.26000k  52.0126u 2.05374
64  4.26000k  52.1634u 1.40647 165  6.28000k  52.0108u 2.06018
65  4.28000k  52.1588u 1.41288 166  6.30000k  52.0033u 2.0664
66  4.30000k  52.1647u 1.41953 167  6.32000k  51.9986u 2.07271
67  4.32000k  52.1586u 1.42589 168  6.34000k  52.0061u 2.07955
68  4.34000k  52.1587u 1.4324 169  6.36000k  51.9997u 2.08577
69  4.36000k  52.1542u 1.43883 170  6.38000k  52.0012u 2.09242
70  4.38000k  52.1656u 1.44569 171  6.40000k  52.0056u 2.09908
71  4.40000k  52.1544u 1.45184 172  6.42000k  52.0095u 2.10574
72  4.42000k  52.1469u 1.45822 173  6.44000k  51.9944u 2.11168
73  4.44000k  52.1525u 1.46484 174  6.46000k  51.9915u 2.11809
74  4.46000k  52.1445u 1.47118 175  6.48000k  51.9915u 2.12461
75  4.48000k  52.1477u 1.47778 176  6.50000k  51.9930u 2.13117
76  4.50000k  52.1451u 1.48421 177  6.52000k  51.9910u 2.13764
77  4.52000k  52.1506u 1.49089 178  6.54000k  51.9798u 2.14369
78  4.54000k  52.1391u 1.49712 179  6.56000k  51.9878u 2.15054
79  4.56000k  52.1412u 1.50369 180  6.58000k  51.9821u 2.15683
80  4.58000k  52.1401u 1.51017 181  6.60000k  51.9734u 2.16299
81  4.60000k  52.1400u 1.51673 182  6.62000k  51.9790u 2.16978
82  4.62000k  52.1329u 1.52302 183  6.64000k  51.9757u 2.17613
83  4.64000k  52.1268u 1.52934 184  6.66000k  51.9742u 2.18257
84  4.66000k  52.1314u 1.53601 185  6.68000k  51.9626u 2.18861
85  4.68000k  52.1381u 1.54272 186  6.70000k  51.9759u 2.1957
86  4.70000k  52.1261u 1.54887 187  6.72000k  51.9668u 2.20182
87  4.72000k  52.1220u 1.55528 188  6.74000k  51.9684u 2.20843
88  4.74000k  52.1320u 1.56213 189  6.76000k  51.9751u 2.21522
89  4.76000k  52.1292u 1.56857 190  6.78000k  51.9661u 2.22135
90  4.78000k  52.1328u 1.57525 191  6.80000k  51.9679u 2.22795
91  4.80000k  52.1281u 1.58152 192  6.82000k  51.9626u 2.23424
92  4.82000k  52.1232u 1.58794 193  6.84000k  51.9681u 2.241
93  4.84000k  52.1128u 1.59419 194  6.86000k  51.9662u 2.24743
94  4.86000k  52.1200u 1.60091 195  6.88000k  51.9594u 2.25368
95  4.88000k  52.1180u 1.60741 196  6.90000k  51.9593u 2.26019
96  4.90000k  52.1150u 1.61377 197  6.92000k  51.9582u 2.26665
97  4.92000k  52.1182u 1.62046 198  6.94000k  51.9529u 2.27297
98  4.94000k  52.1129u 1.62678 199  6.96000k  51.9466u 2.27918
99  4.96000k  52.1077u 1.63312 200  6.98000k  51.9563u 2.28611
100  4.98000k  52.1117u 1.63981 201  7.00000k  51.9544u 2.29256
101  5.00000k  52.1101u 1.64627 　 　 　 　
Table 11 Z-axis Detailed frequency data of inductance Ls and reactance Z



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!

Dexinmag® • 2026

Get A Quote!
녕
