DXWDV-50W Water-cooled Electromagnet: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Electromagnet  ꄲ  DXWDV-50W Water-cooled Electromagnet: Quality Inspection Report

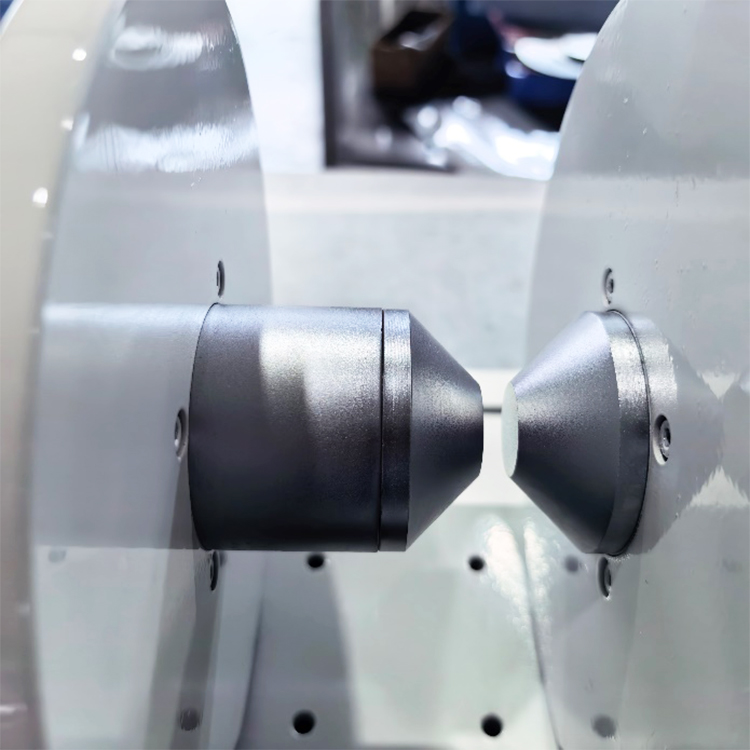

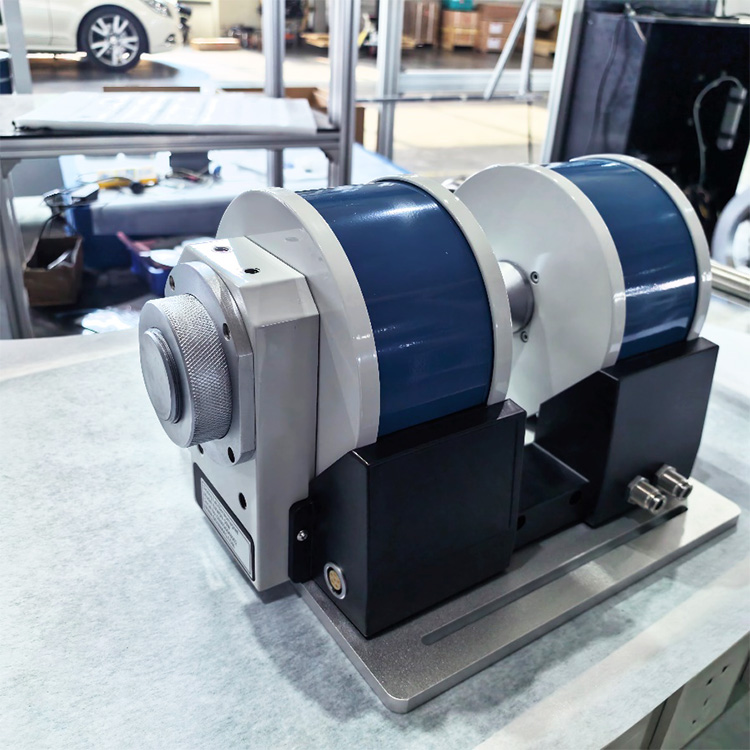

DXWDV-50W Water-cooled Electromagnet: Angled view DXWDV-50W Water-cooled Electromagnet: Front view DXWDV-50W Water-cooled Electromagnet: Close-up of pole

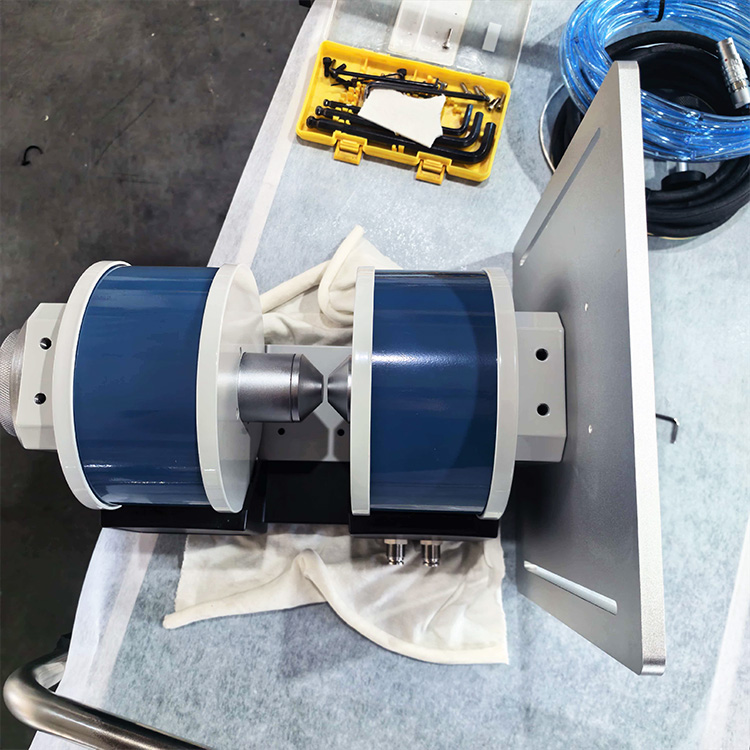

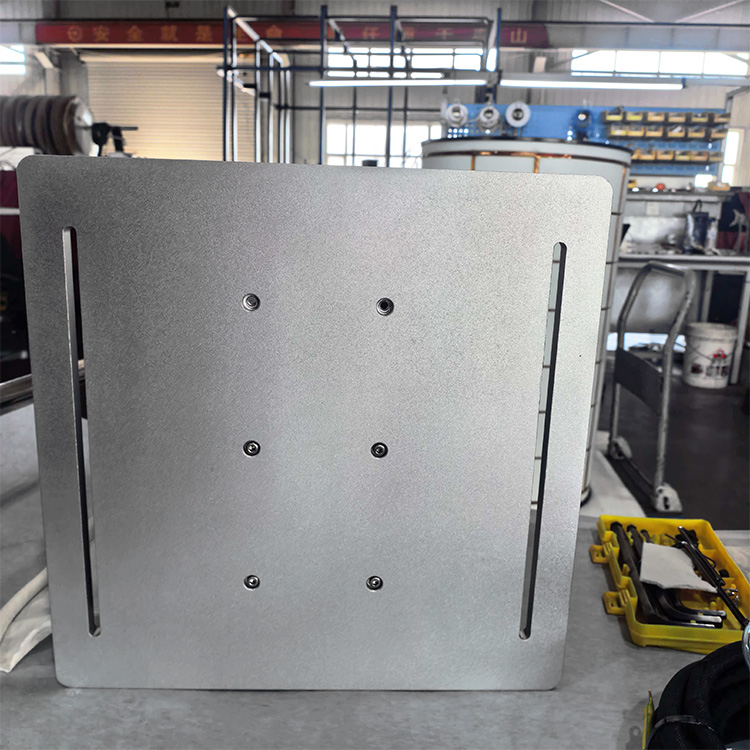

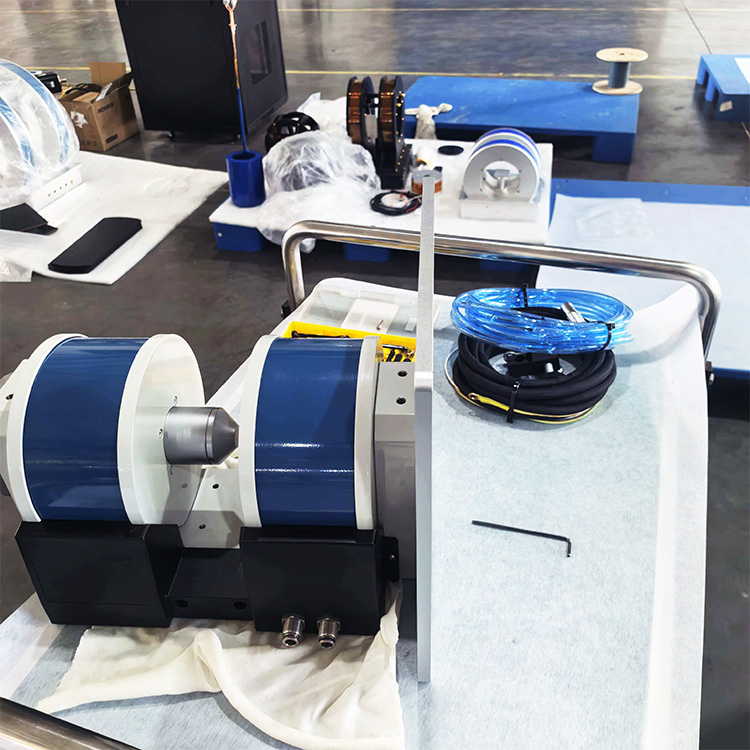

DXWDV-50W Water-cooled Electromagnet: With base plate installed DXWDV-50W Water-cooled Electromagnet: Base plate installation location DXWDV-50W Water-cooled Electromagnet: Close-up of base plate



1. Mechanical Dimensions
Overall dimensions:
Length * Width * Height
400 mm * 300 mm * 230 mm



2. Packing List

Item

 Specifications Quantity
Water-cooled Electromagnet DXWDV-50W

1
Power connection cable   1
Probe holder   1
Water hose 3 meters 2
Certificate of Conformity

-

1
Test Report

-

1



3. Packaging Type
Wooden packaging box



4. Packaging Filler
Foam board



5. Labeling

Product Nameplate



6. Total Equipment Weight
45 kg







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
Water-cooled electromagnet		 Product model: DXWDV-50W
Test time: May 28, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment temperature Product initial temperature Lead length Environmental magnetic field
20.0℃ 20.0℃ 　 0~30000nT
Table 1: Measurement environment data

Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
Air Gap Display current (A) Display voltage (V) Magnetic field
strength（Gs）
10mmGap 1 10.24 3236.5
2 20.48 6430.7
3 30.74 9476.8
4 40.94 12264.6
5 51.3 14429.6
20mmGap 1 10.24 1548.29
2 20.48 3082.4
3 30.74 4576.8
4 40.94 6004.9
5 51.3 7363.1
30mmGap 1 10.24 948.04
2 20.48 1893.74
3 30.74 2820.24
4 40.94 3716.2
5 51.3 4589.8
40mmGap 1 10.24 660.23
2 20.48 1321.55
3 30.74 1969.08
4 40.94 2601.15
5 51.3 3223.1
50mmGap 1 10.24 497.94
2 20.48 993.01
3 30.74 1482.03
4 40.94 1960.97
5 51.3 2434.55
60mmGap 1 10.24 410.02
2 20.48 812.04
3 30.74 1209.77
4 40.94 1600.93
5 51.3 1989.75
Table 2: Magnetic field strength data
　
Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
Environment
temperature		 Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
20.0℃ 20.0℃ 10.202Ω 10.202Ω 13.252Ω
Table 3: Resistance R data

Note: Capable of continuous operation under water-cooled conditions.
Conclusion
The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
