DXSB-130 Variable Air Gap Electromagnet: Quality Inspection Report

Home  ꄲ  Dexinmag News  ꄲ  Electromagnet  ꄲ  DXSB-130 Variable Air Gap Electromagnet: Quality Inspection Report

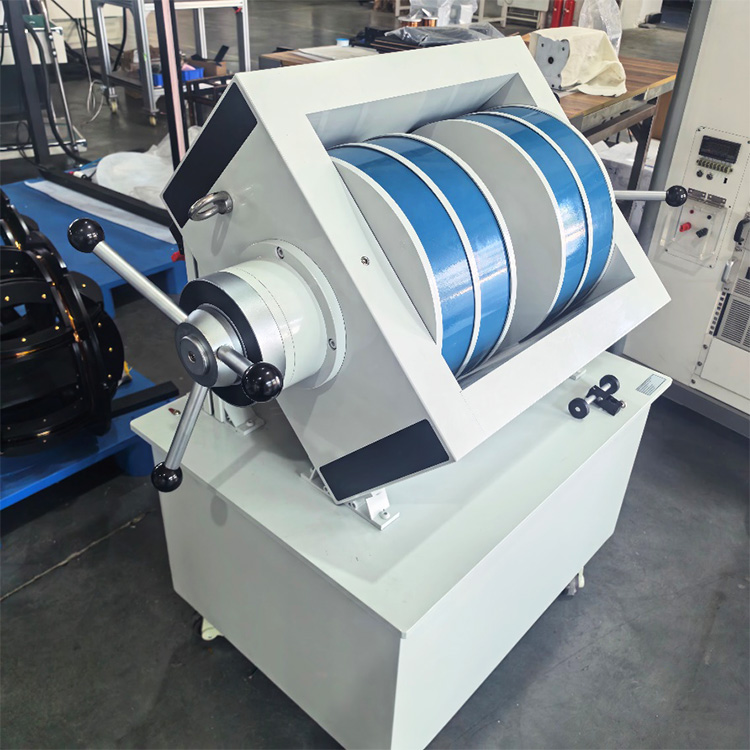

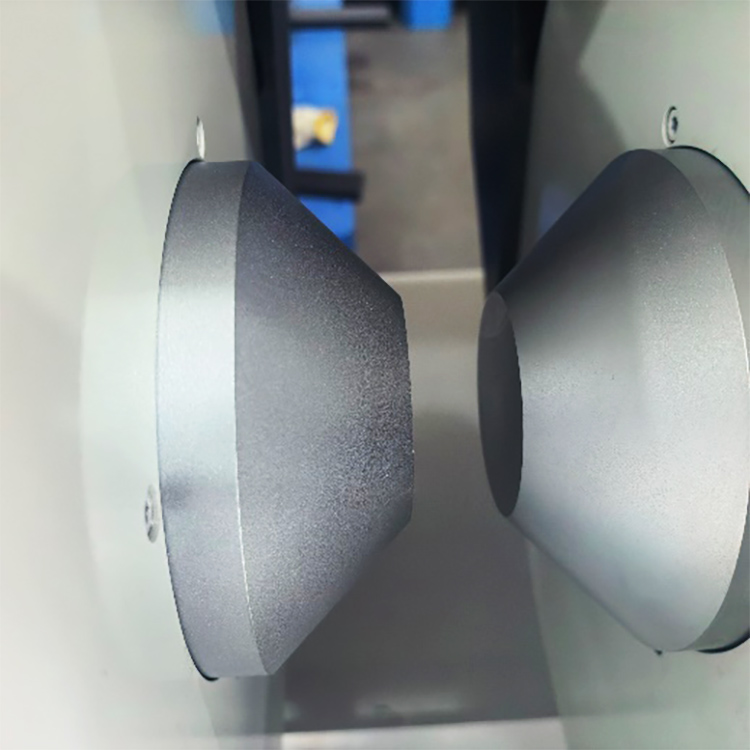

DXSB-130 Variable Air Gap Electromagnet p1 DXSB-130 Variable Air Gap Electromagnet p2 DXSB-130 Variable Air Gap Electromagnet p3



Overall Dimensions: 1020mm(L) x700mm(W) x 1100mm(H)

Weight: 492kg







Performance test report
 Introduction
    1. Test purpose
Through the analysis of the test results, the evaluation of the product performance is obtained;
Evaluate whether the test product meets the technical requirements;
Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory.
    2. Basic information
 Product Name:
Electromagnet		 Product model: DXSB-130
Test time: June 12, 2026
    3. Testing environment
The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1.
Measurement environment
Environment temperature Product initial temperature Lead length Environmental magnetic field
20.0℃ 20.0℃ 　 0~30000nT
Table 1 Measurement environment data

Magnetic field parameter test
    1. Using the device
DX-F2031 power supply
DX-180 Gauss Meter
    2. Magnetic field measurement
This product uses the following measurement methods:
Fixed-point measurement: measure the magnetic field at the target point
Magnetic field strength
Air Gap Display current (A) Display voltage Voltage (V) Magnetic field
strength（Gs）
10mmGap 10 23.77 19320.3
20 47.65 24260.5
30 71.56 25439.9
40 95.62 26135.6
45 107.96 26374.7
20mmGap 10 23.77 10277.8
20 47.65 17922.9
30 71.56 20545.6
40 95.62 21640.9
45 107.96 21996.7
30mmGap 10 23.77 6803.3
20 47.65 12947.9
30 71.56 16069.2
40 95.62 17751.1
45 107.96 18279.7
40mmGap 10 23.77 5079.2
20 47.65 9909.2
30 71.56 12868.1
40 95.62 14550.4
45 107.96 15123.1
50mmGap 10 23.77 4001.3
20 47.65 7915.5
30 71.56 10623.3
40 95.62 12235.7
45 107.96 12792.8
60mmGap 10 23.77 3249.4
20 47.65 6462.1
30 71.56 8907.1
40 95.62 10423.3
45 107.96 10957.4
80mmGap 10 23.77 2343.42
20 47.65 4661
30 71.56 6665.3
40 95.62 7999.1
45 107.96 8475.3
100mmGap 10 23.77 1814.33
20 47.65 3608.7
30 71.56 5255.7
40 95.62 6441.4
45 107.96 6884.7
120mmGap 10 23.77 1501.36
20 47.65 2976.94
30 71.56 4344.1
40 95.62 5410.7
45 107.96 5835.1
Table 2 Magnetic field strength data
　
Electrical parameter test
    1. Using equipment
Digital multimeter
Impedance analyzer
    2. Test method
The digital instrument with bridge circuit and voltammetry is used for measurement. The measurement results are shown in the table below.
Resistance R measurement
Environment
temperature		 Product temperature Measuring resistance ResistanceR@20℃ ResistanceR@85℃
20.0℃ 20.0℃ 2.401Ω 2.401Ω 3.119Ω
Table 3 Resistance R data

Conclusion
The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document.



Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
