DX2005-15 Calibration Magnet: Quality Inspection Report

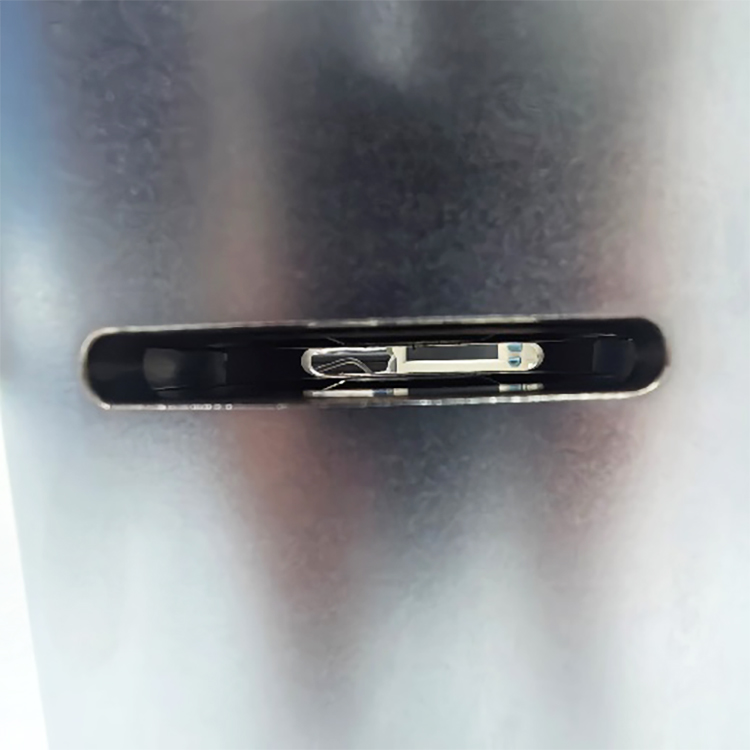

1. Mechanical Dimensions
Overall dimensions:
Length * Width * Height
110 mm * 110 mm * 180 mm
2. Packing List
| Calibration Magnet | ||
|
Item |
Specifications | Quantity |
| Calibration Magnet |
DX2005-15 |
1 |
| Certificate of Conformity |
- |
1 |
| Test Report |
- |
1 |
3. Packaging Type
Wooden crate
4. Packaging Filler
Foam board
5. Labeling

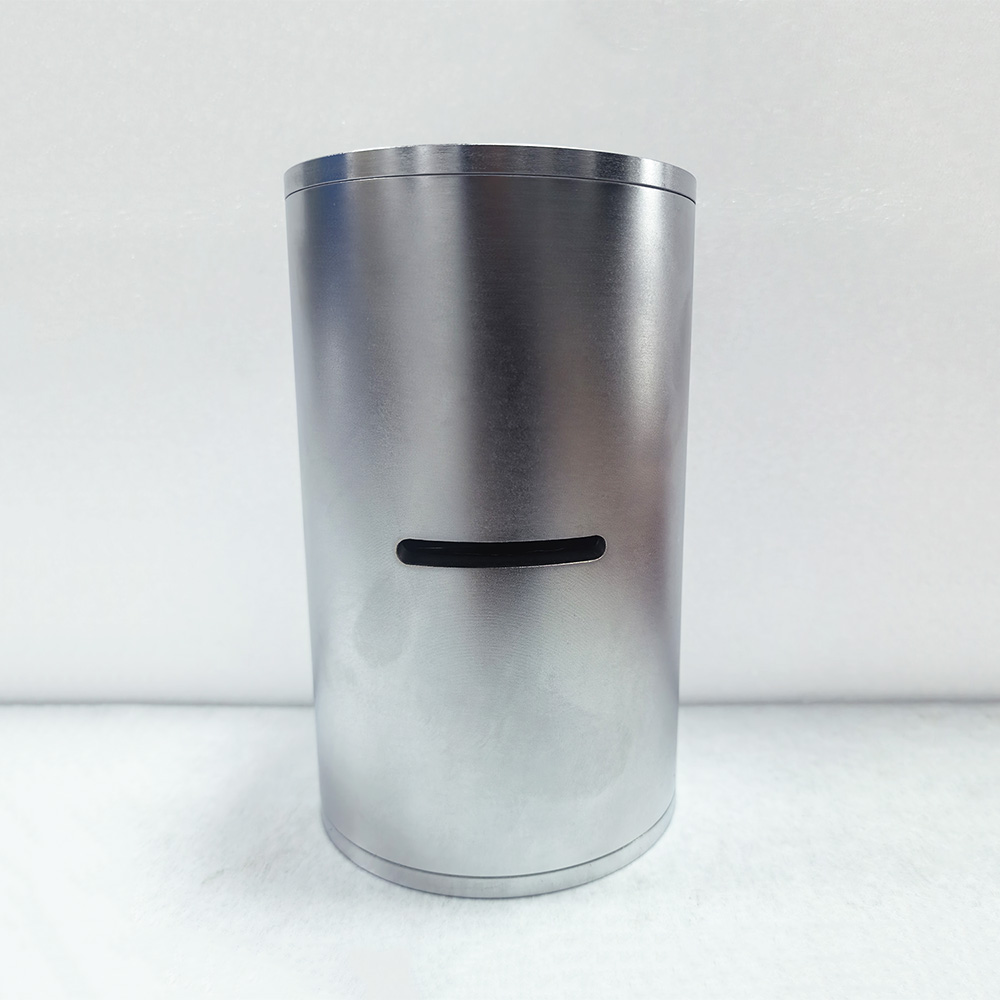

DX2005-15 Calibration Magnet
Xiamen Dexing Magnet Tech. Co., Ltd.
Tel: (86) 0592 5237772
Website: www.dexinmag.com
6. Total Equipment Weight
8.97 kg
| Performance test report | |||||||
| Introduction | |||||||
| 1. Test purpose | |||||||
| Through the analysis of the test results, the evaluation of the product performance is obtained; Evaluate whether the test product meets the technical requirements; Provide reference data for product design and after-sales service, and provide a strong basis for leaving the factory. |
|||||||
| 2. Basic information | |||||||
| Product Name: Axial permanent magnet |
Product model: | DX2005-15 | |||||
| Test time: | June 23, 2026 | ||||||
| 3. Testing environment | |||||||
| The detection environment is closer to the actual environmental conditions used by the user, including factors such as lead wire length and ambient temperature. The time is selected in the time interval where the fluctuation of the geomagnetic field is small. Before the test, the instruments required for the test were turned on and warmed up in advance and the measurement environment was recorded, as shown in Table 1. | |||||||
| Measurement environment | |||||||
| Environment temperature | Product initial temperature | Lead length | Environmental magnetic field | ||||
| 25.0℃ | 25.0℃ | - | 0~30000nT | ||||
| Table 1 Measurement environment data | |||||||
| Magnetic field parameter test | |||||||
| 1. Using the device | |||||||
| DX-180 Gauss Meter | |||||||
| 2. Magnetic field measurement | |||||||
| This product uses the following measurement methods: Fixed-point measurement: measure the magnetic field at the target point |
|||||||
| Magnetic field strength | |||||||
| Measurement Air Gap | Magnetic field strength（T） | ||||||
| 5 mm Gap | 1.516 | ||||||
| Table 2 Magnetic field strength data | |||||||
| Conclusion | |||||||
| The magnetic field and electrical performance of the product meet the requirements of the corresponding technical parameters. The final performance of the product is subject to this document. | |||||||
