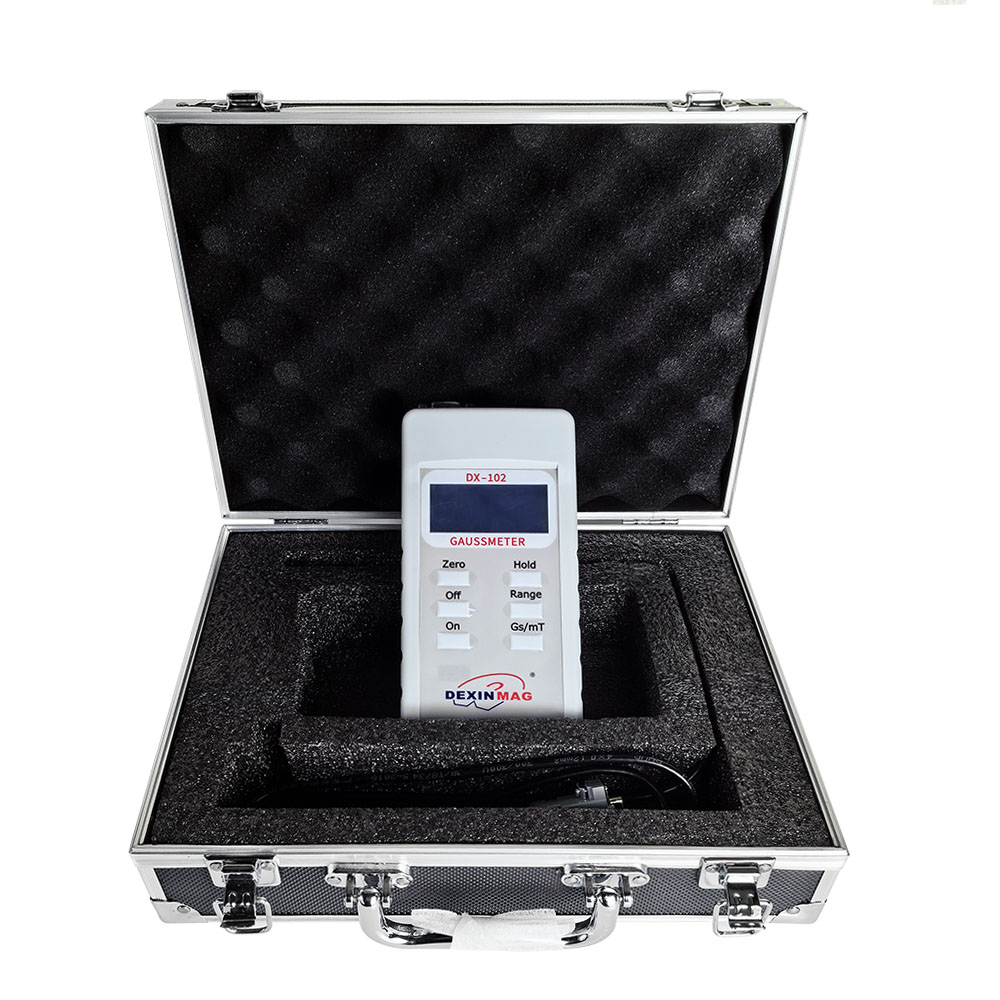

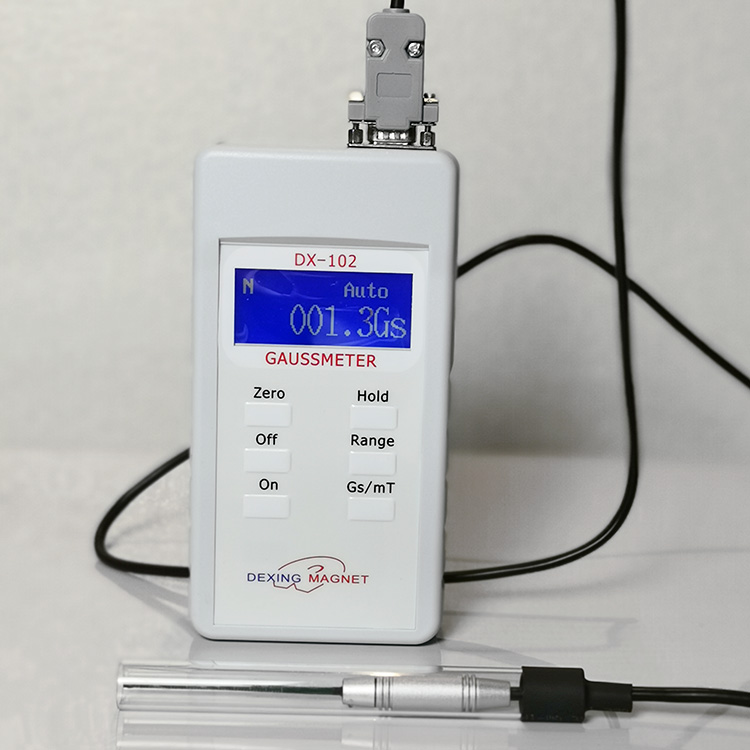

DX-102 Portable DC Gauss Meter
The function of DX-102 Handheld Gauss Meter:
1. DC magnetic field and magnetic field peak value measurement;
2. Permanent magnet magnetic field distribution measurement;
3. The magnetizing measurement of the permanent magnets;
4. The magnetic field distribution measurement inside the DC coil;
5. The air gap magnetic field measurement of DC electromagnet;
6. Normal DC magnetic field measurement.
Features of DX-102 Handheld Gauss Meter:
1. Direct reading of magnetic field;

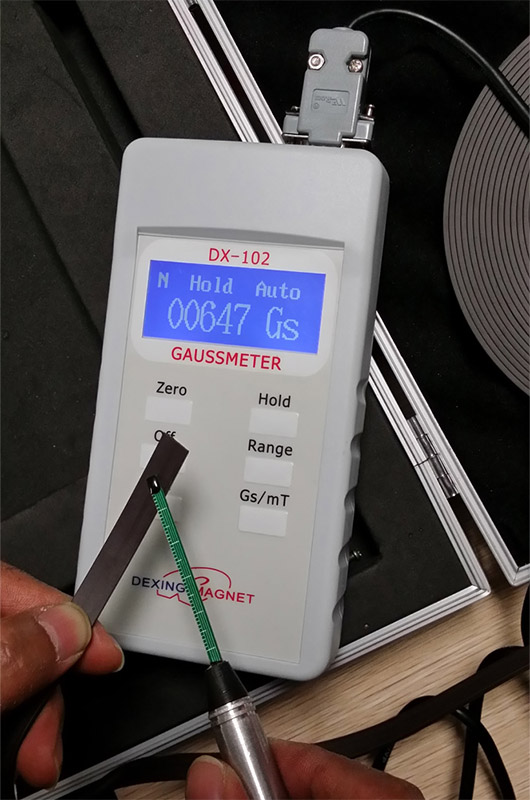

2. Direct displaying of the north and south pole (N/S) of the magnetic field;
3. A key of zeroing;
4. mT / Gs unit switch;
5. Easy operation, without calibration;
6. The battery can be used for a long time;
7. LCD backlight.
Parameters of DX-102 Handheld Gauss Meter:
1. Battery: 7.4 V lithium battery; Size: 5*4.8*1cm(there aren't too many limitations for the Li battery needed, the battery you find just needs to reach 7.4 V, and its size can let it be put in the place where the battery is loaded);
2. Range: 30.0mT, 300mT, 3000mT three gears;
3. Accuracy: (1). better than 1.0% (0 ~ ±1000mT);
(2). better than 2.0% (＞1000mT );
4. Auto power-off after 60 seconds interval;
5. Magnetic field minimum resolution: 0.01mT (0.1Gs);
6. Dimension: 170mm × 90mm × 40mm;
7. Weight: 450g.
Probe options:
DX-102 Gaussmeter can be matched with one of the following three probes according to actual measurement:
1. Transverse probe(Standard probe): L60mm, W3.5mm, T1.0mm, Senstive area: 0.5mm x 0.5mm;
2. Axial probe: L 60mm, Dia. 3.5mm, T0.6mm,Sensitive area: 0.5mm x 0.5mm;
3. Superthin probe: L40mm, W 1.2mm, T0.45mm, Senstive area: 0.25mm x 0.25mm.
List of Dexinmag Gauss meters:
|
Model |
Range |
Frequency |
Min. Resolution |
Accuracy |
Test dimension |
|
DX-102 |
3T |
DC |
0.01mT |
±1% of reading |
1D (handheld) |
|
DX-102F |
3T |
DC - AC |
0.01mT |
DC: ±1% of reading ± 0.05% of range |
1D (handheld) |
|
DX-103 |
2T |
DC - AC |
0.01mT |
±1% of reading ± 0.05% of range |
1D |
|
DX-1205F |
3T |
DC |
0.001mT |
±0.45% of reading ± 100uT |
1D |
|
DX-150 |
3T |
DC - AC 30KHz |
0.01mT |
DC: ±0.3% of reading ± 0.05% of range |
1D |
|
DX-160 |
10T |
DC - AC 50KHz |
0.01uT |
DC: ±0.2% of reading ± 0.05% of range |
1D |
|
DX-180 |
30T |
DC - AC 100KHz |
0.01uT |
DC: ±0.05% of reading ± 0.005% of range |
1D |
|
DX-210 |
30T |
DC - AC 100KHz |
0.01uT |
DC: 1D - ±0.05% of reading ± 0.005% of range |
2D |
|
DX-350 |
3T |
DC |
0.001mT |
±0.45% of reading ± 0.005% of range |
3D |
|
DX-360 |
30T |
DC - AC 100KHz |
0.01uT |
DC: 1D - ±0.05% of reading ± 0.005% of range |
3D |
|
1T=10³mT=10⁶μT=10⁴Gs |
|||||
You may also like
DX-102 Portable DC Gauss Meter
Article: "Magnetic field intensity and ʏ-Fe₂O₃ concentration effects on the dielectric properties of magnetodielectric tissues"
Use device: DX-102 Gaussmeter
Link: https://www.sciencedirect.com/science/article/abs/pii/S0921510718300734
Article: "Magnetodielectric membranes: Effects of the magnetic field on the dielectric loss tangent"
Use device: DX-102 Gaussmeter
Link: https://pubs.aip.org/aip/acp/article/1916/1/040007/750648/
Article: "Composites Based on Cotton Microfibers Impregnated with Magnetic Liquid for Magneto-Tactile Sensors"
Use device: DX-102 Gaussmeter
Link: https://www.mdpi.com/1996-1944/16/8/3222

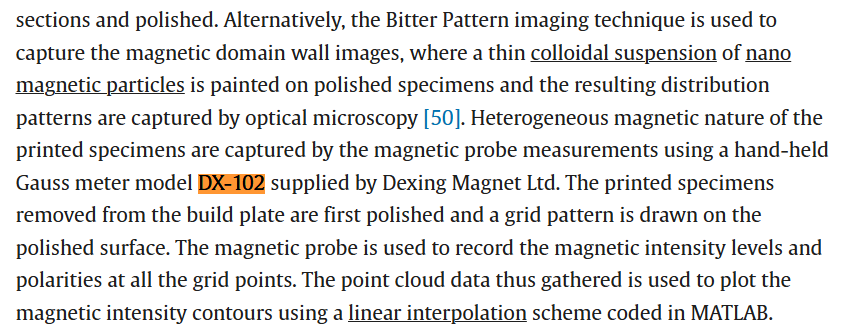

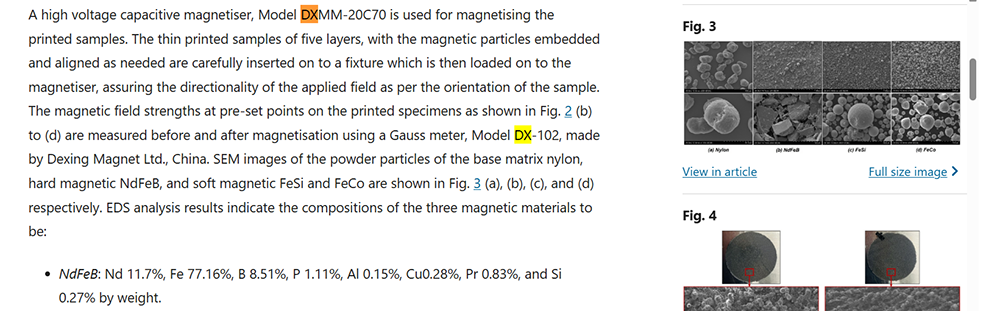

Article: "Energy coupled to matter in additive manufacturing for controlled magnetic heterogeneity through multi-material consolidation"
Use device: DX-102 hand-held Gauss meter
Link: https://www.sciencedirect.com/science/article/pii/S026412752400947X
