Alternating Electromagnet

Product Features

AC and DC compatible
Adjustable magnetic field strength
Easy to integrate
High degree of customization

Application Scenarios

Physics Experiments
Biomedicine
Materials Science
Industrial Production

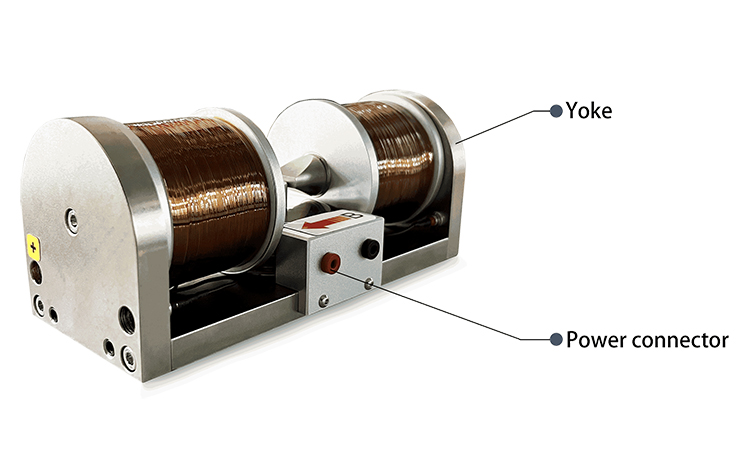

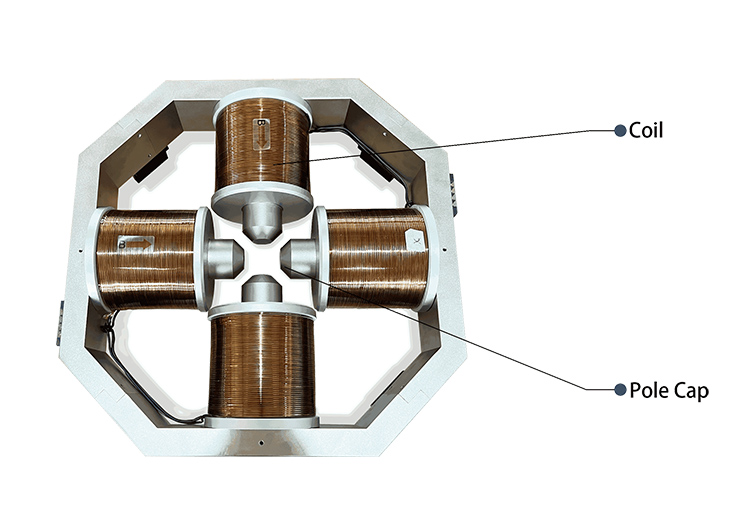

Product Structure

Cases

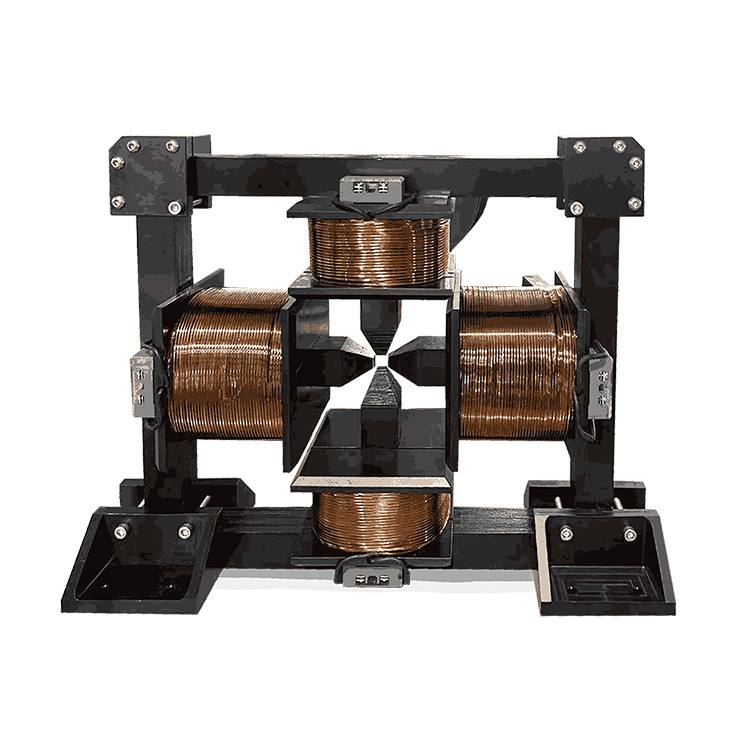

	DXJL-410 Two-dimensional AC electromagnet Maximum magnetic field strength: 30mT @ 3A Electrode face dimensions: 1.5mm*1.0mm Fixed air gap: 30mm Cold resistance: 3.0Ω Frequency range: 0-30Hz Weight: 10Kg

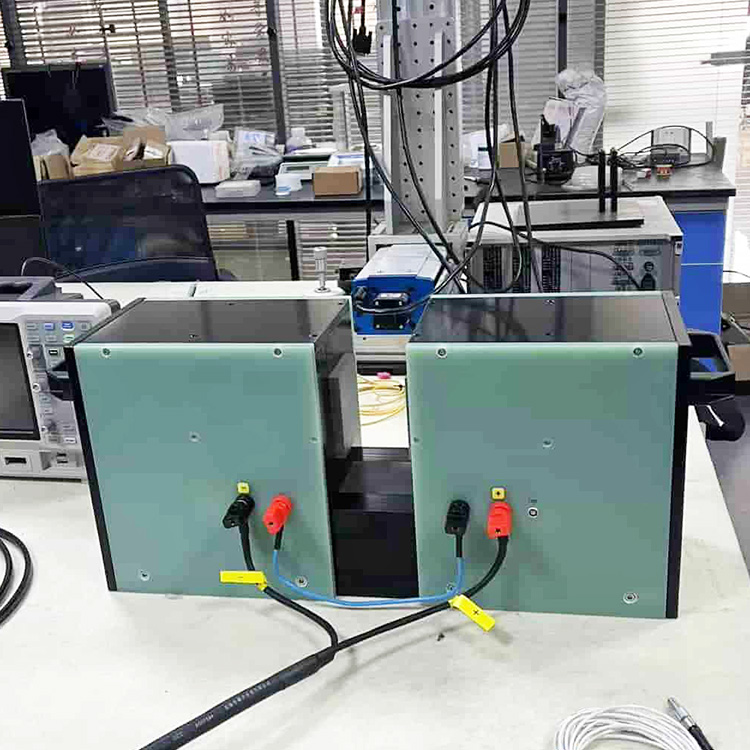

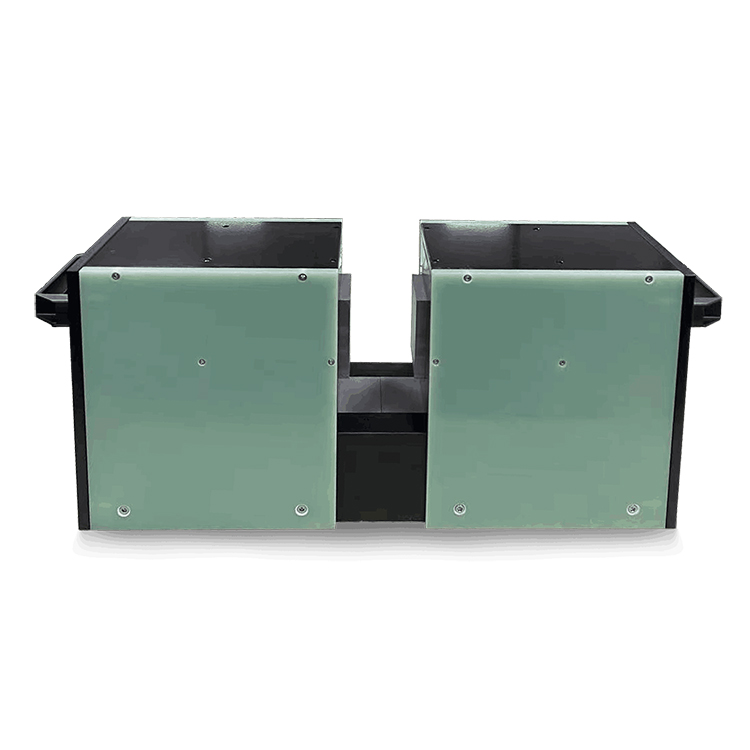

	DXJL-60004 alternating electromagnet Maximum magnetic field strength: 900GS @ 40A Electrode face dimensions: 70mm*80mm Fixed air gap: 60mm Cold resistance: 0.15Ω Frequency range: 10-100Hz Weight: 60Kg

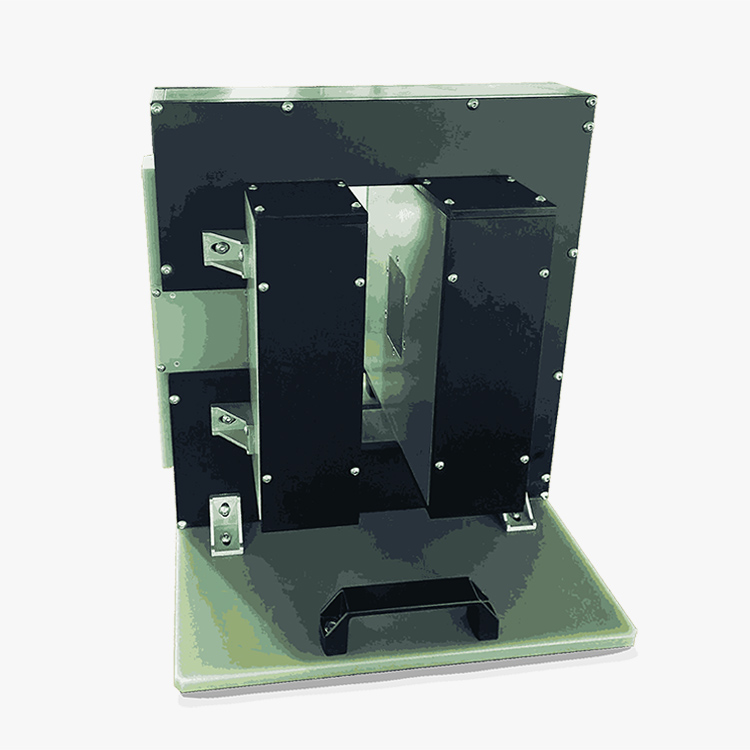

	DXJL-5080 alternating electromagnet Maximum magnetic field strength: 2000Gs Electrode face dimensions: 50mm*80mm Fixed air gap: 60mm Cold resistance: 0.17Ω Frequency range: 45-500Hz Weight: 150Kg

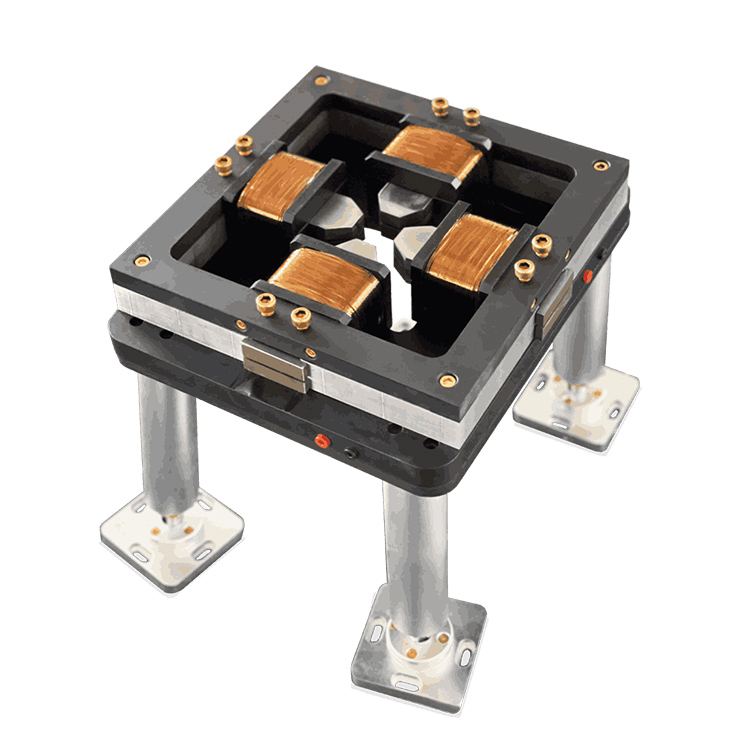

	DXJL-5020 Three-dimensional AC electromagnet Maximum magnetic field strength: 25mT @ 40A Electrode face dimensions: 1.5mm*1.5mm Fixed air gap: 60mm Cold resistance: 0.05Ω Frequency Range: 10-500Hz Weight: 10Kg

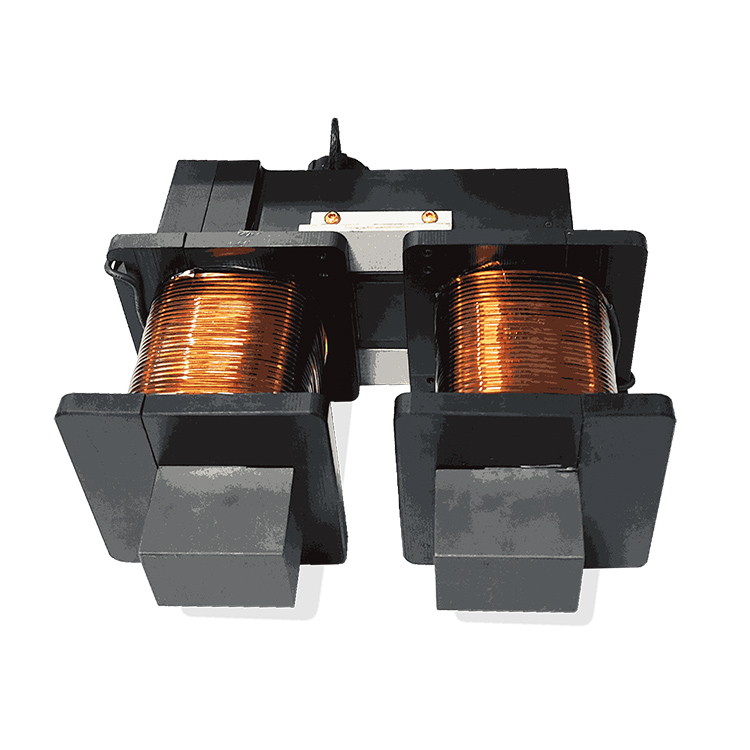

	DXJL-30 alternating electromagnet Maximum magnetic field strength: 800Gs @40A Electrode face dimensions: 30mm*25mm Fixed air gap: 30mm Cold resistance: 1.5Ω Frequency range: 5-1000Hz Weight: 3.2Kg

Alternating electromagnets are designed specifically to generate AC magnetic fields. Their core and yoke are typically made of silicon steel laminations, manganese-zinc ferrite, or other soft magnetic alloys. They are used to generate AC magnetic fields with frequencies up to kHz, effectively preventing eddy currents. Compared to air-core coils, AC electromagnets offer a smaller size and a higher magnetic field.

Home ꄲ Magnetic Field Source ꄲ Electromagnet ꄲ Alternating Electromagnet

Get A Quote!

Home ꄲ Magnetic Field Source ꄲ Electromagnet ꄲ Alternating Electromagnet

Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
