Power Amplifier

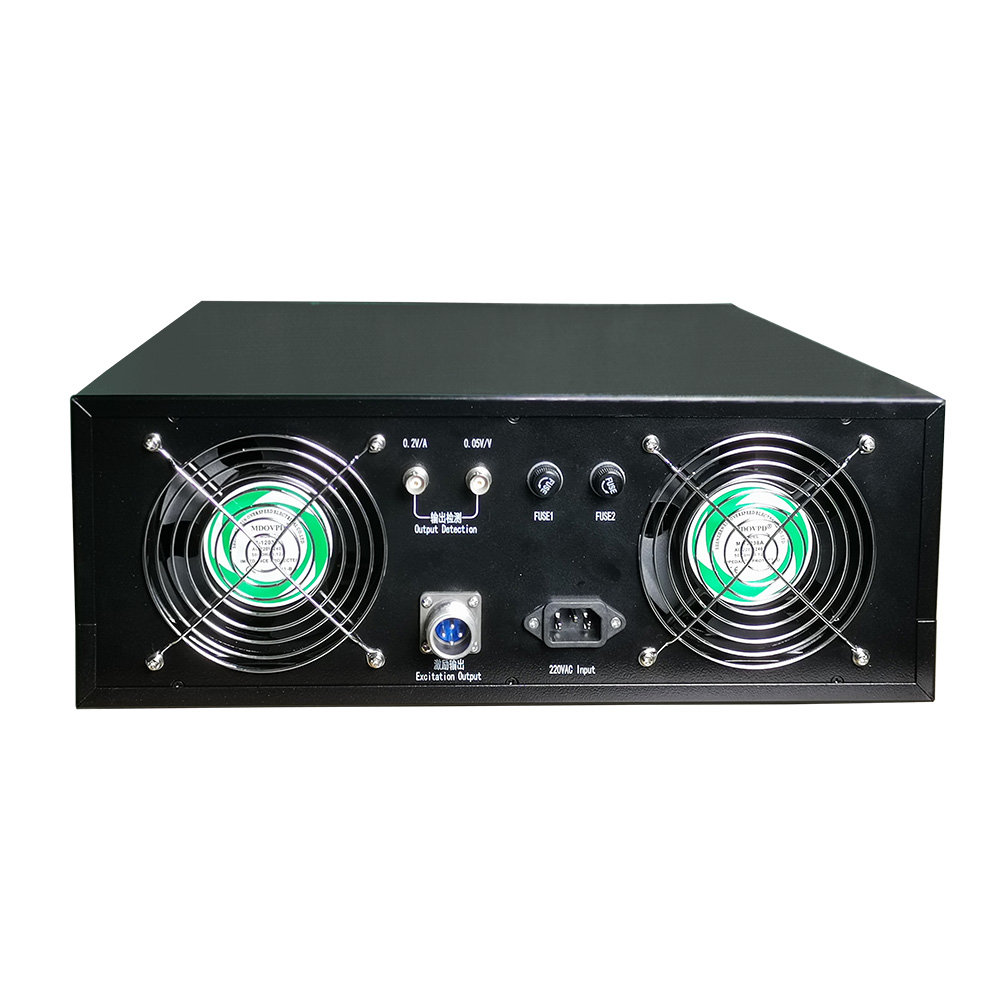

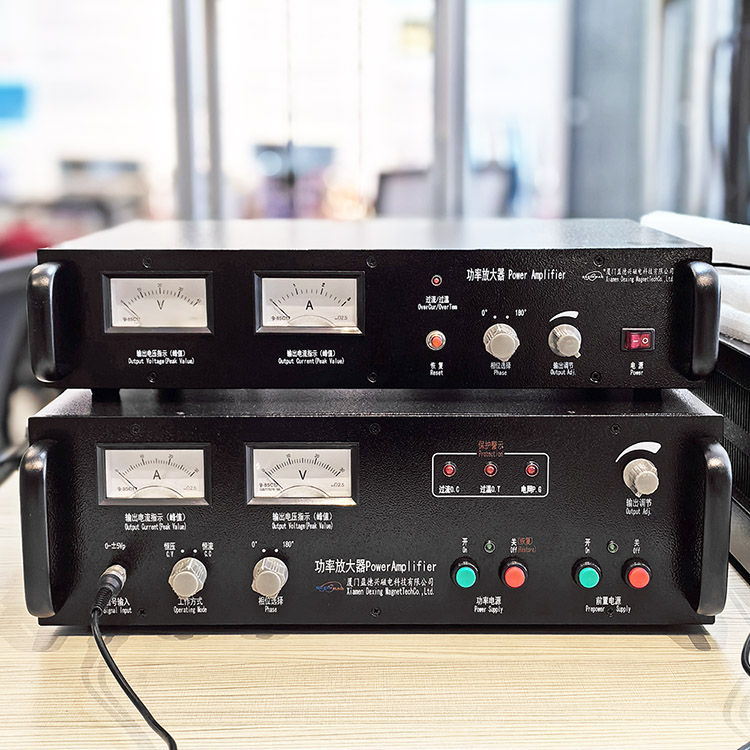

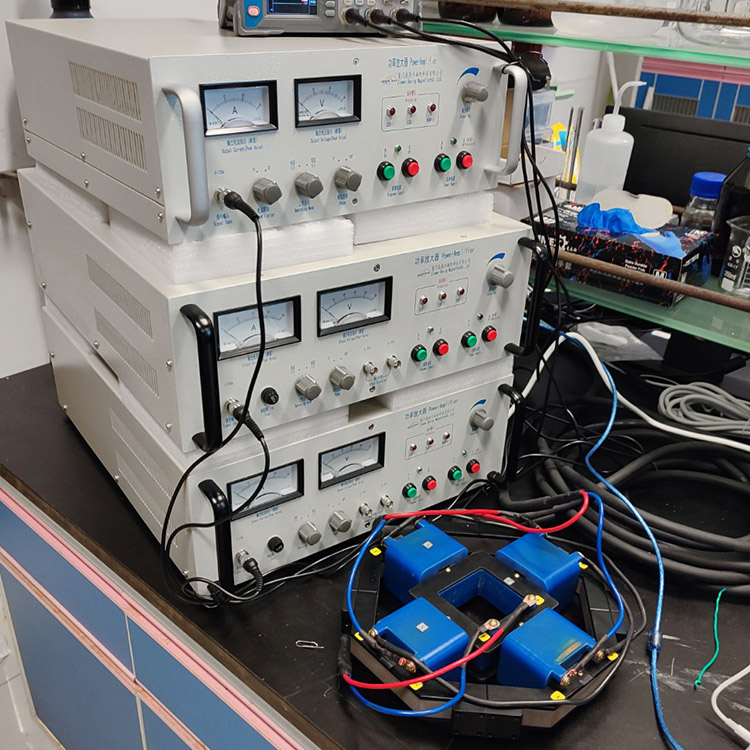

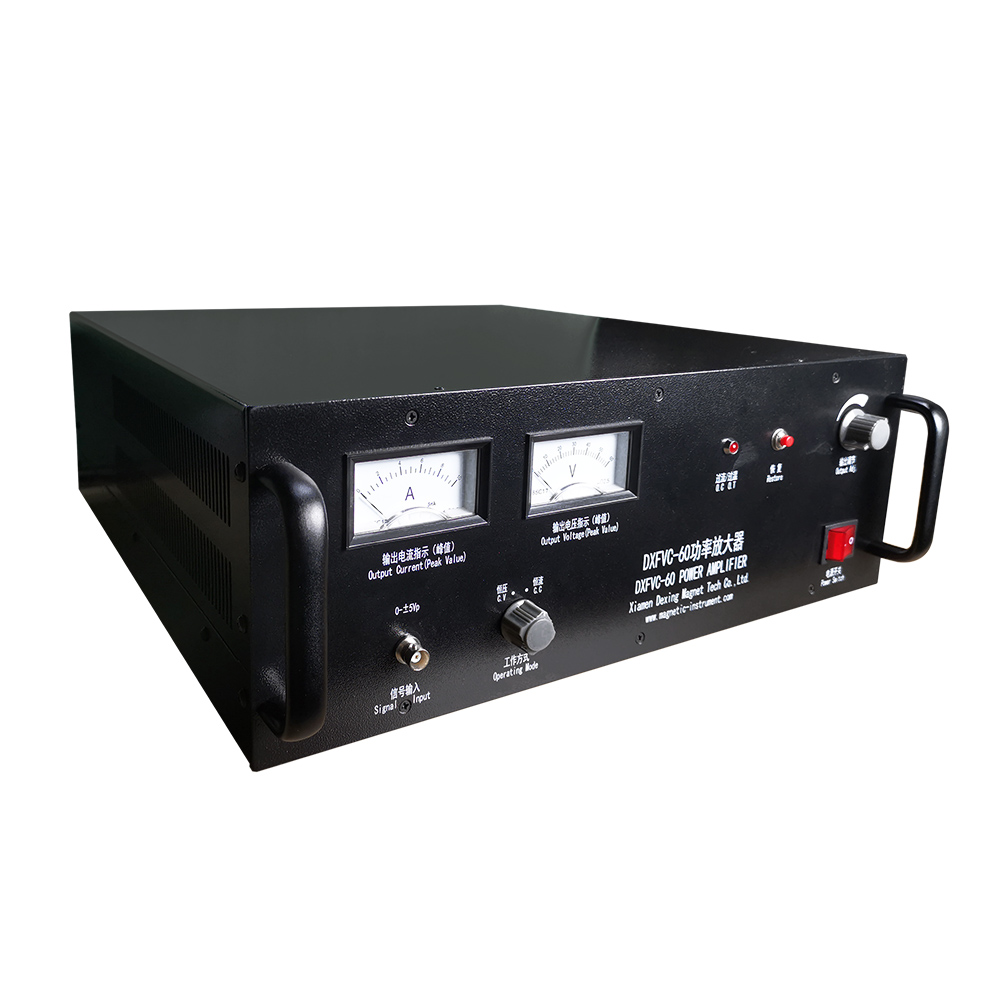

DXACP series power amplifiers
The power amplifier is specially designed for the supporting use of the vibration exciter, which can provide a stable and adjustable excitation current for the vibration exciter.
Under the action of the exciting current, the exciter generates an exciting force on the tested component corresponding to its exciting current. The magnitude and phase of this force are only related to the excitation current and the characteristics of the exciter itself, and have nothing to do with the component being tested.
This series of power amplifiers are linear power amplifiers with stable performance, strong protection functions, simple and clear operation, no shock when starting up, no pollution to the environment, and safe and reliable use. In addition, this series of power amplifiers have better adaptability. Although they are designed for vibration exciters, they are also suitable for loads whose impedance is basically matched. In particular, the DXACPS series power amplifiers have the characteristics of one machine and multiple devices, and they can also be used as signal sources and frequency meters, which are very popular among users.
Main Technical Parameters of DXACP series Power Amplifiers
| Model | DXACP - 15 Three Channel Power Amplifier |
DXACP - 20 |
DXACP - 50 |
DXACP - 200C | DXACP - 500G | DXACP - 1000 |
| Output Power max | 90W | 110W | 200W | 550W | 1600W | 3300W |
| Output Current max | 4.5A | 3A | 4A | 30A | 40A | 80A |
| Operating Frequency Range | 0 - 10KHz | |||||
| Input Signal Amplitude | 0 - ±5V | |||||
| Non-Linear Distortion (Current） | <0.5% | <0.5% | <0.5% | <0.5% | <0.1% | <1% |
| Output Signal-to-Noise Ratio | >76dB | |||||
| Power supply | 220VAC ± 10% | 380VAC ± 10% | ||||
| Temperature of Working Environment | 0 - 40℃ | |||||
| Humidity of Working Environment | <80%R.H | |||||
| Size (mm) | 385 × 435 × 163 |
355 × 335 × 133 |
355 × 335 × 133 | 385 × 435 × 160 | 415 × 540 × 165 | 460 × 416 × 980 |
| Weight | about 12Kg | about 4.5Kg | about 6Kg | about 16Kg | about 24Kg | about 50Kg |
| Remark | Built-in sine wave signal source and frequency meter. | |||||
DXACPV series high voltage power amplifiers
DXACPV series power amplifiers are power amplifiers specially designed for capacitive loads (of course, they can also be used for other loads).
This series of power amplifiers are linear power amplifiers with the characteristics of low interference, good linearity, low distortion, high stability, and wide frequency range. At the same time, it has the advantages of a beautiful appearance, simple panel and easy operation. It is very suitable for schools and research institutes to conduct ultrasonic motor technology research and piezoelectric ceramic (crystal) vibration and other experiments.
Main Technical Parameters of DXACPV series power amplifiers
|
Model |
DXACPV -300A |
DXACPV -300B |
DXACPV -300C |
DXACPV -300D |
DXACPV -1070B |
DXACPV -2070B |
|
Output voltage |
300Vp - p |
700Vp - p |
||||
|
Output current |
0.5Ap - p |
1Ap - p |
1.5Ap - p |
2Ap - p |
1Ap - p |
2Ap - p |
|
Working range |
0 - 7KHz |
|||||
|
Non-linear distortion |
<1% |
<2% |
<2% |
<2% |
<1% |
<2% |
|
Output SNR |
>80db |
|||||
|
Input resistance |
10KΩ |
|||||
|
Input signal amplitude |
0 - ±5VP |
|||||
|
Working temperature |
0 - 40 ℃ |
|||||
|
Working environment humidity |
<80%R.H |
|||||
|
Power supply |
220VAC土10% 50Hz |
|||||
|
Output indication accuracy |
Better than 2% |
|||||
DXACPFV series High-frequency high voltage power amplifiers
DXACPFV series power amplifiers are power amplifiers specially designed for inductive (or capacitive) loads.
This series of power amplifiers are linear power amplifiers with the characteristics of low interference, good linearity, low distortion, high stability, and wide frequency range. At the same time, it has the advantages of beautiful appearance, simple panel and easy operation. It is very suitable for schools and research institutes to conduct ultrasonic motor technology research, piezoelectric ceramic (crystal) vibration experiments, and nest flow excitation detection experiments.
Main Technical Parameters of DXACPFV series power amplifiers
| Model | DXACPFV - 41 | DXACPFV - 42 | DXACPFV - 61 | DXACPFV - 62 | DXACPFV - 64 | DXACPFV - 83A |
| Output voltage | 400Vp-p | 400Vp-p | 600Vp-p | 600Vp-p | 600Vp-p | 800Vp-p |
| Output current | 1Ap-p | 2Ap-p | 1Ap-p | 2Ap-p | 4Ap-p | 3Ap-P |
| Working range | 5KHz - 150KHz | |||||
| Non-linear distortion | <1% | <2% | <1% | <2% | <2% | <2% |
| Output SNR | >80db | |||||
| Input resistance | 10KΩ | |||||
| Input signal amplitude | 0 - ±5VP | |||||
| Working temperature | 0 - 40℃ | |||||
| Working environment humidity | <80%R.H | |||||
| Power supply | 220VAC±10% 50Hz | |||||
| Output accuracy | Better than 2% | |||||
DXACPM series power amplifiers for motor drive
DXACPM series power amplifiers used as motor drive for large, medium and small turntables, and the power source for the corresponding load.
Features:
- It is a linear power amplifier with low noise, no interference, reasonable circuit and high reliability.
- The output voltage is high and the current is large.
- With voltage and current indication.
- It has over-current, over-temperature, over-voltage and under-voltage protection indication functions.
Main Technical Parameters of DXACPM series power amplifiers
| Model |
DXACPM 1080 |
DXACPM 2080 |
DXACPM 3080 |
DXACPM 4080 |
DXACPM 20150 |
DXACPM 50150 |
DXACPM 120150 |
DXACPM 240150 |
| Output Current max (A) | 10Ap | 20p | 30p | 40Ap | 20Ap | 50p | 120p | 240Ap |
| Output Power max (W) | 80Vp | 80Vp | 80Vp | 80Vp | 150Vp | 150Vp | 150Vp | 150Vp |
| Operating Frequency Range | 0-5kHz | 0-5kHz | 0-5kHz | 0-5kHz | 0-5kHz | 0-4kHz | 0-3kHz | 0-2kHz |
| Non-Linear Distortion (Current) | <1% | |||||||
| Output Signal-to-Noise Ratio | >80dB | |||||||
| Input Impedance | 100KΩ | |||||||
| Input Signal Amplitude | 0 - ±10Vp | |||||||
| Temperature of Working Environment (℃) | 0 - 40℃ | |||||||
| Humidity of Working Environment (R.H) | <80%R.H | |||||||
| Power Supply | 380VAC 土 10% 50Hz | |||||||
It is very suitable for schools and research institutes to conduct ultrasonic motor technology research, piezoelectric ceramic (crystal) vibration experiments, and nest flow excitation detection experiments.
