High Uniformity Combined Helmholtz Coil

Typical Cases

High-uniformity-combined-Helmholtz-coil-3

DX4Y32-30

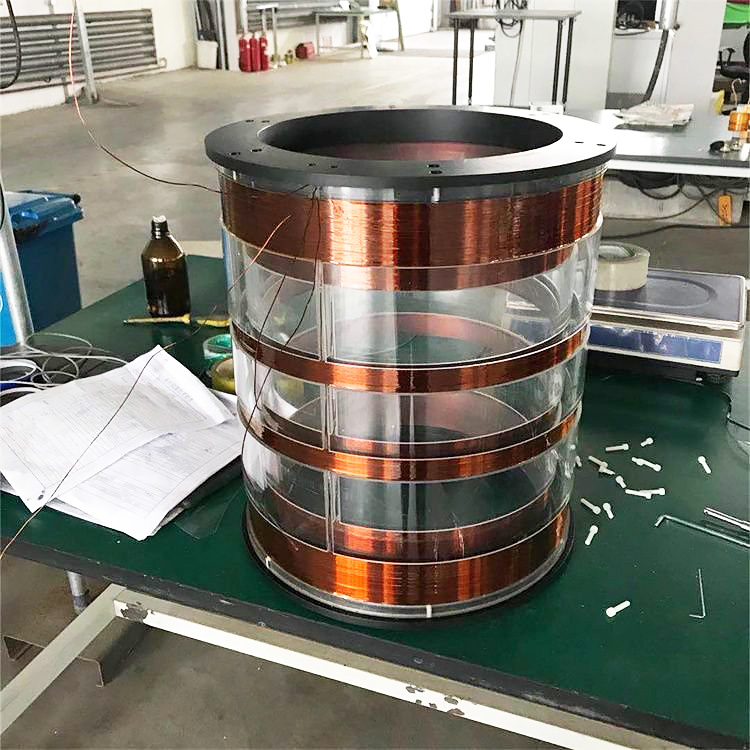

Buckel four-ring coil
Center magnetic field strength: 30Gs;
Magnetic field uniformity: ΔH/H=5*10-4;
Uniform zone: Φ120*260mm;
The average diameter of the coil: 640mm;
Working hours: 24 hours;
Power Supply: 180W (6A30V)

High-uniformity-combined-Helmholtz-coil-2

DX3Y50-2



Maxwell three-ring coil
Center magnetic field intensity: 10Gs;
Magnetic field center uniformity: 5*10-4;
Uniform zone: Φ200*200mm;
The maximum diameter of the coil: 1000mm;
AC and DC;
The coil can be rotated and tilted.

High-uniformity-combined-Helmholtz-coil-1

DX4F90-5



Four-ring square coil
Center magnetic field strength: 5 Gs;
Uniformity of the magnetic field: ΔH/H=5*10-3;
Uniform zone: Φ500*1000mm;
Side length: 1800mm;
Power Supply: 540W (6A90V)

High-uniformity-combined-Helmholtz-coil-7

DX6Y10-1



Buckle six-ring coil
Center magnetic field strength: 1.0Gs;
Uniformity of the magnetic field: ΔH/H=1*10-3;
Uniform zone: Φ40*100mm;
The average diameter of the coil: 200mm;
Total length: 260mm.



High-uniformity-combined-Helmholtz-coil-5

DX8Y10-1.2



One-dimensional eight-ring coil
Center magnetic field intensity: 1.2Gs;
Uniformity of the magnetic field: ΔH/H=1*10-3;
Uniform zone length: 500mm;
The average diameter of the coil: 540mm;
The total length is 1600mm.



View other Helmholtz Coils

High evenness coil is based on standard Helmholtz coil, the deformation of the standard coil and the combination of compensating coil compound can improve the homogeneous degree of the coil in the effective space, expanding the scope of the uniform area, suitable for high accuracy for a wide range of magnetic field.
