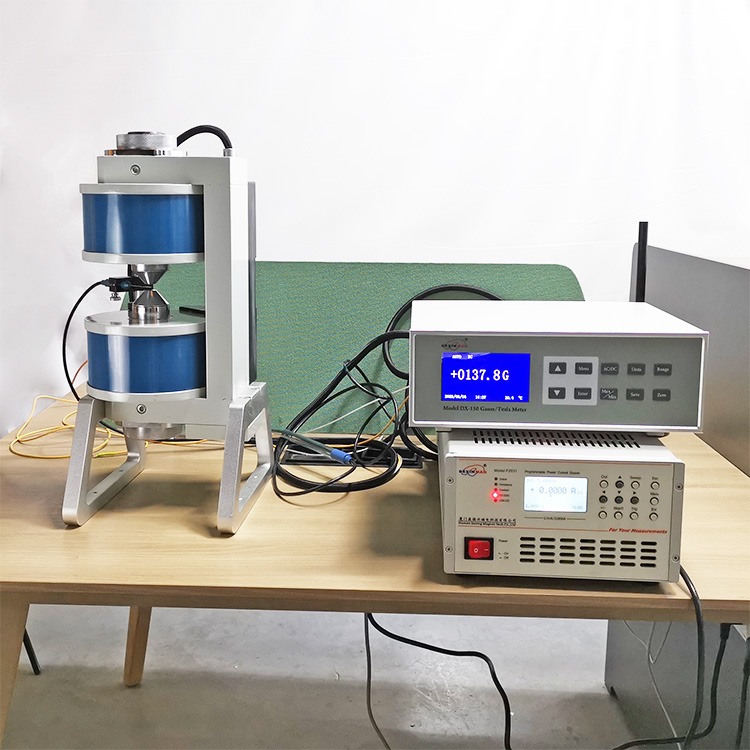

DXSBV Vertical Variable Air Gap Electromagnet

DXSBVELECTROMAGNET



 Names of parts

1: Horizontal yoke

2: Vertical yoke

3: Coil

4: Pole Cap Surface

5: Pole Cap

6: Handle

7: Pole Sleeve

A: Coil Gap

B: Pole Gap

C: Center Height

D: Horizontal distance of Diameter

E: Coil Diameter





Main Specification



DXSBV Electromagnet Series Main Dimension

Model
(mm)

Pole Diameter
(mm)

A
(mm)

B
(mm)

C
(mm)

D
(mm)

E
(mm)

Weight
(Kg)

DXSBV-50

50

80/ Custom

0~60

145

130

180

40

DXSBV-80

80

100/ Custom

0~80

190

180

260

135

DXSBV-100

100

120/ Custom

0~100

200

200

300

200

DXSBV-130

130

120/ Custom

0~100

250

240

260

430

DXSBV-175

175

120/ Custom

0~100

300

315

470

630

DXSBV-200

200

120/ Custom

0~100

300

325

490

930

DXSBV-220

220

120/ Custom

0~100

310

405

610

1060

DXSBV-250

250

120/ Custom

0~100

320

340

540

1920

DXSBV-280

280

150/ Custom

0~120

360

415

670

2570

DXSBV-300

300

150/ Custom

0~120

360

470

740

3580

DXSBV-380

380

200/ Custom

0~120

495

620

850

6800





Technical Parameters



Model

Pole Diameter
（mm）

Air Gap Range
（mm）

Pole Face
(mm)

Air Gap
(mm)

Maxium
Magnetic Field
（T）

Power

SBV-50

Φ50

0-80

Φ50

10

1

0.3KW

SBV-80

Φ80

0-80

Φ80

20

0.9

0.6KW

SBV-100

Φ100

0-100

Φ60

10

2

2.0KW

Φ100

10

1.5

SBV-130

Φ130

0-120

Φ60

10

2.5

3.8KW

Φ100

30

1.2

SBV-175

Φ175

0-120

Φ80

10

2.4

6.5KW

Φ100

30

1.8

SBV-200

Φ200

0-140

Φ80

10

2.6

10.0KW

Φ120

30

1.9

SBV-250

Φ250

0-140

Φ120

25

2.3

12.0KW

SBV-280

Φ280

0-140

Φ120

25

2.6

12.0KW





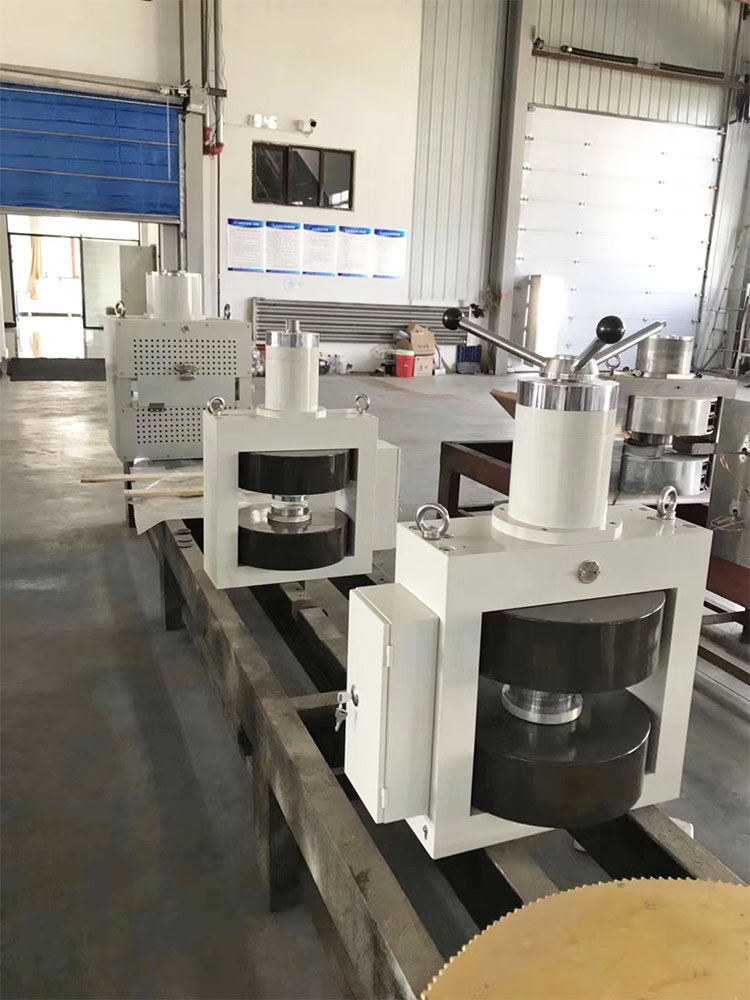

Typical Cases



DXSBVELECTROMAGNET-6

DXSBV-130



1. Structure: electromagnet for the double-yoke monotonous vertical seat, pole one-way adjustable variable air gap, magnetic field perpendicular to the ground.
2. Electromagnet pole diameter Φ130, with a pair of 60mm diameter poles, line spacing 120mm, adjustable air gap range 0 ~ 100mm.
3. The air gap is 10mm, and the magnetic field H ≥ 2.6T. Electromagnet internal cooling water cooling structure, when the magnetic pole spacing is 25mm, the magnetic field is 1.7T, and the sustainable working time of 30 minutes; scanning magnetic field can work for a long time.
4. Magnetic field uniformity: When the magnetic field 15mm air gap, in the center Φ10 * 10mm3 area magnetic field uniformity is better than 0.1%.
5. Wire package resistance of 5.0 ohms, rated power 3.0KW.
6. The user power: 30A150V.

DXSBVELECTROMAGNET-11

DXSBV-200



1. Structure: electromagnet for the double-yoke monotonous vertical seat, pole one-way adjustable variable air gap, magnetic field perpendicular to the ground.
2. Electromagnet pole diameter is Φ200mm, pole diameter of 80mm, line pack spacing of 120mm, adjustable air gap range of 0 ~ 100mm.
3. The air gap is 10mm, and the magnetic field H ≥ 2.8T. Electromagnet internal cooling water-cooled structure, when the magnetic pole spacing is 30mm, the magnetic field is 2.3T, the sustainable working time of 10 minutes; scan magnetic field can work for a long time.
4. Magnetic field uniformity: when the magnetic field 20mm air gap, in the center Φ10 * 10mm3 area magnetic field uniformity is better than 0.1%.
5. Wire package resistance of 5.0 ohms, rated power of 8.0KW.
6. The user power: 50A240V.

DXSBVELECTROMAGNET-5

DXSBV-250



1. Structure: electromagnet for the double-yoke monotonous vertical seat, pole one-way adjustable variable air gap, magnetic field perpendicular to the ground. The following are the same as the "
2. Electromagnet pole diameter Φ250mm, pole diameter of 120mm, line pack spacing of 120mm, adjustable air gap range of 0 ~ 100mm.
3. The air gap is 10mm, and the magnetic field H ≥ 2.6T. Electromagnet internal cooling water-cooled structure, when the magnetic pole spacing is 30mm, the magnetic field is 2.2T, the sustainable working time of 10 minutes; scan magnetic field can work for a long time.
4. Magnetic field uniformity: When the magnetic field 20mm air gap, in the center Φ20 * 20mm3 area magnetic field uniformity is better than 0.1%.
5. Wire package resistance of 5.0 ohms, rated power of 10.0KW.
6. The user power: 50A240V.





You may also like



The Application of Variable Airgap Electromagnet in Nonlinear dynamic modeling and model-based AI-driven control of a magnetoactive soft continuum robot in a fluidic environment

The Application of Variable Airgap Electromagnet in "Nonlinear dynamic modeling and model-based AI-driven control of a magnetoactive soft continuum robot in a fluidic environment"





article of An Experimental Study on the Dynamic Hysteresis Behavior of a Magnetic Soft Continuum Robot Submerged in a Fluid Environment

Article: "An Experimental Study on the Dynamic Hysteresis Behavior of a Magnetic Soft Continuum Robot Submerged in a Fluid Environment"

Use device: Variable airgap electromagnet (DXSBV-100)
Link: https://www.researchgate.net/publication/383177786





Vertical Variable Air Gap Electromagnet: The magnetic field is one-way adjustable, the yoke structure a closed magnetic circuit, so it has good rigidity, the magnetic field direction is vertical, Product up-right seat so that sample can be put on underneath the pole cap for operating the sample easily.
 Apply to Hall effect studies, magnetoresistance effect studies, magnetostriction studies, torque magnetometer, force method magnetometer, VSM, etc.
