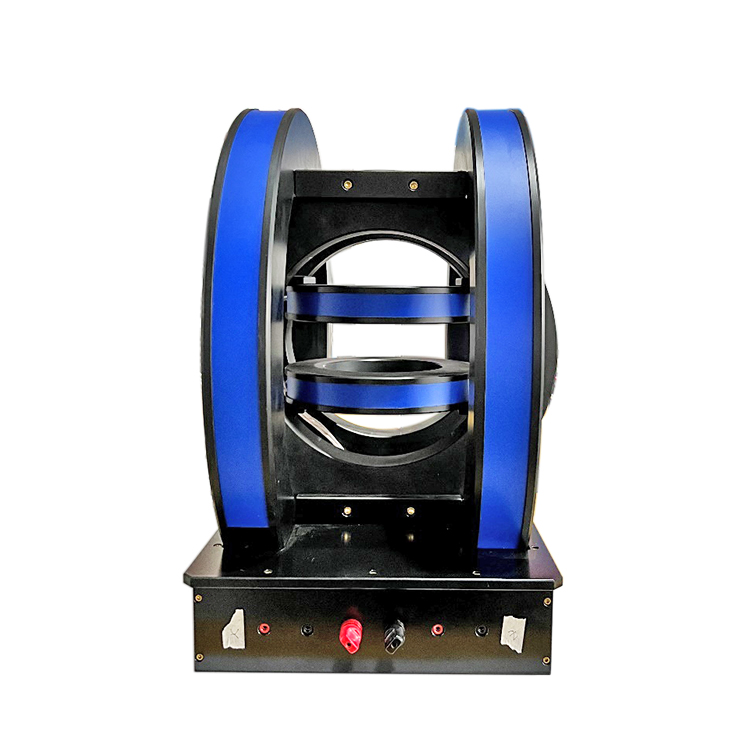

Rotating and Gradient Magnetic Field of 3D Helmholtz Coil

The three-dimensional Helmholtz coil magnetic drive system designed by Dexinmag company can be controlled in a closed-circuit manner in the frequency range of 0-20Hz and the magnetic field range of 0-200Gs, and can produce AC and DC uniform strong magnetic field, gradient magnetic field, and rotating magnetic field.

넶319 ¥ 0.00
Rotating Magnetic Field Permanent Magnet

The permanent magnet can be made into a rotating magnetic field in the form of mechanical rotation. When the permanent magnet rotates around the center of action of the magnetic field, the sine wave magnetic field can be obtained in the fixed direction of the magnetic field space. The alternating frequency of magnetic field polarity is 0-7hz adjustable, the magnetic field space is large, and the magnetic field strength can be customized.

넶317 ¥ 0.00

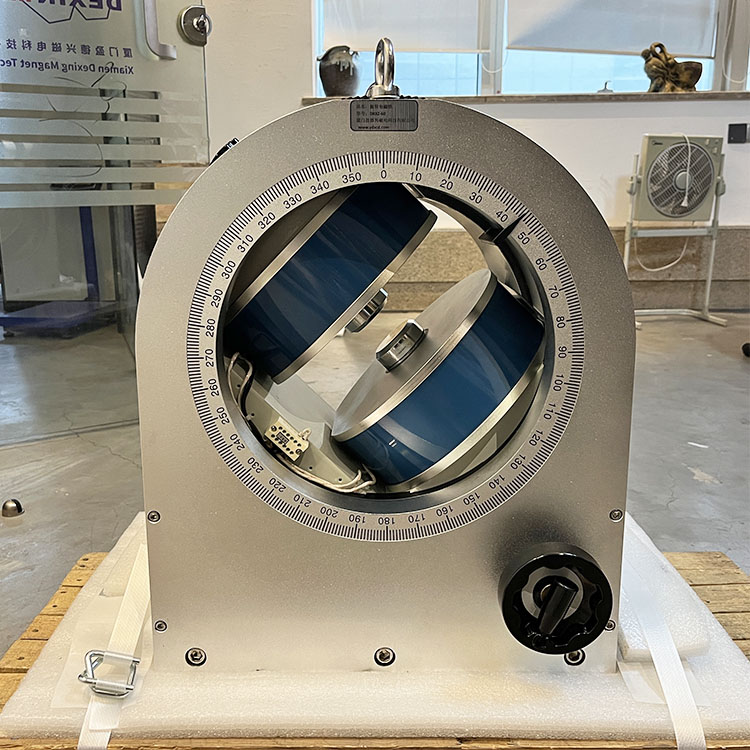

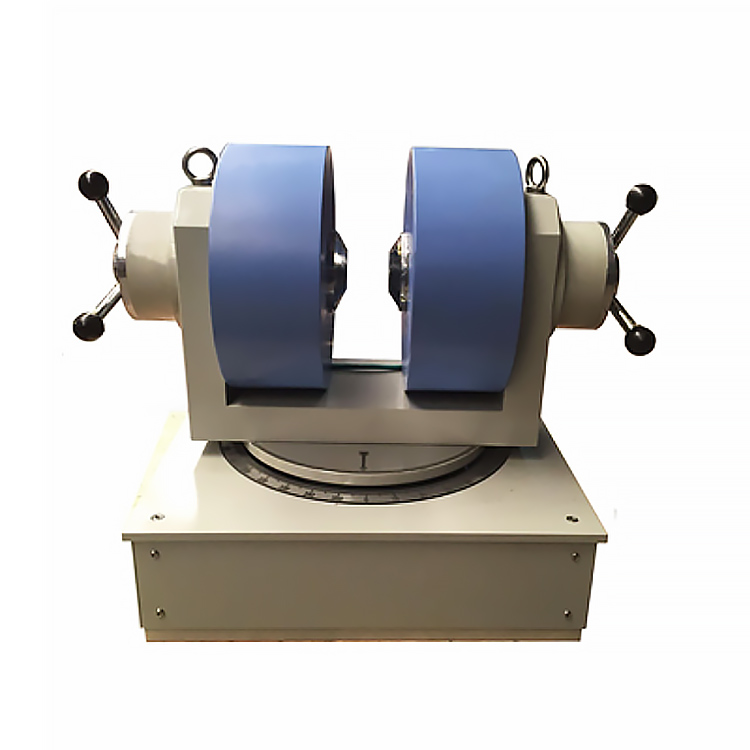

DXXZ Rotating Laboratory Electromagnet

Rotating electromagnet: The magnetic field can rotate 360° around the axis, and can be equipped with a stepper motor to accurately control the rotation of the electromagnet. The rotation angle can be set arbitrarily, and the forward and reverse rotation and travel time can be controlled programmably. The controller angle resolution accuracy is 0.1 degrees, the mechanical step angle accuracy is 0.1 degrees, and the repeat positioning accuracy is 0.5 degrees.

넶274 ¥ 0.00

Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
