Probe Station

The magnetic field probe station is mainly used for testing the electrical and magnetic characteristics of semiconductor materials, micro-nano devices, magnetic materials, spintronic devices and related technical fields. It can provide a magnetic field or variable temperature environment, and perform high-precision DC/RF measurements.

The company's products design and produce various magnetic field probe stations with strong stability, diverse functions, and upgradeable expansion. They are suitable for experimental research and production in universities, research institutes, and the semiconductor industry.

넳 넲
Item Model Parameter

One-dimensional in-plane magnetic field probe station

 DX1PS1 ▹ In-plane magnetic field: maximum 0.5T@3cm magnetic pole spacing; 1T@1.5cm magnetic pole spacing;
▹ Equipped with bipolar magnetic field power supply and magnetic field control software;
▹ DC probe base and 2 pairs of probes, or high-frequency probe base and 1 pair of probes, the probe base can move in three dimensions;
▹ 4-dimensional high-precision translation stage (X-Y-Z-3600 rotation), 200 times stereo microscope or metallographic microscope, equipped with CCD camera.

One-dimensional vertical magnetic field probe station

 DX1PS2 ▹ Vertical magnetic field: up to 1.2 T;
▹ Equipped with bipolar magnetic field power supply and magnetic field control software;
▹ DC probe base and 2 pairs of probes, or high-frequency probe base and 1 pair of probes, the probe base can move in three dimensions;
▹ 4-dimensional high-precision translation stage (X-Y-Z-9O0 rotation), 200 times metallurgical microscope, equipped with a CCD camera.

X-Y Two-dimensional magnetic field Probe station

 DX2PS1 ▹ Two-dimensional vector magnetic field in the X-Y plane: the maximum magnetic field strength is 0.4T@2cm magnetic pole spacing; 0.6T@1cm magnetic pole spacing; 0.8T@0.6cm magnetic pole spacing;
▹ Equipped with bipolar magnetic field power supply and magnetic field control software, the fastest magnetic field scanning speed is 5 Hz;
▹ DC probe base and 2 pairs of probes, or high-frequency probe base and 1 pair of probes, the probe base can move in three dimensions;
▹ 4-dimensional high-precision translation stage (X-Y-Z-3600 rotation), 200 times metallographic microscope or stereo microscope, equipped with CCD camera.

X-Z Two-dimensional magnetic field Probe station

 DX2PS2 ▹ X-Z plane two-dimensional vector magnetic field (in-plane magnetic field + vertical magnetic field).
▹ In-plane magnetic field strength: maximum 0.4T@2cm pole spacing; 0.6T@1cm pole spacing;
▹ Vertical magnetic field: max 0.6 T;
▹ Equipped with bipolar magnetic field power supply and magnetic field control software, the fastest magnetic field scanning speed is 5Hz;
▹ DC probe base and 2 pairs of probes, or high-frequency probe base and 1 pair of probes, the probe base can move in three dimensions;
▹ 4-dimensional high-precision translation stage (X-Y-Z movement and 90° rotation), 200 times metallurgical microscope, equipped with a CCD camera.

Three-dimensional magnetic field Probe station

 DX3PS ▹ X-Y-Z three-dimensional vector magnetic field, the maximum magnetic field strength in any direction is 0.5 T;
▹ Equipped with bipolar magnetic field power supply and magnetic field control software, the fastest magnetic field scanning speed is 5 Hz;
▹ DC probe base and 2 pairs of probes, or high-frequency probe base and 1 pair of probes, the probe base can move in three dimensions;
▹ 3-dimensional high-precision translation stage (X-Y-Z movement), 200 times metallographic microscope, equipped with a CCD camera.

Parameters of magnetic field probe station

Home > System Accessories > Probe Station > Product Introduction

Cryogenic Probe Station
The Cryogenic Probe Station (optional: high temperature, low temperature, vacuum, magnetic field) is a high-precision experimental platform that is mainly used for testing the electrical and magnetic characteristics of semiconductor materials, micro-nano devices, magnetic materials, spintronic devices and related technical fields.
¥ 0.00
Three-dimensional Magnetic Field Probe Station
Magnetic field probe stations are widely used in the fields of the semiconductor industry, MEMS, superconductivity, electronics, ferroelectronics, physics, materials science and biomedicine.
¥ 0.00
One-dimensional in-plane Magnetic Field Probe Station
▹ One-dimensional magnetic field probe station, providing in-plane magnetic field, the uniformity of magnetic field is ±1%@φ2 mm;
▹ Real-time monitoring and feedback of magnetic field strength, the monitoring accuracy is better than 1%, and the magnetic field resolution is better than 0.02mT;
¥ 0.00

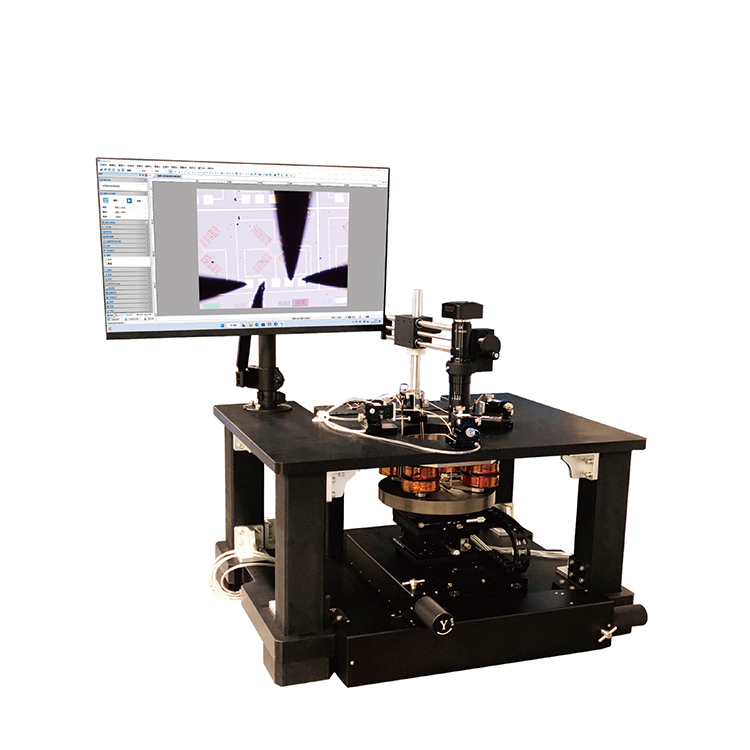

Wafer Level Automatic in-plane Magnetic Field Probe Station
In-plane magnetic field probe station, with universal design except for magnet, magnetic field uniformity ±1%@φ1 mm;
Real-time monitoring and feedback of magnetic field strength, the monitoring accuracy is better than 1%, and the magnetic field resolution is better than 0.02 mT;
¥ 0.00
Two-dimensional Magnetic Field Probe Station
Two-dimensional magnetic field probe station, including two sets of magnets, can provide vertical and in-plane magnetic fields at the same time, and the magnetic field uniformity is ±1%@∅1mm;
Real-time monitoring and feedback of magnetic field strength, the monitoring accuracy is better than 1%, and the magnetic field resolution is better than 0.02mT;
¥ 0.00
Wafer-level Automatic Vertical Magnetic Field Probe Station
Vertical magnetic field probe station, except for the magnet, the structure is universally designed, and the magnetic field uniformity is ±1%@φ1 mm;
Real-time monitoring and feedback of magnetic field strength, the monitoring accuracy is better than 1%, and the magnetic field resolution is better than 0.02 mT;
¥ 0.00
One-dimensional Vertical Magnetic Field Probe Station
One-dimensional magnetic field probe station, providing vertical magnetic field, the uniformity of magnetic field is ±1%@d2mm;
Real-time monitoring and feedback of magnetic field strength, the monitoring accuracy is better than 1%, and the magnetic field resolution is better than 0.02mT;
¥ 0.00
넳 넲

Customization is available, please let us know your requirements, and we will design a professional plan for you. Thank you!
